Mode selection

The mode selection button controls the direction of the air flow through the ventilation system.

OCV041301L

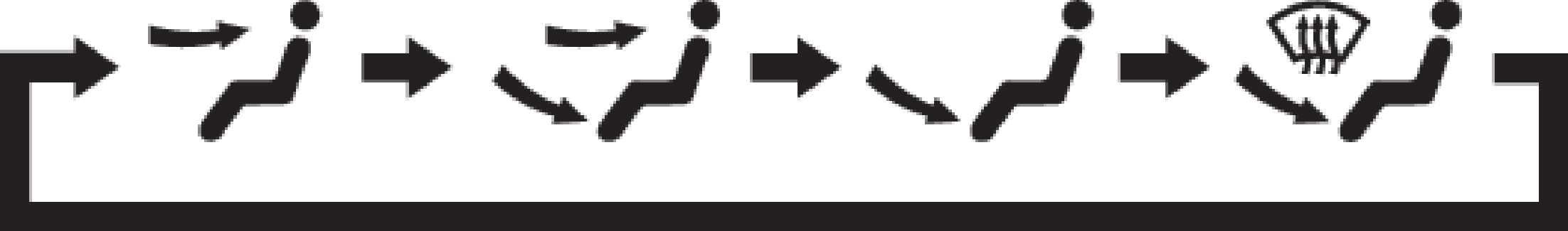

The air flow outlet ports are switched in the following sequence:

WKH-130_DL3a

Face-Level (B, D, H, G)

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, C, D, E, F, H, G)

Air flow is directed towards the face and the floor.

Floor-Level (A, C, D, E, F, H)

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters and side air vents.

Floor/Defrost-Level (A, C, D, E, F, H)

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters and side air vents.

Defrost-Level (A, D)

Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters and side air vents.

Instrument panel vents

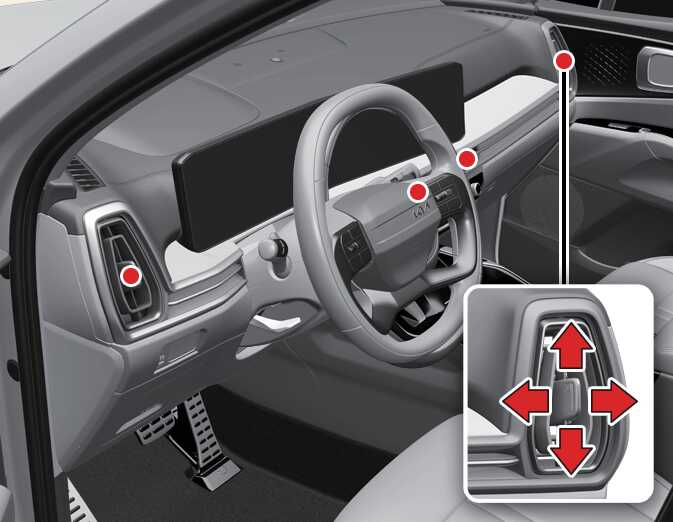

Figure 1. Front
OMQ4035303

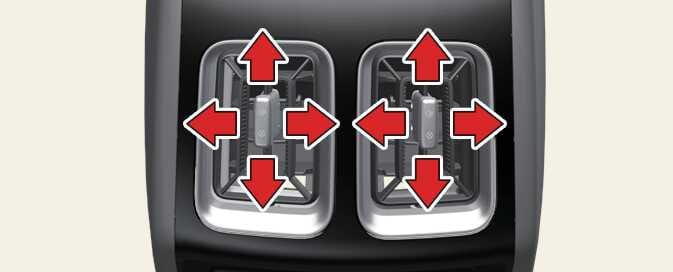

Figure 2. Center
OMQ4033304

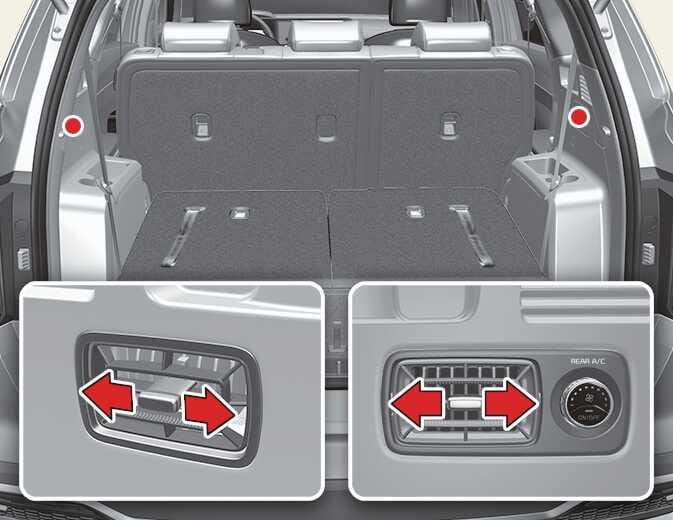

Figure 3. Rear
OMQ4033305_2

You can adjust the direction of air delivered from these vents using the vent control levers as shown.
