Heating and air conditioning manually
The heating and cooling system can be controlled manually by pressing buttons or turning knob(s) other than the AUTO button.
The system works sequentially according to the order of buttons or knob(s) selected.
-
Start the vehicle.
-
Set the mode-selection buttons as desired. To improve the effectiveness of heating and cooling:
-
Heating: (
)
-
Cooling: (
)
-
-
Set the temperature control to the desired temperature level.
-
Set the air intake control to the position for outside (fresh) air if required.
-
Set the position of the fan speed control so that it operates at the desired speed.
-
If desired, turn the air conditioning ON with the temperature set high in order to dehumidify the air before it enters the cabin.
If the windshield fogs up, select the Front Defrost (
) mode.
Press the AUTO button in order to convert to full automatic control of the system.
|

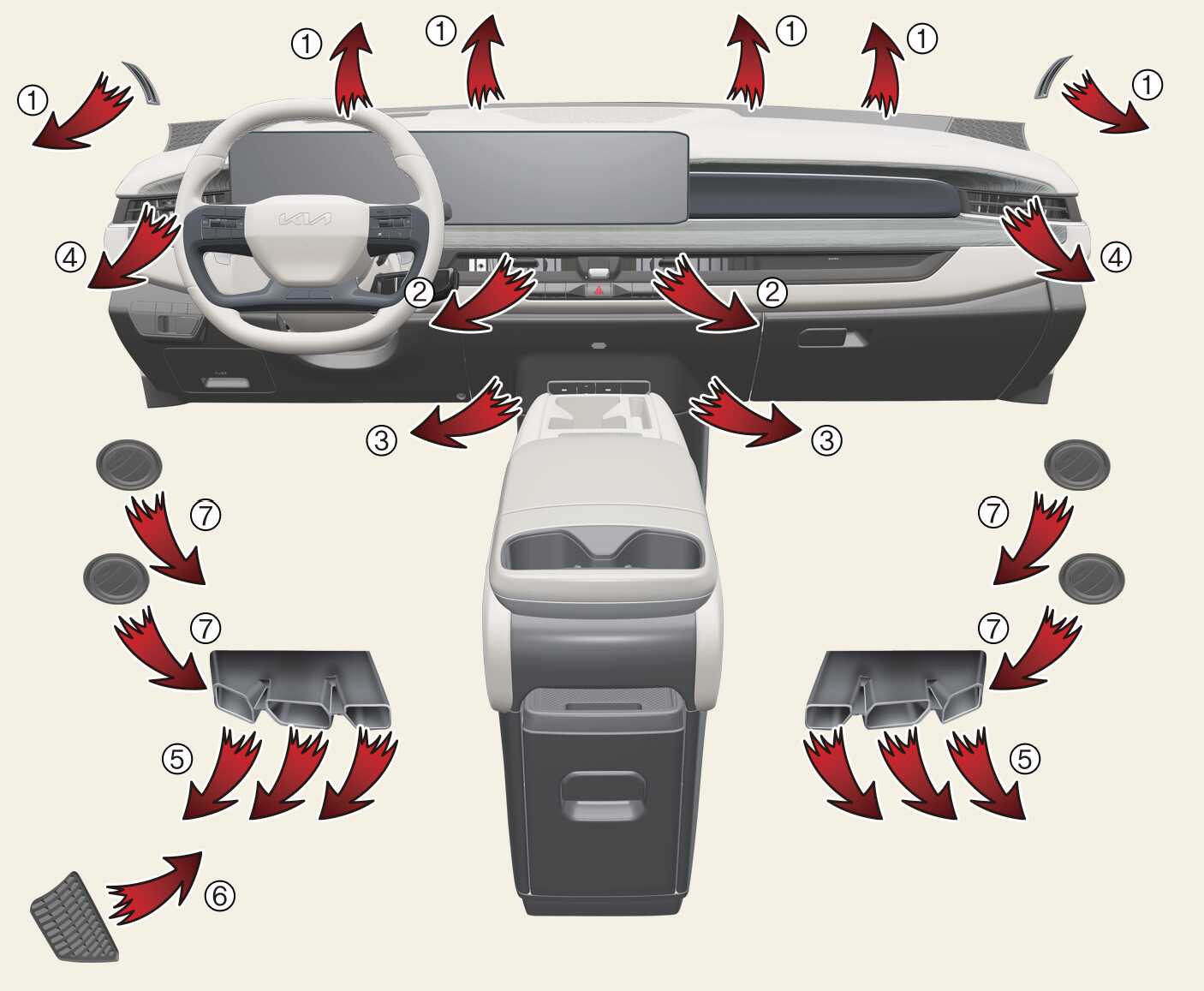

Mode |
Operation |
Air flow |
|
|---|---|---|---|
|
Front seats |
Rear seats (2nd/3rd) |
||
|
|
Air flow is directed toward the upper body and face. |
2, 4 |
7 |
|
|
Air flow is directed towards the face and the floor. |
2, 3, 4, 5 |
6. 7 |
|
|
Most of the air flow is directed to the floor, with a small amount of air directed to the windshield, side-window defrosters, and side air vents. |
1, 3, 4, 5 |
6 |
|
|
Most of the air flow is directed to the floor and the windshield, with a small amount directed to the side-window defrosters and side air vents. |
1, 3, 4, 5 |
- |
|
|
Most of the air flow is directed to the windshield, with a small amount of air directed to the side-window defrosters and side air vents. |
1, 4 |
- |
