Controlling heating and air conditioning automatically

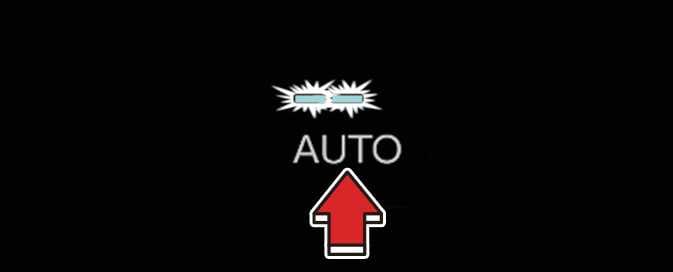

Figure 1. Front seats (Climate control display)
OMV033311N

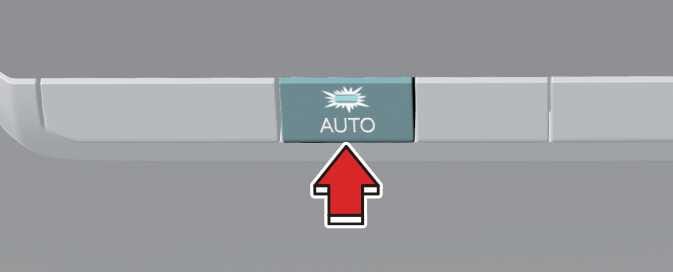

Figure 2. Rear seats
OMV033312

  1. Set the desired temperature.

  2. Press the AUTO button to control:

    • Mode

    • Fan speed

    • Air intake

    • Air conditioning

    Level

    Indicator

    LCD Display

    Air flow

    High
    OMV033323
    OMV033320

    2~8

    Medium
    OMV033322
    OMV033318

    1~6

    Low
    OMV033321
    OMV033316

    1~4

    • Set the temperature with the temperature control button.

    • The heating and air conditioning button for the rear seat adjusts the function 「ON」 when the indicator lamp is turned on, or the function 「OFF」 when the indicator lamp is turned off.
