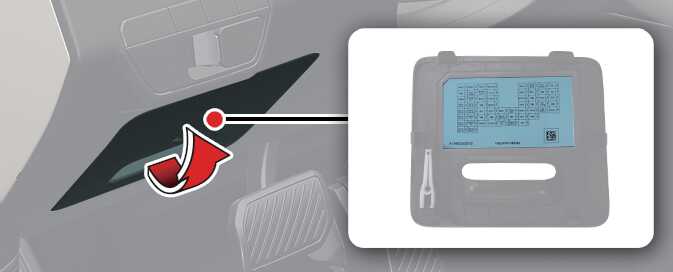

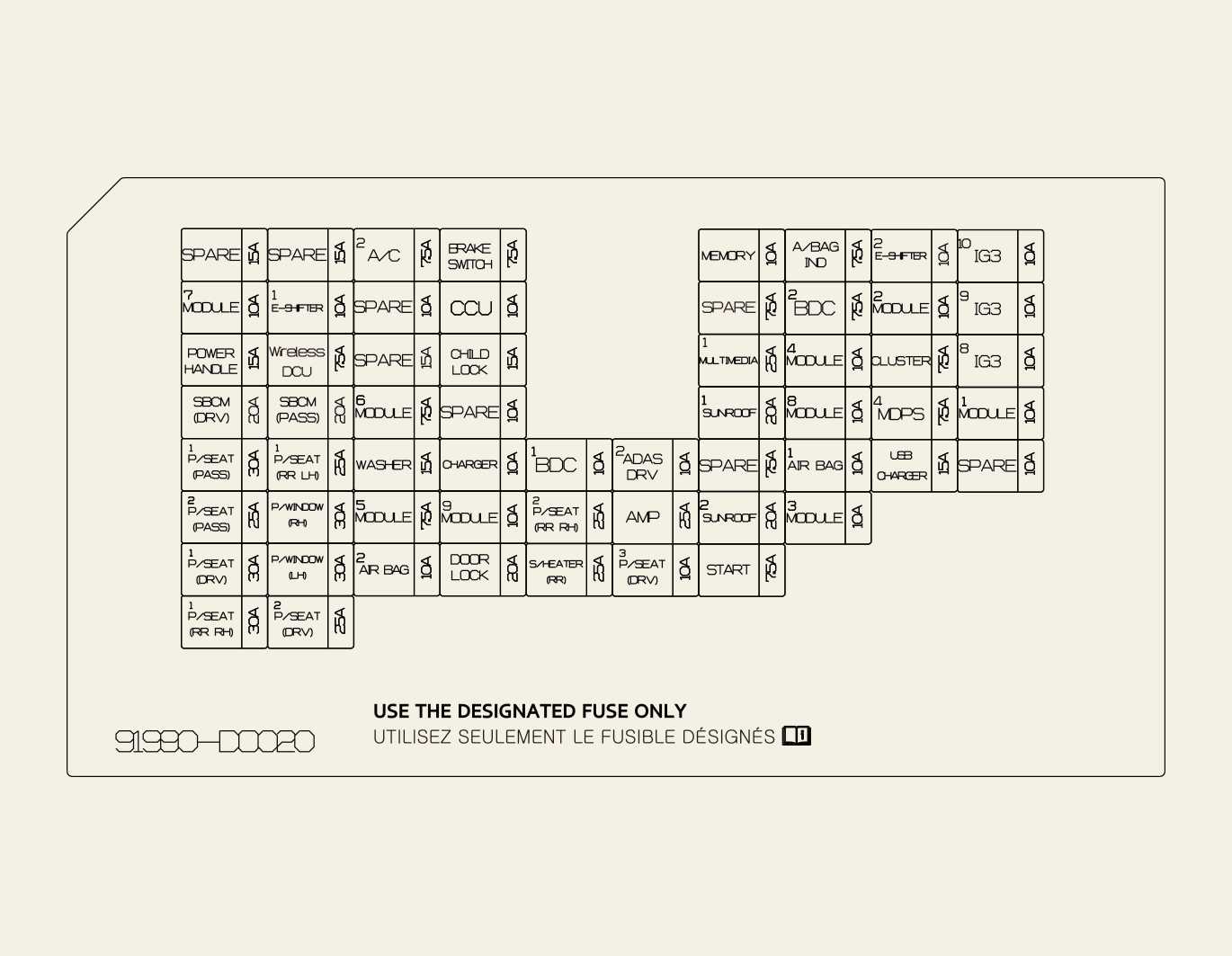

SPARE

15A

Not Used

SPARE

15A

Not Used

A/C 2

7.5A

DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control

BRAKE SWITCH

7.5A

BDC (Body Domain Controller), Stop Lamp Switch

MEMORY 1

10A

DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control,ADAS Unit (Parking),BDC (Body Domain Controller : Parking Distance Warning Power),Mood Lamp Unit, Instrument panel Mood Lamp LH/CTR/RH, Console Mood Lamp (Upper/Lower), Driver/Passenger Door Mood Lamp, Rear Door Mood Lamp LH/RH,ADP_CONTROLLER (Acoustic Design Platform), CDCU (Chassis Domain Control Unit)

A/BAG IND

7.5A

Overhead Console Lamp

E-SHIFTER 2

10A

SCU (Shift-by-wire Control Unit), Electronic ATM (Automatic Transmission) Shift Dial

IG3 10

10A

V2L_SIG (Vehicle to Load signal), ICCU (Integrated Charging Control Unit), VCMS (Vehicle Charge Management System), CCU (Central Communication Unit)

MODULE 7

10A

PTGM (Power Tail Gate Module), Rear Junciton Block (Rear Blower Relay), Driver/Passenger Power Seat Module,2nd Left/Right Power Seat Module, 3rd Power Seat Control Module, Power Window Switch, Rain Sensor,CDU (Climate Display Unit), SCM (Steering Column Module),Front View Camera,ICC_UNIT (In Cabin Cam_UNIT),M_F_SW (Multi Function Switch), OBD (On Board Diagnostics)

E-SHIFTER 1

10A

Electronic ATM (Automatic Transmission) Shift Dial

SPARE

10A

Not Used

CCU

10A

CCU (Central Communication Unit)

MEMORY 2

7.5A

Front Console USB Charger #1/#2, Instrument Cluster, Head-Up Display, Front Console (FPM Finger Print Module), Front Console (WPC Wireless Power Charger)

BDC 2

7.5A

BDC (Body Domain Controller)

MODULE 2

10A

CCU (Central Communication Unit), DCU (Data Connectivity Unit), RGW (Redundant GateWay),Stop Lamp Switch

IG3 9

10A

DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control, CDU (Climate Display Unit), PTC (Positive Temperature Coefficient) Heater, In-car Temperature Sensor, Rear_HVAC_EXTN,Passenger Power Seat Control Module,Rear Seat Warmer Control Module,3rd Power Seat Control Module,, Driver Seat Switch (Heater/Ventilation/Integrated memory system), Passenger Seat Switch (Heater/Ventilation), Rear Seat Switch (Heater/Ventilation)

POWER HANDLE

15A

SCM (Steering Column Module)

Wireless DCU

7.5A

DCU (Data Connectivity Unit)

SPARE

15A

Not Used

CHILD LOCK

15A

Rear LH/RH Door Power Child Lock/Unlock Motor

MULTIMEDIA 1

25A

CCNC (Connected Car Navigation Cockpit)

MODULE4

10A

CCNC (Connected Car Navigation Cockpit), ICC_UNIT (In Cabin Cam_UNIT), I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), CDU (Climate Display Unit), Front Console (FPM Finger Print Module), Front Console (WPC Wireless Power Charger), OBD (On Board Diagnostics), ADP_CONTROLLER (Acoustic Design Processor), Driver Power Seat Switch, Driver Power Seat Module,AMP (Amplifier)

CLUSTER

7.5A

Instrument Cluster, Head-Up Display

IG3 8

10A

CCNC (Connected Car Navigation Cockpit), Charging Display Lamp, RGW (Redundant GateWay)

SBCM DRV

20A

Driver Side Body zone Control Module Driver

SBCM PASS

20A

Passenger Side Body zone Control Module

MODULE 6

7.5A

P/R Junciton Block (Lidar Washer LH/RH Relay), Head Lamp Module LH/RH

SPARE

10A

Not Used

SUNROOF 1

20A

Sunroof Motor Front

MODULE 8

10A

Multi Function Switch, Driver Power Window Switch Module

MDPS 4

7.5A

MDPS (Motor Driven Power Steering)

MODULE 1

10A

AMP (Amplifier), ADP_CONTROLLER (Acoustic Design Processor), P/R Junciton Block (ACC Relay), BDC (Body Domain Controller),DCU (Data Connectivity Unit), CCU (Central Communication Unit), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch,ADAS Unit (Parking),Front Console USB Charge

P/SEAT PASS 1

30A

Passenger Power Seat Switch, Passenger Power Seat Module

P/SEAT RR LH 1

25A

Rear Power Seat Switch LH, Rear Power Seat Module LH

WASHER

15A

Multi Function Switch, Integrated Circuit Module (Washer Front/Rear Relay)

CHARGER

10A

Integrated Circuit Module (Charger Door Lock/Unlock Relay), ICCU (Integrated Charging Control Unit), VCMS (Vehicle Charge Management System)

BDC1

10A

BDC (Body Domain Controller), Ultra WideBand & Bluetooth Low Energy MASTER/SLAVE, Ultra WideBand Frunk, Ultra WideBand Front LH/RH, Ultra WideBand Rear LH/RH

ADAS DRV 2

10A

ADAS_VP (Advanced Driver Assistance Systems_Vision Processing), HDM_ECU (High Definition Map)

SPARE

7.5A

Not Used

AIR BAG1

10A

ACU (Airbag Control Unit), ODS (Occupant Detection System)

USB CHARGER

15A

Driver/Passenger Seat USB Charger, Luggage USB Charge Connector Left Handle side/Right Handle side

SPARE

10A

Not Used

P/SEAT PASS 2

25A

Passenger Power Seat Switch, Passenger Power Seat Module

P/WINDOW RH

30A

Passenger Safety Power Window Module, Rear LH Safety Power Window Module

MODULE 5

7.5A

BDC (Body Domain Controller)

MODULE 9

10A

Driver/Passenger Outside Handle, Multi Function Switch, Driver/Passenger Digital Side Mirror Monitor

P/SEAT RR RH 2

25A

Rear RH Relaxion Power Seat

AMP

25A

AMP (Amplifier)

SUNROOF 2

20A

Sunroof Motor Rear

MODULE 3

10A

Front View Camera, ADAS Driving ECU, Multi Function Switch, HDM_ECU (High Definition Map),ADAS Unit (Parking),ADAS_VP (Advanced Driver Assistance Systems_Vision Processing), SCM (Steering Column Module), Driver/Passenger Digital Side Mirror Monitor, Front/Rear Inverter,Front/Rear Corner Radar LH/RH

P/SEAT DRV 1

30A

Driver Power Seat Switch, Driver Power Seat Module

P/WINDOW LH

30A

Driver Safety Power Window Module, Rear RH Safety Power Window Module

AIR BAG 2

10A

ACU (Airbag Control Unit)

DOOR LOCK

20A

Driver/Passenger Door Latch Motor, Rear Door Latch Motor

S/HEATER RR

25A

Rear Seat Warmer Control Module

P/SEAT DRV 3

10A

Driver Power Seat Switch, Driver Power Seat Module

START

7.5A

VCU (Vehicle Control Unit), BDC (Body Domain Controller)

P/SEAT RR RH 1

30A

Rear RH Power Seat Switch, Rear RH Power Seat Module

P/SEAT DRV 2

25A

Driver Power Seat Switch, Driver Power Seat Module
