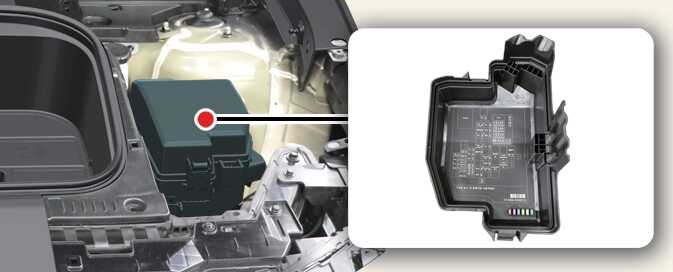

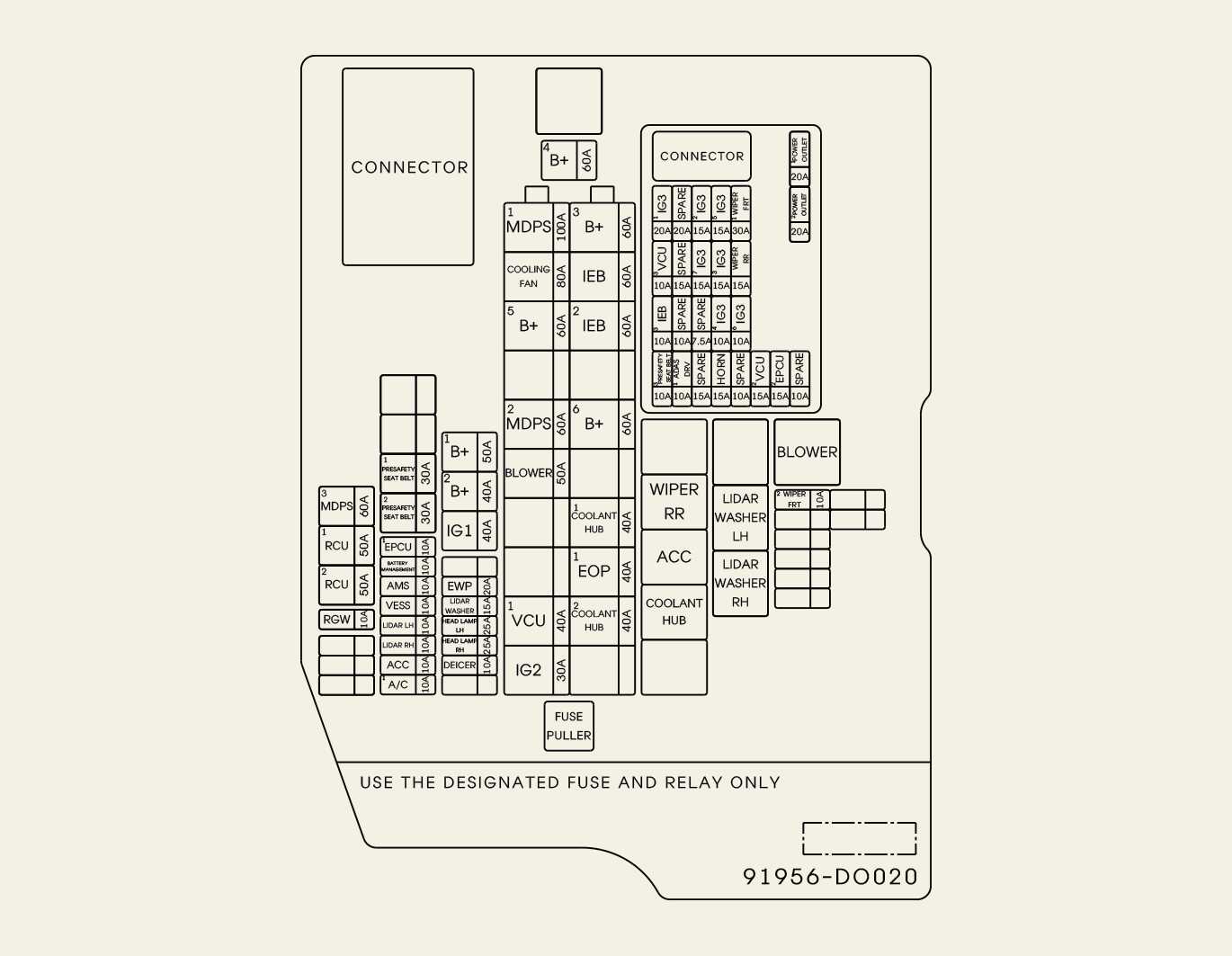

Motor compartment fuse panel
Circuit (P/R Junction Block)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
MDPS1 |
100A |
MDPS Unit(Motor Driven Power Steering Unit) |
|
COOLING FAN |
80A |
Cooling Fan Motor |
|
|
B+5 |
60A |
PDC Junction Block (Fuse : AMP, ADAS DRV2, CHARGER, MODULE9, P/SEAT DRV3, AIR BAG2, SUNROOF1, SUNROOF2) |
|
|
MDPS2 |
60A |
MDPS Unit(Motor Driven Power Steering Unit) |
|
|
BLOWER |
50A |
P/R Junciton Block (Blower Relay) |
|
|
VCU1 |
40A |
VCU(Vehicle Control Unit) |
|
|
IG2 |
30A |
PCB Block (IG2 Relay) |
|
|
MULTIFUSE-2 |
B+3 |
60A |
PDC Junction Block (Fuse : P/SEAT DRV1, P/SEAT DRV2, P/SEAT PASS1, P/SEAT PASS2, P/SEAT RR LH, P/SEAT RR RH, P/WINDOW LH, P/WINDOW RH, SBCM DRV, SBCM PASS, Wireless DCU, E-SHIFTER1, POWER HANDLE, MODULE7) |
|
IEB1 |
60A |
IEB UNIT(Integrated Electronic Brake Module) |
|
|
IEB2 |
60A |
IEB UNIT(Integrated Electronic Brake Module) |
|
|
B+6 |
60A |
PCB Block (IG3 Main Relay, Fuse : EPCU2, VCU2, HORN, B/ALARM) |
|
|
COOLANT HUB1 |
40A |
Coolant Hub Driver Unit |
|
|
EOP1 |
40A |
FrontElectric Oil Pump |
|
|
COOLANT HUB2 |
40A |
Coolant Hub Driver Unit |
|
|
FUSE |
B+1 |
50A |
PDC Junction Block (IPS1, IPS4, IPS5, IPS6, IPS7) |
|
B+2 |
40A |
PDC Junction Block (IPS11, IPS12) |
|
|
B+4 |
60A |
PDC Junction Block (Long Term Latch Relay, IPS13, Fuse : MULTIMEDIA1, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, CCU, S/HEATER RR, P/.SEAT RR RH, DR LOCK, TAILGATE OPEN) |
|
|
PRESAFETY SEAT BELT1 |
30A |
PSB(PRESAFETY SEAT BELT) |
|
|
PRESAFETY SEAT BELT2 |
30A |
PSB(PRESAFETY SEAT BELT) |
|
|
IG1 |
40A |
PCB Block (IG2 Relay) |
|
|
LIDAR WASHER |
15A |
P/R Junciton Block (Lidar Washer Relay) |
|
|
EPCU1 |
10A |
Rear Inverter |
|
|
AMS |
10A |
12V Battery Sensor |
|
|
VESS |
10A |
Virtual Engine Sound System |
|
|
ACC |
10A |
P/R Junciton Block (ACC Relay) |
|
|
LIDAR LH |
10A |
Front Corner Lidar LH |
|
|
DEICER |
10A |
Rear Junciton Block (Deicer Relay) |
|
|
EWP |
20A |
Electronic Water Pump |
|
|
A/C1 |
10A |
Air Conditioning |
|
|
HEAD LAMP RH |
25A |
Head Lamp Module RH |
|
|
LIDAR RH |
10A |
Front Corner Lidar RH |
|
|
BATTERY MANAGEMENT |
10A |
BMU |
|
|
HEAD LAMP LH |
25A |
Head Lamp Module LH |
|
|
WIPER FRT2 |
10A |
BDC (Body Domain Controller) |
|
|
RCU1 |
50A |
Redundancy Control Unit |
|
|
RCU2 |
50A |
Redundancy Control Unit |
|
|
MDPS3 |
60A |
MDPS Unit(Motor Driven Power Steering Unit) |
|
|
RGW |
10A |
Redundant GateWay |
|
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
EPCU2 |
15A |
Front Inverter |
|
VCU2 |
15A |
VCU(Vehicle Control Unit) |
|
|
IG3 1 |
20A |
PDC Junction Block (IG3_8, IG3_9, IG3_10) |
|
|
IG3 2 |
15A |
SCU (Shift-by-wire Control Unit),Front Inverter |
|
|
IG3 3 |
15A |
Electronic Water Pump |
|
|
IG3 4 |
10A |
Cooling Fan Motor, Front Electric Oil Pump, Rear Electric Oil Pump |
|
|
IG3 5 |
15A |
Electric Compressor, 3way Valve, P/R Junciton Block (Coolant Hub Driver Unit) |
|
|
IG3 6 |
10A |
VCU(Vehicle Control Unit) |
|
|
IG3 7 |
15A |
Rear inverter, BMU |
|
|
HORN |
15A |
HORN |
|
|
B/ALARM HORN |
15A |
Burglar alarm Horn |
|
|
WIPER FRT1 |
30A |
PCB Block (Wiper Main Relay) |
|
|
WIPER RR |
15A |
P/R Junciton Block (Rear Wiper Relay) |
|
|
POWER OUTLET1 |
20A |
Front Power Outlet (Console) |
|
|
POWER OUTLET2 |
20A |
Rear Power Outlet (Luggage Side LH) |
|
|
IEB3 |
10A |
IEB UNIT(Integrated Electronic Brake Module) |
|
|
VCU3 |
10A |
VCU(Vehicle Control Unit) |
|
|
ADAS DRV1 |
10A |
ADAS Driving ECU |
|
|
PRESAFETY SEAT BELT3 |
10A |
PSB(PRESAFETY SEAT BELT) |
Relay
|
Relay Name |
TYPE |
|---|---|
|
Blower Relay |
MINI |
|
Wiper Rear Relay |
MICRO |
|
Coolant Hub Relay |
MICRO |
|
Lidar Washer LH |
MICRO |
|
Lidar Washer RH |
MICRO |
|
ACC |
MICRO |

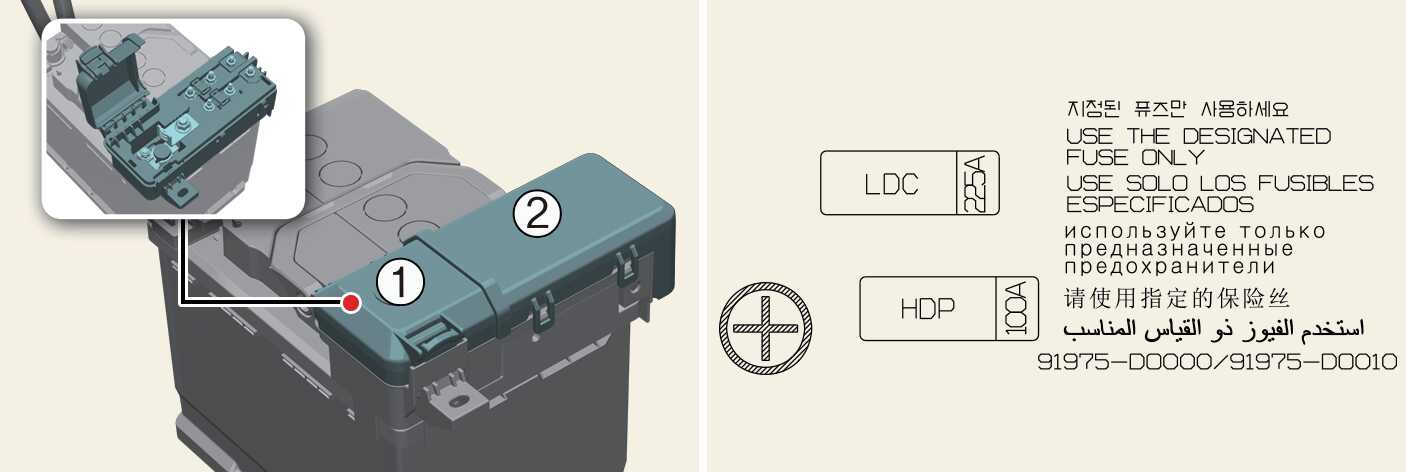

Battery junction block fuse panel

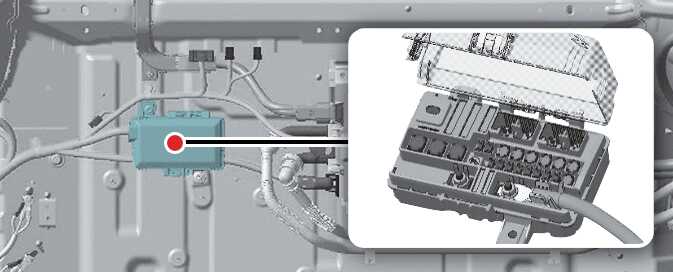

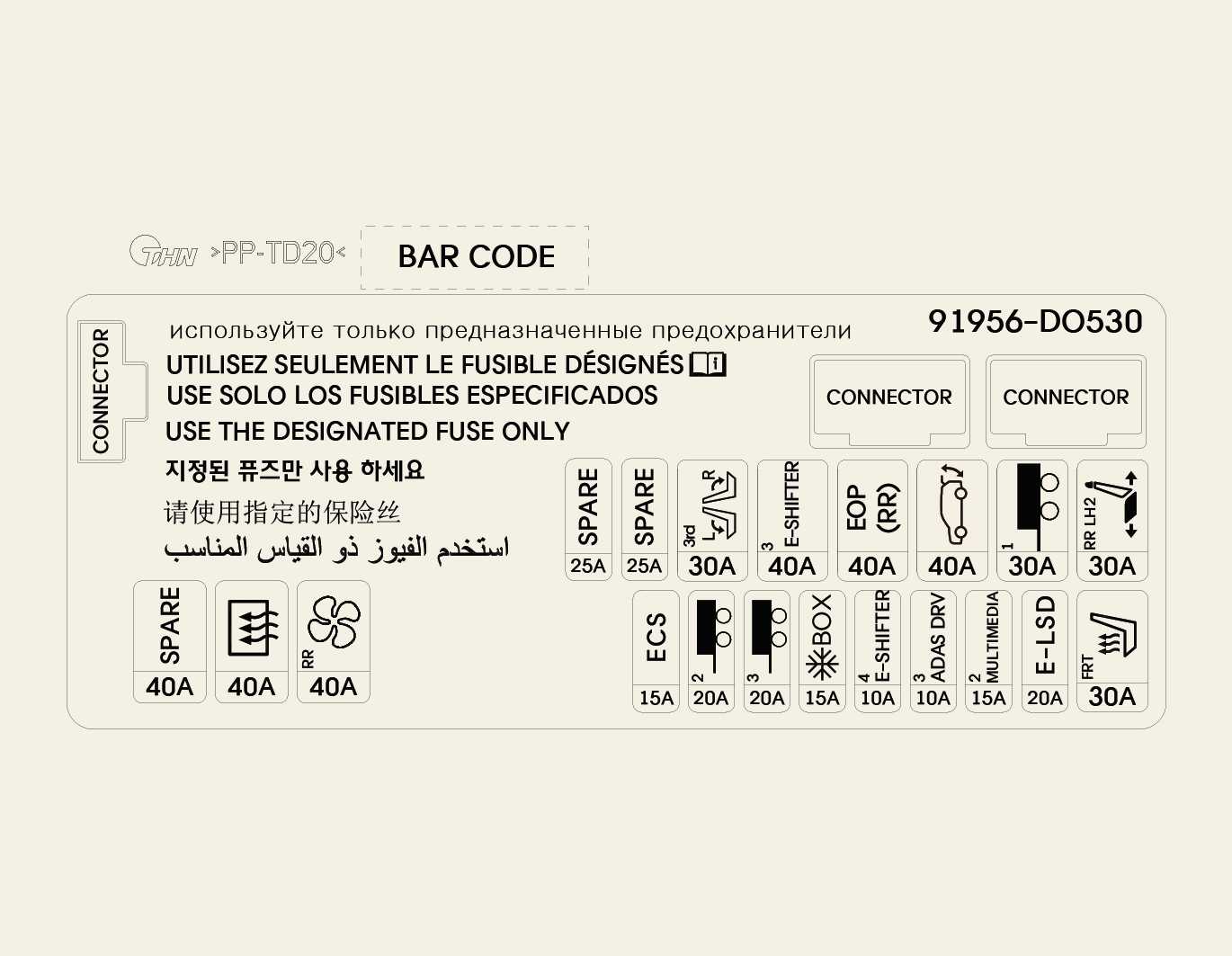

Rear junction block fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
SPARE |
40A |
Not Used |
|
REAR HEATED |
40A |
Rear Heated |
|
BLOWER (RR) |
40A |
Rear Blower |
|
SPARE |
25A |
Not Used |
|
SPARE |
25A |
Not Used |
|
3RD ROW SEAT FOLDING |
30A |
3rd Power Seat Control Module |
|
E-SHIFTER3 |
40A |
SCU (Shift-by-wire Control Unit) |
|
EOP (RR) |
40A |
Rear Electric Oil Pump |
|
POWER TAILGATE |
40A |
PTGM (Power Tail Gate Module) |
|
TRAILER1 |
30A |
TRAILER |
|
P/SEAT (RR LH) 2 |
30A |
Rear LH Power Seat Switch, Rear LH Power Seat Module |
|
ECS |
15A |
ECS (Electronically Controlled Suspension) |
|
TRAILER2 |
20A |
TRAILER |
|
TRAILER3 |
20A |
TRAILER |
|
SPARE |
15A |
Not Used |
|
E-SHIFTER4 |
10A |
SCU (Shift-by-wire Control Unit) |
|
ADAS DRV3 |
10A |
ADAS Driving ECU |
|
SPARE |
15A |
Not Used |
|
E-LSD |
20A |
ELSD (Electronic Limited-Slip Differential) |
|
S/HEATER (FRT) |
30A |
Driver/Passenger Seat Warmer Control Module |
