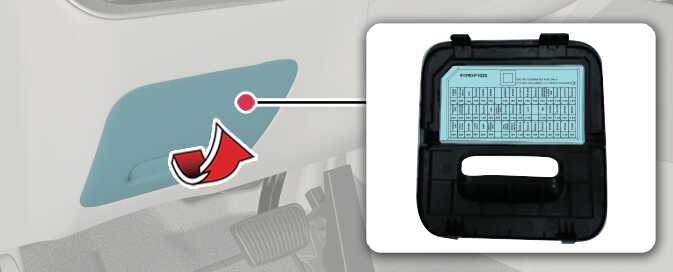

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

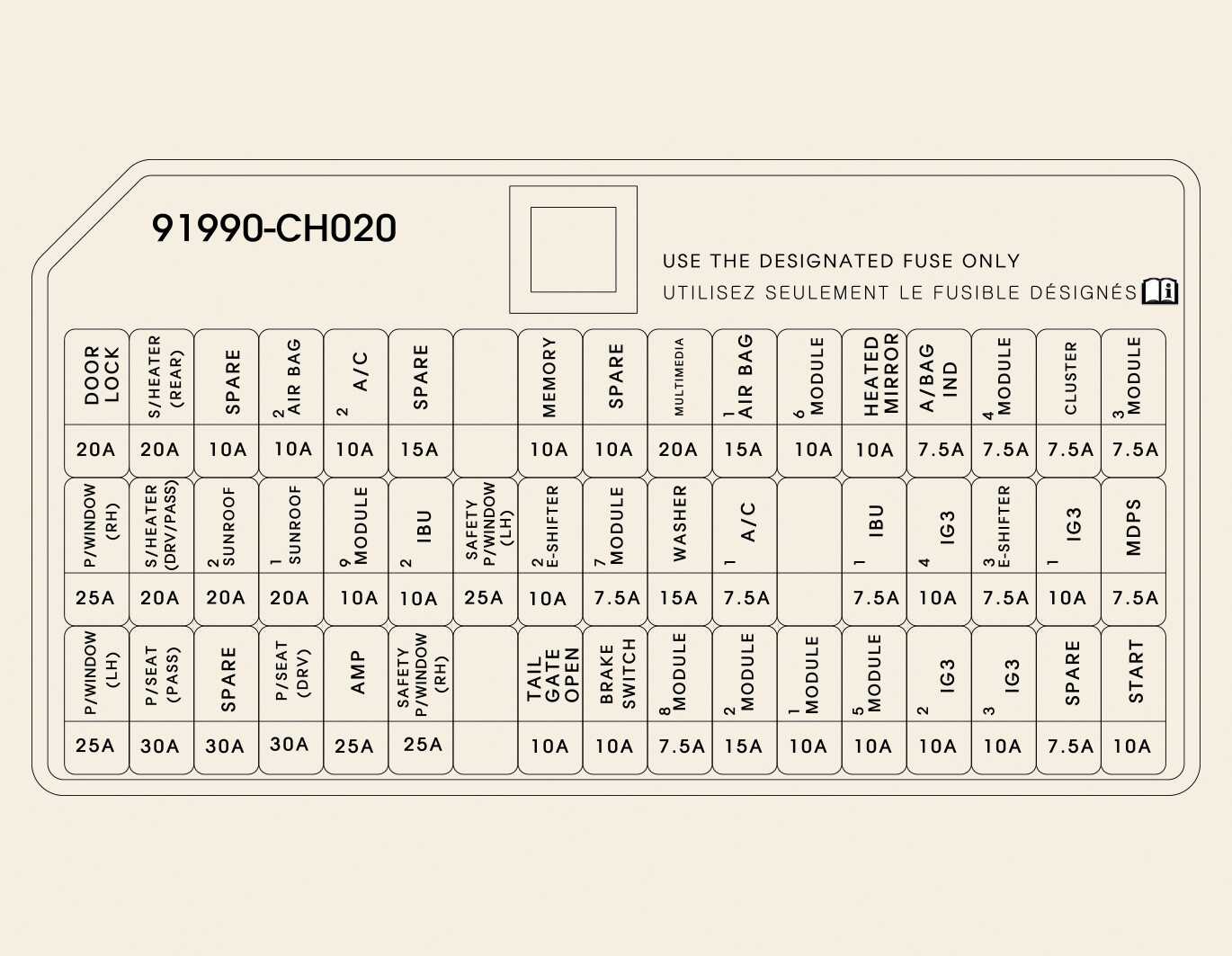

ICU Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
DOOR LOCK |
20A |
Center Door Locknlock Relay |
|
P/WINDOW RH |
25A |
Power Window Main Switch, Passenger Powerw Switch |
|
P/WINDOW LH |
25A |
Power Window Main Switch |
|
S/HEATER (REAR) |
20A |
Rear Seat Warmer Control Module |
|
S/HEATER (DRV/PASS) |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
SUNROOF2 |
20A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF1 |
20A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
10A |
Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Tailgate Unit |
|
AMP (Amplifier) |
25A |
AMP (Amplifier) |
|
IBU (Integrated Body Control Unit)2 |
10A |
IBU (Integrated Body Control Unit), Ignition Switch |
|
P/WINDOW SAFETY RH |
25A |
Passenger Safety Power Window Module |
|
P/WINDOW SAFETY LH |
25A |
Driver Safety Power Window Module |
|
MEMORY |
10A |
Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Console Mood Lamp, Mood Lamp (Passenger), Crash Pad Switch, Integrated Parking Assist Unit |
|
TAILGATE OPEN |
10A |
Tailgate open Relay |
|
MODULE7 |
7.5A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
10A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MULTIMEDIA |
20A |
Audio (Display), Audio/Video & Navigation Head Unit |
|
WASHER |
15A |
Multifunction Switch |
|
MODULE8 |
7.5A |
Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay LH) |
|
AIRBAG1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
A/C1 |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
15A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
MODULE6 |
10A |
Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shifter Dial Indicator |
|
MODULE1 |
10A |
ADAS Parking ECU, IBU (Integrated Body Control Unit), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit, Hybrid Battery Management system |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
IBU (Integrated Body Control Unit)1 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MODULE5 |
10A |
Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror |
|
AIRBAG IND |
7.5A |
Instrument Cluster |
|
MODULE4 |
7.5A |
IBU (Integrated Body Control Unit), Front View Camera, Crash Pad Switch, ADAS Parking ECU, AWD (4 Wheel Drive) ECU (Electronic Control Unit), Head Lamp LH/RH, Rear Corner Radar LH/RH, Virtual Engine Sound System |
|
E-SHIFTER3 |
7.5A |
SCU (Shift by wire Control Unit), Electronic Auto Transmission Shifter Dial Switch |
|
CLUSTER |
7.5A |
Instrument Cluster |
|
MODULE3 |
7.5A |
Stop Lamp Switch, Overhead Console Lamp |
|
Motor Driven Power Steering *1 |
7.5A |
Motor Driven Power Steering Unit |
|
START |
10A |
Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay) |
|
A/C2 |
10A |
Ari Conditioner Control Module |
|
E-SHIFTER2 |
10A |
SCU (Shift by wire Control Unit), Console Switch |
|
IG3(1) |
10A |
Cluster, On Board Charger Unit, Air Conditioner Control Module, Air Conditioner Controller (LCD), Audio/Video & Navigation Head Unit |
|
IG3(2) |
10A |
Electronic Water Pump |
|
IG3(3) |
10A |
Hybrid Battery Management System, On Board Charger Unit |
|
IG3(4) |
10A |
SCU (Shift by wire Control Unit), Hybrid Power Control Unit |
*1: MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
