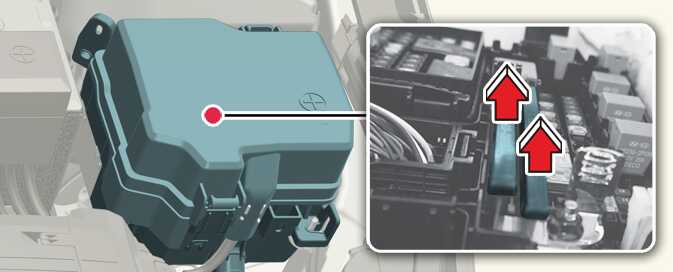

Engine compartment fuse panel

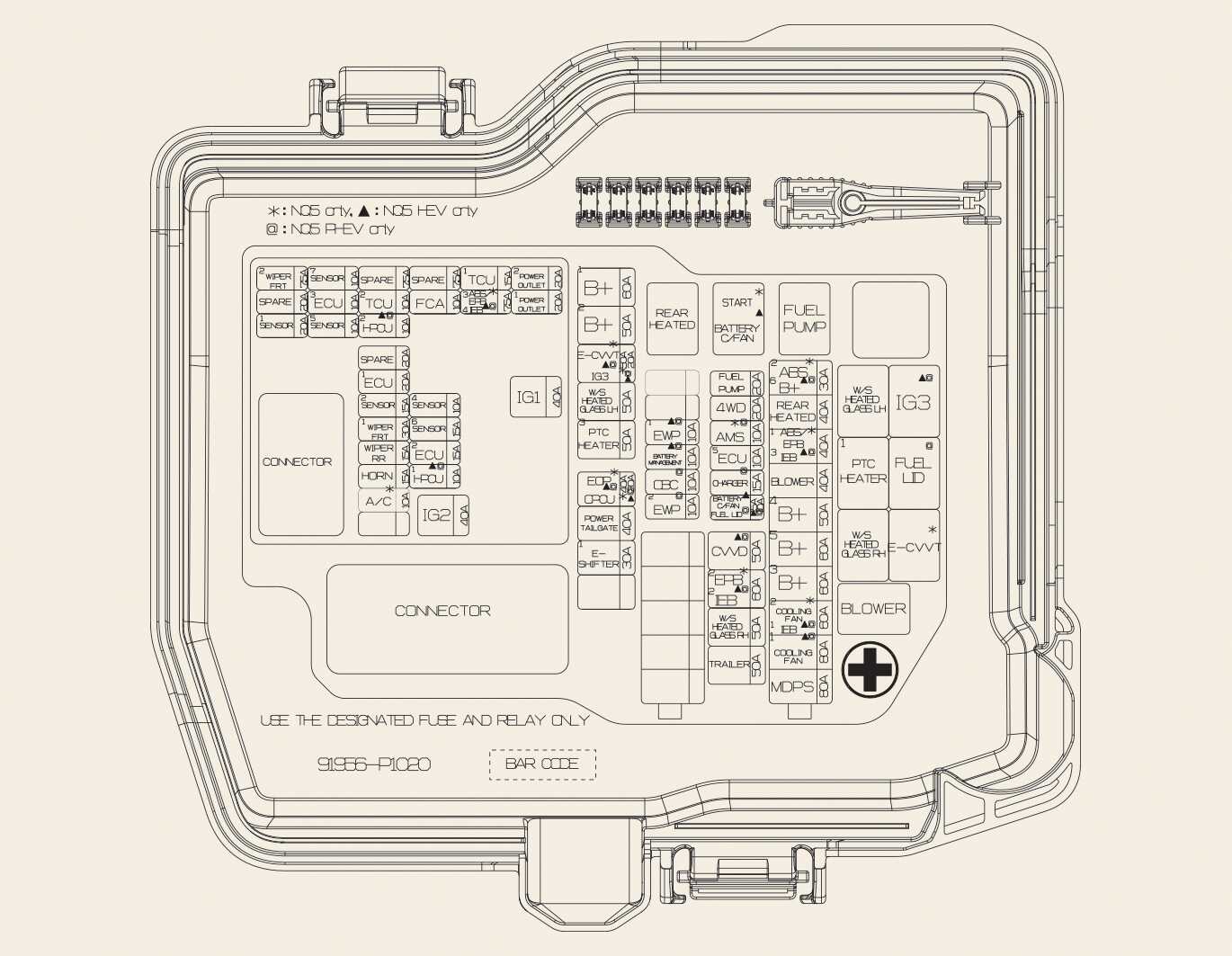

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering1 *1 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN1 |
80A |
Cooling Fan Controller |
|
|
B+3 |
60A |
ICU Junction Block (Fuse - S/HEATER (DRV/PASS), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
B+5 |
60A |
PCB Block (Fuse - IG2, IG1, HORN, B/ALARM HORN, ECU2, Engine Control Relay, Wiper Main Relay) |
|
|
B+4 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (REAR), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, Tailgate Open, BRAKE SWITCH, Long Term Load Latch Relay), Outside Mirror Folding/Unfolding Relay, A/CON2 |
|
|
BLOWER |
40A |
Blower Relay |
|
|
IEB1 |
60A |
IEB (Integrated Electronic Brake Module) |
|
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
IEB2 |
60A |
IEB (Integrated Electronic Brake Module) |
|
|
FUSE |
TRAILER1 |
50A |
Trailer Connector |
|
W/S HEATED GLASS RH |
50A |
Windshield Heated Relay RH |
|
|
ECU5 |
10A |
Powertrain Control Module |
|
|
AMS |
10A |
Battery Sensor |
|
|
AWD |
20A |
AWD ECM (Engine Control Module) |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
E-SHIFTER1 |
30A |
SCU (Shift by wire Control Unit) |
|
|
POWER LIFTGATE |
40A |
Power tailgate Unit |
|
|
PTC HEATER3 |
50A |
Fuel Filter Heating Relay |
|
|
W/S HEATED GLASS LH |
50A |
Windshield Heated Relay LH |
|
|
B+2 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
|
IG3 |
20A |
Ignition 3 |
|
|
OPCU |
20A |
Oil Pump Control Unit |
|
|
EWP1 |
10A |
Engine Electronic Water Pump |
|
|
BMS |
10A |
Battery Management System |
|
|
OBC |
10A |
On Board Charger Unit (PHEV) |
|
|
EWP2 |
10A |
Battery Electronic Water Pump (PHEV) |
|
|
BATTERY C/FAN, FUEL LID |
15A/10A |
Battery Cooling Fan (HEV 15A), Fuel Lid (PHEV 10A) |
|
|
CVVD |
50A |
Continuous Variable Valve Duration Actuator |
|
|
IEB3 |
40A |
Integrated Electric Brake Unit |
|
|
B+6 |
30A |
On Board Charger Unit (PHEV), Battery Management System, Engine Electronic Water Pump |
|
*1: MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
IG2 |
40A |
IG2 Relay |
|
IG1 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
7.5A |
Front Wiper (Low) Relay, IBU (Integrated Body Control Unit) |
|
SENSOR1 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
10A |
Engine Electronic Water Pump |
|
ECU3 |
10A |
Power train Control Module |
|
SENSOR5 |
10A |
Fuel Pump Relay |
|
TCU2 |
10A |
Not Used |
|
TCU3 |
10A |
Not Used |
|
SENSOR3 |
20A |
Not Used |
|
ECU1 |
20A |
Power train Control Module |
|
SENSOR2 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
15A |
Horn Relay |
|
FCA |
10A |
Front Radar |
|
SENSOR4 |
10A |
Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay, Oil Level Sensor |
|
SENSOR6 |
15A |
Active Purge Pump |
|
ECU2 |
15A |
Power train Control Module |
|
TCU1 |
15A |
Power train Control Module |
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
|
CHARGER |
15A |
Charger Unit (PHEV) |
|
TCU2 |
10A |
Powertrain Control Module |
|
HPCU1 |
10A |
Hybrid Power Control Unit |
|
HPCU2 |
10A |
Hybrid Power Control Unit |
|
IEB4 |
7.5A |
Integrated Electric Brake Unit |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
Rear Heated Relay |
MICRO |
|
Battery Cooling Fan |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Windshield Heated Relay LH |
MICRO |
|
PTC Heater Relay #1 |
MICRO |
|
Windshield Heated Relay RH |
MICRO |
|
Blower Relay |
MICRO |
|
Fuel Lid Relay (PHEV) |
MICRO |
|
IG3 Relay |
MICRO |
