Be sure to adjust the mirror angles before driving.

The mirrors can be adjusted remotely with the control levers or remote switch, depending on the type of mirror control installed. The mirror heads can be folded back to prevent damage in an automatic car wash or when passing through a narrow street.

If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray de-icer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.

The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors.

Adjusting the rearview mirrors:

1. Move the R or L switch (1) to select the right side mirror or the left side mirror.

2. Press a corresponding point on the mirror adjustment control (2) to position the selected mirror up, down, left or right.

3. After adjustment, put the button into neutral (center) position to prevent inadvertent adjustment.

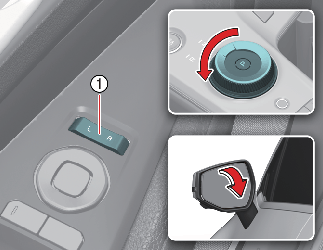

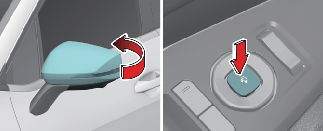

The outside rearview mirror can be folded or unfolded by pressing the switch as below.

The mirror will fold or unfold automatically as follows:

• The mirror will fold or unfold when the door is locked or unlocked by the smart key.

• The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.

• The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession. (if equipped)

When the gear is shifted to the R (Reverse) position, the outside rear view lever(s) will rotate downwards to aid with driving in reverse.

The position of the outside rearview mirror switch (1) determines whether the mirrors will move:

• Left/Right: When either the L (left) or r (Right) switch Is selected, both outside rearview mirrors will move.

• Neutral: When neither switch is selected, the outside rearview mirrors will not move.

The outside rearview mirrors will automatically revert to their original positions if any of the followings occur:

• The EV button is placed to either the OFF position.

• The gear is shifted to any position except R (Reverse).

• The remote control outside rear view mirror switch is not selected.

If you cannot see well enough with the angles provided as factory default conditions, you can readjust and store the angles of outside rearview mirrors.

The factory default angles of the right and left rearview mirrors can be set individually. To adjust the default angles:

1. Set the shift lever to P (Parking). Make sure that the vehicle is stopped and the mirrors are not working.

2. Position the lever to L (left) or R (right) depending on the mirror that you want to adjust.

3. Step on the brake pedal and shift the shift lever to R (Reverse).

4. When the downward movement of the rearview mirror is finished, adjust the mirror to the desired angle by pressing the switches, ▼, ▲, ◀, ▶.

5. Once you have the mirrors in the desired positions, shift to a gear other than R (Reverse), or change the rearview mirror selector lever to the neutral position.

6. You can adjust the rearview mirror on the other side by following the same procedures (1-5).

If you want to change the automatic control function of rearview mirrors to factory-default conditions, follow the steps below.

1. Shift the shift lever to P (Park).

2. Choose the mirror to be adjusted by positioning the lever to L (left) or R (right).

3. Step on the brake pedal and shift the shift lever to R (Reverse).

4. When the downward movement of the rear view mirror is finished, press the switch (▲) to locate the mirror in the position higher than before (P, N or D).

   (Adjust the mirror in the higher position compared to its position in the driving mode)

5. Move the gear to a position other than R (Reverse) or change the rearview mirror selector lever to the neutral position. (The default settings will be applied from the next operation)

6. You can initialize settings for the mirror on the other side by following the same procedures (1-5).
