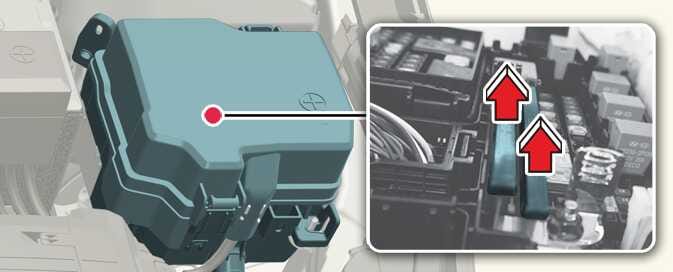

Engine compartment fuse panel
 ONQ5061059 |

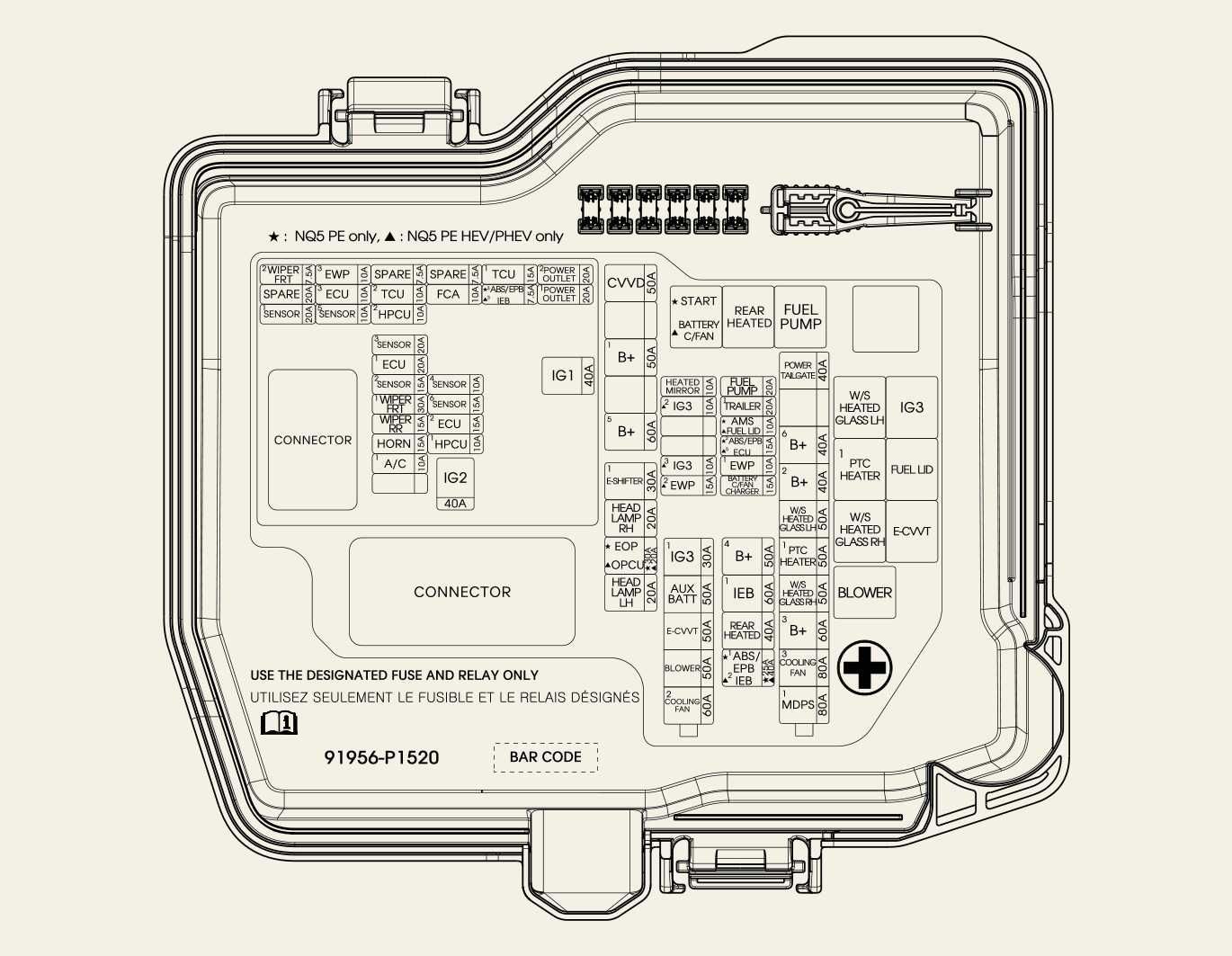

This diagram will provide you with the specific information for your vehicles.
Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering*1 1 |
80A |
Motor Driven Power Steering Unit |
|
B+3 |
60A |
PDC Junction Block (Fuse - E-SHIFTER2, TRAILER2, P/SEAT(DRV), P/SEAT (PASS), S/HEATER FRT, S/HEATER RR, SUNROOF1, MODULE11, P/WINDOW LH, P/WINDOW RH, MODULE8, TRAILER3, WIRELESS DCU, MODULE9) |
|
|
W/S HEATED GLASS RH |
50A |
Windshield Heated Relay RH |
|
|
PTC HEATER1 |
50A |
PTC Heater |
|
|
W/S HEATED GLASS LH |
50A |
Windshield Heated Relay LH |
|
|
B+2 |
40A |
PDC Junction Block (IPS8/IPS9/IPS10/IPS11/IPS12) |
|
|
B+6 |
40A |
PDC Junction Block (Fuse - AMP, MODULE10, AIRBAG2) |
|
|
POWER TAILGATE |
40A |
Powere Tailgate Open |
|
|
MULTI FUSE-2 |
COOLING FAN2 |
60A |
Cooling Fan Controller |
|
BLOWER |
50A |
Blower Relay |
|
|
E-CVVT |
50A |
E-CVVT Relay (Theta Engine) |
|
|
AUX BATT |
50A |
20AH Lithium Type Battery |
|
|
FUSE |
B+4 |
50A |
PDC Junction Block (Fuse - MULTIMEDIA, MEMORY1, MEMORY2, CCU, BDC1, BRAKE SWITCH, SUNROOF2, 4WD, DOOR LOCK, TAILGATE OPEN) |
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
ABS1/EPB1 |
40A |
ESP (Electronic Stability Program Control Module |
|
|
B+1 |
50A |
PDC Junction Block (IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7) |
|
|
B+5 |
60A |
PCB Block (Fuse - A/C1,HORN,IG1,IG2, Relay-MAIN, WIPER) |
|
|
E-SHIFTER1 |
30A |
SCU (System Control Unit) |
|
|
HEAD LAMP RH |
20A |
Front Head Lamp RH |
|
|
EOP |
30A |
Electronic Oil Pump |
|
|
HEAD LAMP LH |
20A |
Front Head Lamp LH |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
TRAILER1 |
50A |
Trailer CTM2 type (w/ e-brake) |
|
|
ABS2/EPB2 |
15A |
ESP (Electronic Stability Program Control Module) |
|
|
HEATED MIRROR |
60A |
ESP (Electronic Stability Program Control Module |
|
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
IG2 |
40A |
IG2 Relay |
|
IG1 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
7.5A |
Front Wiper (Low) Relay, BDC (Body Domain Controller) |
|
SENSOR1 |
20A |
Ignition Coil #1-#4 |
|
ECU3 |
10A |
Power train Control Module |
|
SENSOR5 |
10A |
Fuel Pump Relay, Oil Level Sensor |
|
TCU2 |
10A |
Not Used |
|
TCU3 |
10A |
Not Used |
|
SENSOR3 |
20A |
Not Used |
|
ECU1 |
20A |
Power train Control Module |
|
SENSOR2 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
15A |
Horn Relay |
|
A/C1 |
10A |
Air Conditioner Comp Relay |
|
FCA |
10A |
Front Radar |
|
SENSOR4 |
10A |
Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
|
SENSOR6 |
15A |
Injector #1 ~ #4 |
|
ECU2 |
15A |
Power train Control Module |
|
TCU1 |
15A |
Power train Control Module |
|
ABS3/EPB3 |
7.5A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
Rear Heated Relay |
MICRO |
|
Start Relay |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Windshield Heated Relay LH |
MICRO |
|
PTC Heater Relay #1 |
MICRO |
|
Windshield Heated Relay RH |
MICRO |
|
E-CVVT Relay (Theta Engine) |
MICRO |
|
Blower Relay |
MICRO |
