Replacing the rear turn signal lamp

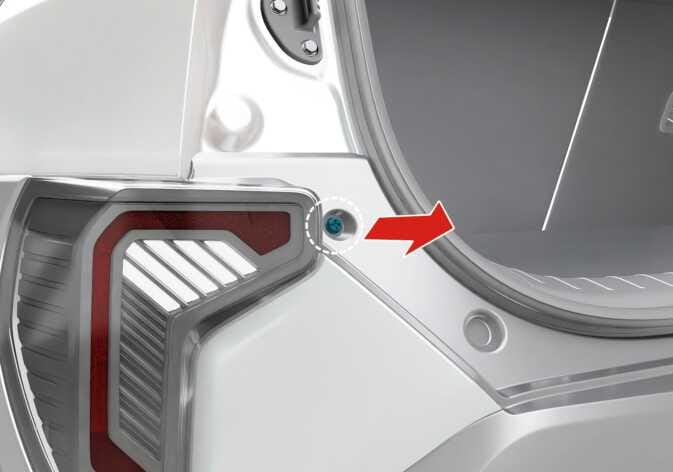

N_QVe27_B12_036_E

To replace the rear turn signal lamp (bulb type), follow these steps:

  1. Make sure the vehicle is in the OFF position and disconnect the negative 12V battery terminal.
  2. Open the tailgate.
  3. Open the service cover.
  4. Use a Phillips head screwdriver to loosen the lamp assembly retaining screws.

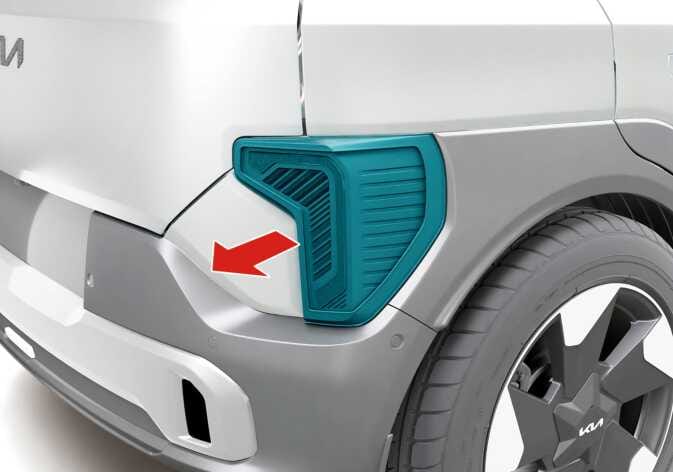

    N_QVe27_B12_037_E
  5. Remove the rear combination lamp assembly from the body of the vehicle.
  6. Disconnect the rear combination lamp connector.
  7. To remove the socket from the assembly, turn the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

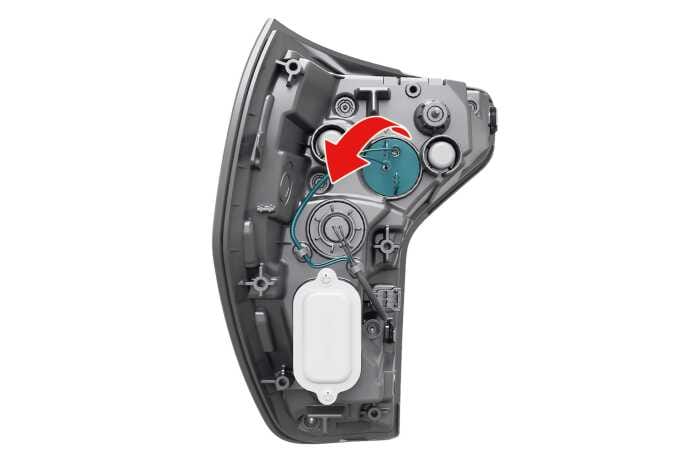

    N_QVe27_B12_038_E
  8. Press the bulb in to the socket and rotate it counterclockwise until the tabs on the bulb align with the socket. Then, remove the bulb from the socket.
  9. Insert a new bulb into the socket and rotate it clockwise until it locks into place.
  10. To install the socket back into the assembly, align the tabs on the socket with the slots in the assembly, push the socket into the assembly, and turn the socket clockwise.
  11. Reinstall the lamp assembly onto the vehicle body and securely fasten the retaining screws with a Phillips head screwdriver.
  12. Close the service cover.
