Replacing the luggage lamp

N_QVe27_B12_041_E

To replace the luggage light (bulb type), follow these steps:

  1. Make sure the vehicle is in the OFF position and disconnect the negative 12V battery terminal.

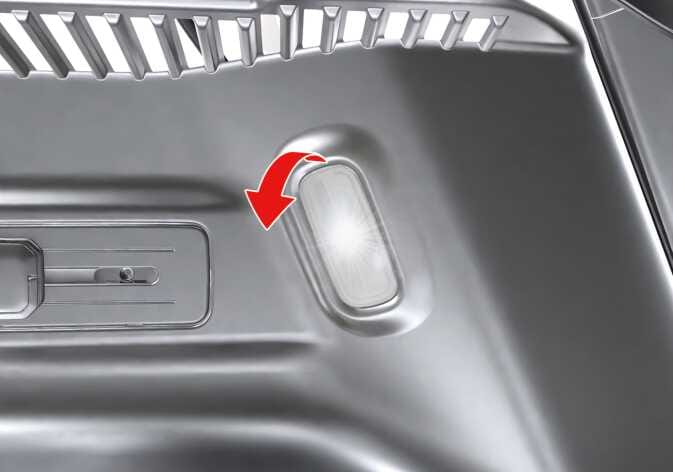

  2. Use a slotted (flat-tip) screwdriver to gently pry the lamp assembly cover from the vehicle interior.
  3. Remove the cover from the light assembly.
  4. Pull the bulb straight out of the socket to remove it.
  5. Install a new bulb in the socket.
  6. Replace the cover on the lamp assembly.
  7. Replace the lamp assembly on the vehicle interior.
CAUTION

To avoid finger burns or electric shock, make sure the interior lights are off before you replace one.

NOTE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
