Charging status
OSG2PHQ012022L

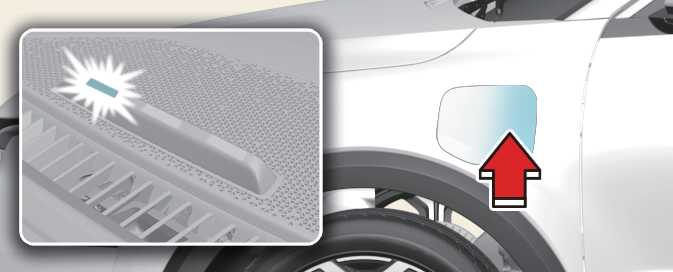

When charging the high voltage battery, the charge level can be checked from outside the vehicle.
It takes about 2 ~ 3 hours or more to complete charging.
|
Operation of charging indicator lamp |
|||||
|---|---|---|---|---|---|
|
Status |
(1) |
(2) |
(3) |
||
|
READY |
Non-charging state |
OFF |
OFF |
OFF |
|
|
Status On |
Main Relay ON status ON |
OFF |
OFF |
Blinking |
|
|
Charging |
0~35% |
Blinking |
OFF |
OFF |
|
|
35~65% |
ON |
Blinking |
OFF |
||
|
65%~ |
ON |
ON |
Blinking |
||
|
Charging complete |
Charging completed (turns off in 5 seconds) |
ON |
ON |
ON |
|
|
Charging failed |
Error whilst charging |
Blinking |
Blinking |
Blinking |
|
|
Scheduled charging standby |
Reserved charging is operating (turns OFF after 3 minutes) |
OFF |
Blinking |
OFF |
|
