Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations for Australia (Information for use by vehicle users and CRS manufacturers)
|
CRS categories |
Seating positions |
|||||
|---|---|---|---|---|---|---|
|
1, 2 |
3 |
4 |
5 |
6 |
||
|
Universal belted CRS |
All mass groups |
- |
No |
Yes (F, R) |
Yes *2 (F, R) |
Yes (F, R) |
|
i-size CRS |
ISOFIX CRF: F2, F2X, R1, R2 |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
Carry cot (ISOFIX lateral facing CRS) |
ISOFIX CRF: L1, L2 |
- |
No |
No |
No |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF: R1 |
- |
No |
Yes (R) |
No |
Yes (R) |
|
ISOFIX toddler CRS – small |
ISOFIX CRF: F2, F2X, R2, R2X |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF: F3, R3 |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
Booster Seat – Reduced width |
ISO CRF: B2 |
- |
No |
Yes |
No |
Yes |
|
Booster Seat – Full width |
ISO CRF: B3 |
- |
No |
Yes |
No |
Yes |
1. To install Universal CRS, 1st row passenger seat should be adjusted appropriate position which do not interfere stable installation (adjust to possible height or upright position)
2. Never install CRS with a support leg on 2nd row centre seating position
|

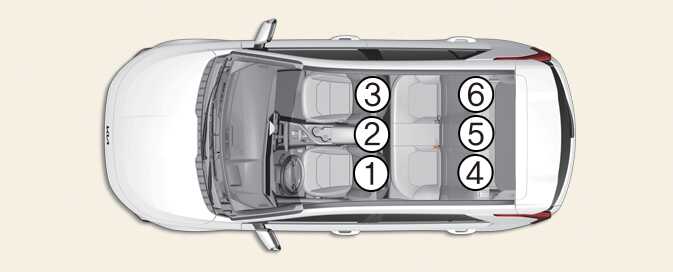

Seat Number |
Position in the vehicle |
Seating positions |
|---|---|---|
|
1 |
Front left |
 OSG2PH032004L2 |
|
2 |
Front centre |
|
|
3 |
Front right |
|
|
4 |
2nd row left |
|
|
5 |
2nd row centre |
|
|
6 |
2nd row right |
If the head restraints prevent proper installation of a CRS, the head restraints of the seating position shall be readjusted or entirely removed.
Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
