Locking/unlocking with the smart key

OSG2H041004

Operation

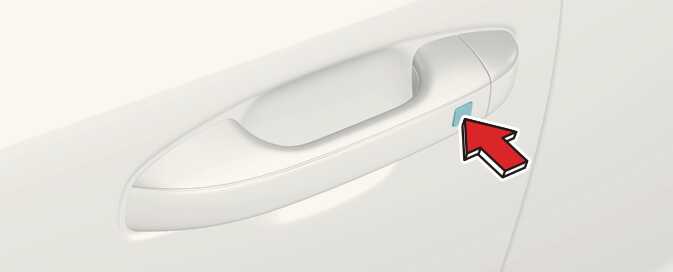

  1. Press the front door handle button (driver's side).

  2. Hazard warning lights will blink and the chime will sound.

    • Locking: Once

    • Unlocking: Twice

Operating condition(s)

  • All doors are closed

  • Smart key is detected within 0.7~1 m (28~40 inches)

Non-operating condition(s)

  • Smart key is in the vehicle.

  • The vehicle is in ACC or ON position.

  • Doors (except tailgate) are open.

CAUTION

When leaving your vehicle with a smart key, be sure to close all doors (including bonnet and tailgate) and check by pressing the front door handle button. If the button is unpressed, the doors are unlocked.

NOTE

  • After pressing the button, the doors will lock automatically unless you open any door within 30 seconds.

  • By pulling the driver-side exterior door handle, you can find whether the door has locked or not.

  • Make sure the doors are closed securely.

  • If the door is locked/unlocked multiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily to protect the circuit and prevent damage to system components.

  • Always place the ignition switch or ENGINE START/STOP button in the OFF position, engage the parking brake, close all windows, and lock all doors when leaving your vehicle unattended.

  • If the Welcome Mirror/Light function is selected, the outside rear view mirror will automatically unfold when the doors are unlocked.

Limitation(s)

  • Smart key is detected within 0.7~1 m (28~40 inches).
