Operation

• Select the direction of the air flow through the ventilation system.

• The air flow outlet ports are enabled in the following sequence:



  OSG2H041449

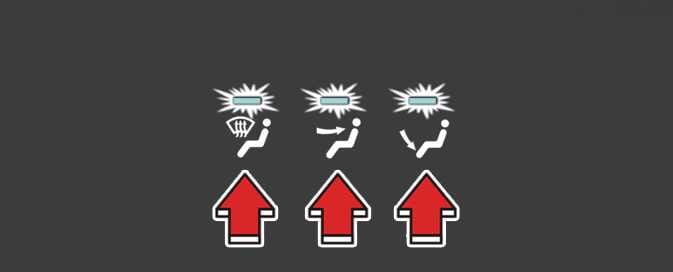

  Face-Level (B, D, F)

  Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

  Bi-Level (B, C, D, E, F)

  Air flow is directed towards the face and the floor.

  Floor-Level (A, C, D, E, F)

  Most of the air flow is directed to the floor, with a small amount of the air being directed to the windscreen, side window defrosters and side air vents.

  Floor/Defrost-Level (A, C, D, E, F)

  Most of the air flow is directed to the floor and the windscreen with a small amount directed to the side window defrosters and side air vents.

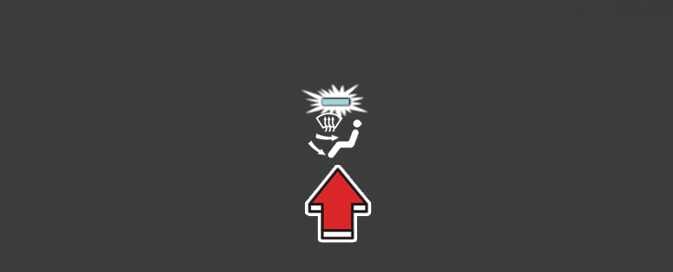

  Defrost-Level (A, D)

  Most of the air flow is directed to the windscreen with a small amount of air directed to the side window defrosters and side air vents.
