Collision warning

OSG2H0510352
OSG2PH052025L
OSG2H051253

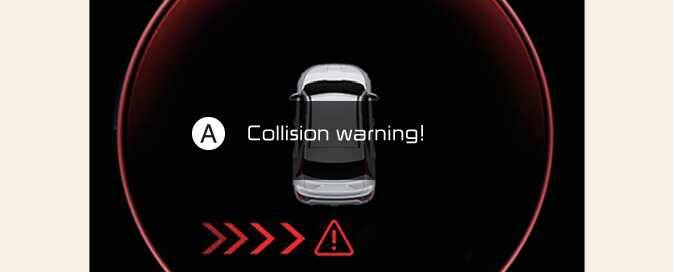

A: Collision warning

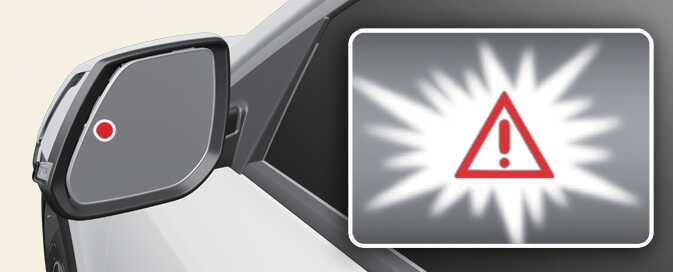

  • To warn the driver of an approaching vehicle from the rear left/right side of your vehicle, the warning light on the outside rearview mirror will blink and a warning will appear on the cluster.

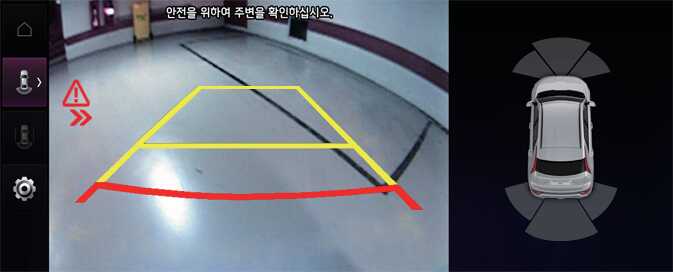

    At the same time, an audible warning will sound and the steering wheel will vibrate (if equipped). If the Rear View Monitor is operating, a warning will also appear on the infotainment system screen.

  • Rear Cross-Traffic Collision-Avoidance Assist will operate when all the following conditions are satisfied:

    • The gear is shifted to R (Reverse)

    • Vehicle speed is below 8 km/h (5 mph)

    • The approaching vehicle is within approximately 25 m (82 ft.) from the left and right side of your vehicle

    • The speed of the vehicle approaching from the left and right is above 5 km/h (3 mph)

    NOTE

    • If the operating conditions are satisfied, there will be a warning whenever the vehicle approaches from the left or right side even though your vehicle speed is 0 km/h (0 mph).

    • The images and colours in the cluster may differ depending on the cluster type or theme selected from the cluster.
