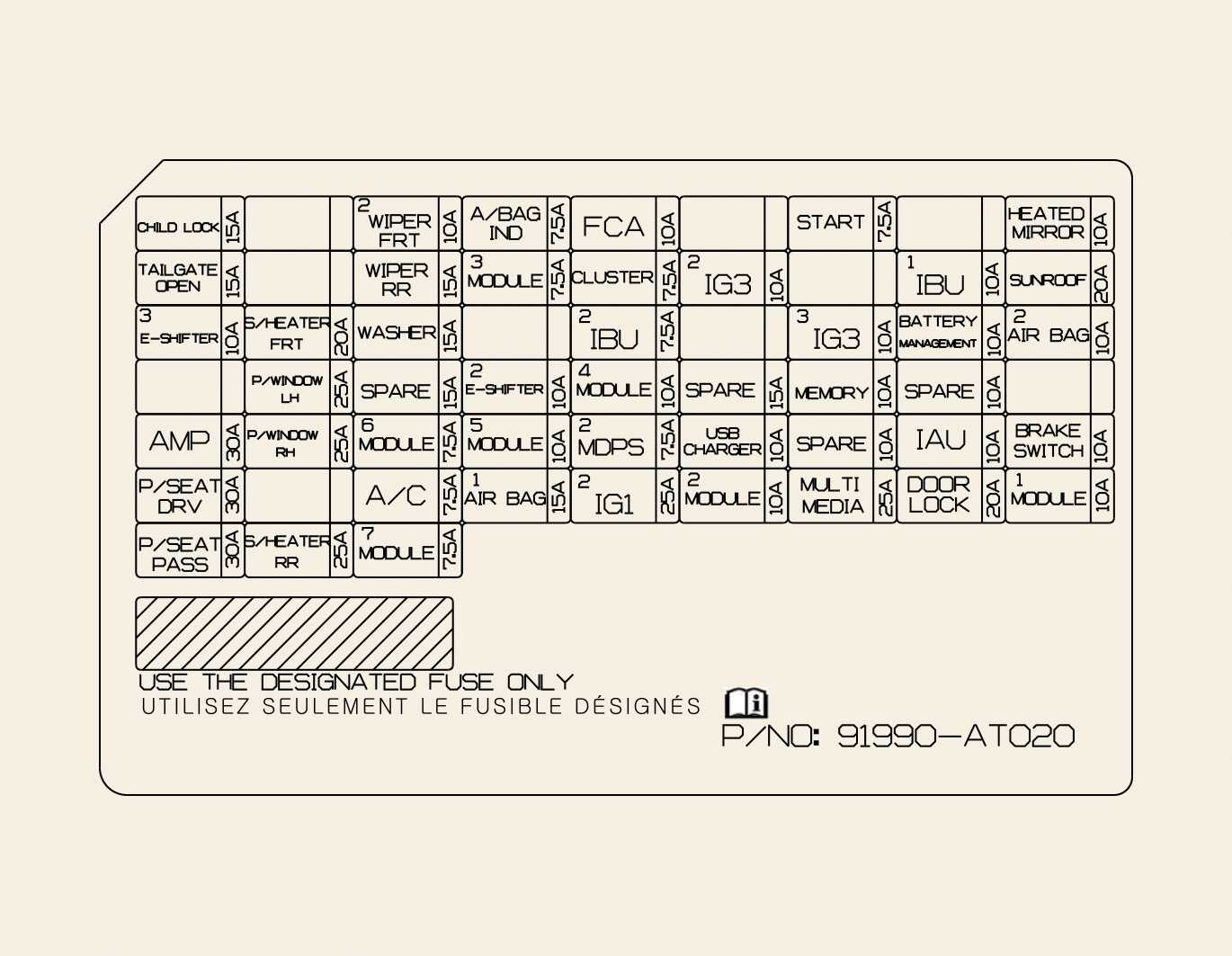

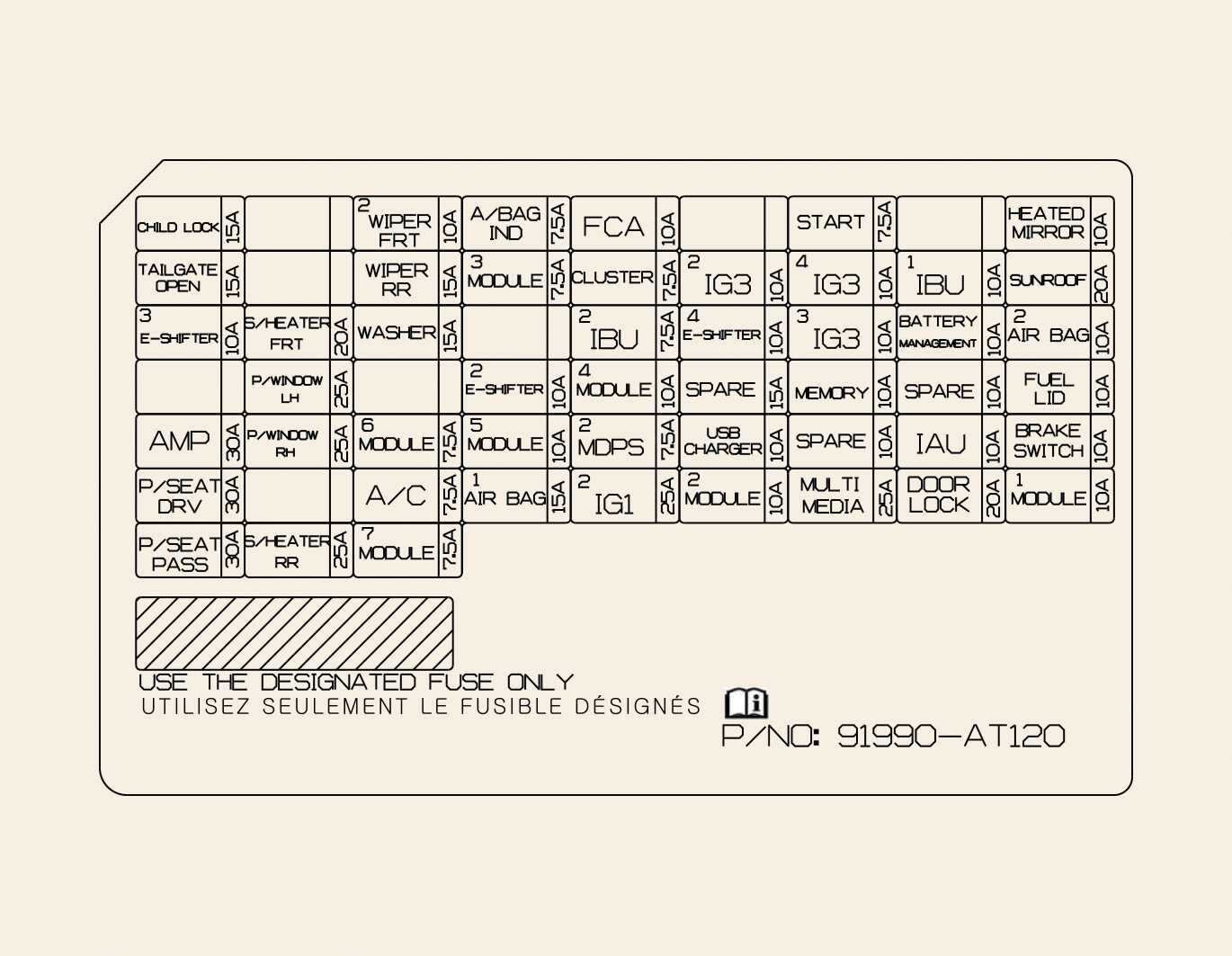

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
ICU Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
CHILD LOCK |
15A |
Electronic child safety lock system |
|
WIPER FRT 2 |
10A |
Front Wiper Motor |
|
A/BAG IND |
7.5A |
Instrument Cluster |
|
FCA |
10A |
Front Radar |
|
START |
7.5A |
Burglar Alarm Relay, HPCU (Hybrid Power Control Unit), IBU (Integrated Body Control Unit) |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
TAILGATE OPEN |
15A |
Tailgate open Relay |
|
WIPER RR |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
MODULE 3 |
7.5A |
Overhead Console, Multifunction Switch, Stop Lamp Switch |
|
CLUSTER |
7.5A |
INSTRUMENT CLUSTER, HEAD UP DISPLAY |
|
IG3 2 |
10A |
BATTERY MANAGEMENT SYSTEM |
|
IG3 4 |
10A |
AUDIO/ NAVIGATION HEAD UNIT, CHARGING IND, INSTRUMENT CLUSTER, AIR CONDITIONER CONTROL MODULE, HV PTC (Positive Temperature Coefficient) HEATER UNIT (PHEV (Plug-in Hybrid Electric Vehicle)) |
|
IBU 1 |
10A |
IBU(INTEGRATED BODY CONTROL UNIT), SPORT MODE SWITCH |
|
SUNROOF |
20A |
Sunroof Controller (Blind Motor) |
|
E-SHIFTER 3 |
10A |
SCU (Shift by wire Control Unit), Electronic Dual clutch transmission Shifter Dial Switch |
|
S/HEATER FRT |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
WASHER |
15A |
Multifunction Switch |
|
IBU 2 |
7.5A |
IBU (Integrated Body Control Unit), Ignition Switch |
|
E-SHIFTER 4 |
10A |
SCU (Shift by wire Control Unit), Electronic Dual clutch transmission Shifter Dial Switch (PHEV (Plug-in Hybrid Electric Vehicle)) |
|
IG3 3 |
10A |
ON BOARD CHARGER UNIT, HPCU (Hybrid Power Control Unit), Engine Room Junction Block (BATTERY C/FAN Relay), A/C COMPRESSOR |
|
BATTERY MANAGEMENT |
10A |
Battery Management System |
|
AIR BAG 2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
P/WINDOW LH |
25A |
Power Window Main Switch |
|
E-SHIFTER 2 |
10A |
SCU (Shift by wire Control Unit), Console Switch |
|
MODULE 4 |
10A |
IBU (Integrated Body Control Unit), ADAS PARKING ECU, VESS (Virtual Engine Sound System) UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, CENTER CONSOL, REAR CORNER RADAR |
|
MEMORY |
10A |
INSTRUMENT CLUSTER, HEAD UP DISPLAY, MOOD LAMP, AIR CONDITIONER CONTROL MODULE |
|
FUEL LID |
10A |
Opening the fuel filler door (PHEV) |
|
AMP |
30A |
AMP (Amplifier) |
|
P/WINDOW RH |
25A |
Power Window Main Switch, Passenger Power Switch |
|
MODULE 6 |
7.5A |
IBU (INTEGRATED BODY CONTROL UNIT) |
|
MODULE 5 |
10A |
HEAD LAMP LEVELING DEVICE, AUDIO/ NAVIGATION HEAD UNIT, WIRELESS SMART PHONE CHARGING SYSTEM, E-CALL UNIT, AIR CONDITIONER CONTROL MODULE, OVERHEAD CONSOLE LAMP, ELECTRIC CHROMIC MIRROR, AMP(AMPLIFIER),SEAT WARMER CONTROL MODULE |
|
MDPS 2 |
7.5A |
Motor Driven Power Steering Unit |
|
USB CHARGER |
10A |
USB CHARGER (FRONT TRAY/ SEAT Driver/ Passenger) |
|
IAU |
10A |
DIGITAL KEY 2 TOUCH UNIT |
|
BRAKE SWITCH |
10A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
A/C |
7.5A |
AIR CONDITIONER CONTROL MODULE, Engine Room Junction Block (BLOWER,PTC (Positive Temperature Coefficient) RELAY), A/C COMPRESSOR |
|
AIR BAG 1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
IG1 2 |
25A |
Engine Room Junction Block (PCB (Printed Circuit Board) BLOCK FUSE - IEB4, ECU3, DCT3, EWP3) |
|
MODULE 2 |
10A |
IBU (Integrated Body Control Unit), ADAS PARKING ECU, E-CALL, AUDIO/ NAVIGATION HEAD UNIT, Engine Room Junction Block (P/OUTLET Relay) |
|
MULTI MEDIA |
25A |
Audio (Display), Audio/Video & Navigation Head Unit |
|
DOOR LOCK |
20A |
Center Door Lock lock Relay |
|
MODULE 1 |
10A |
KEY INTERLOCK, AIR CONDITIONER CONTROL MODULE, CHARGING LAMP (THE PLUG-IN HYBRID VEHICLE), HAZARD SWITCH, RAIN SENSOR, STEERING WHEEL REMOTE CONTROL |
|
P/SEAT PASS |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
S/HEATER RR |
25A |
Rear Seat Warmer Control Module |
|
MODULE 7 |
7.5A |
ADAS PARKING ECU, AC INVERTER, COOLING FAN MOTOR, SEAT WARMER CONTROL MODULE |
|
E-SHIFTER 2 |
10A |
SCU (System Control Unit), Electronic Shift Dial |
|
MODULE 4 |
10A |
IBU (Integrated Body Control Unit), ADAS PARKING ECU, VESS (Virtual Engine Sound System) UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, CENTER CONSOL, REAR CORNER RADAR |
