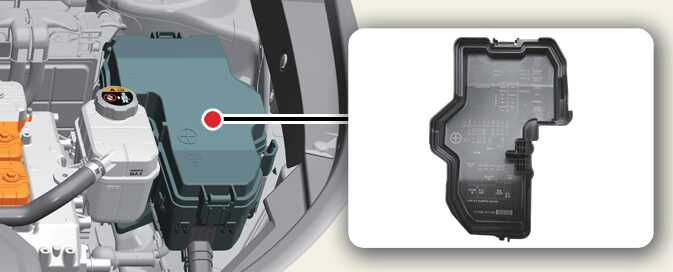

Engine compartment fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

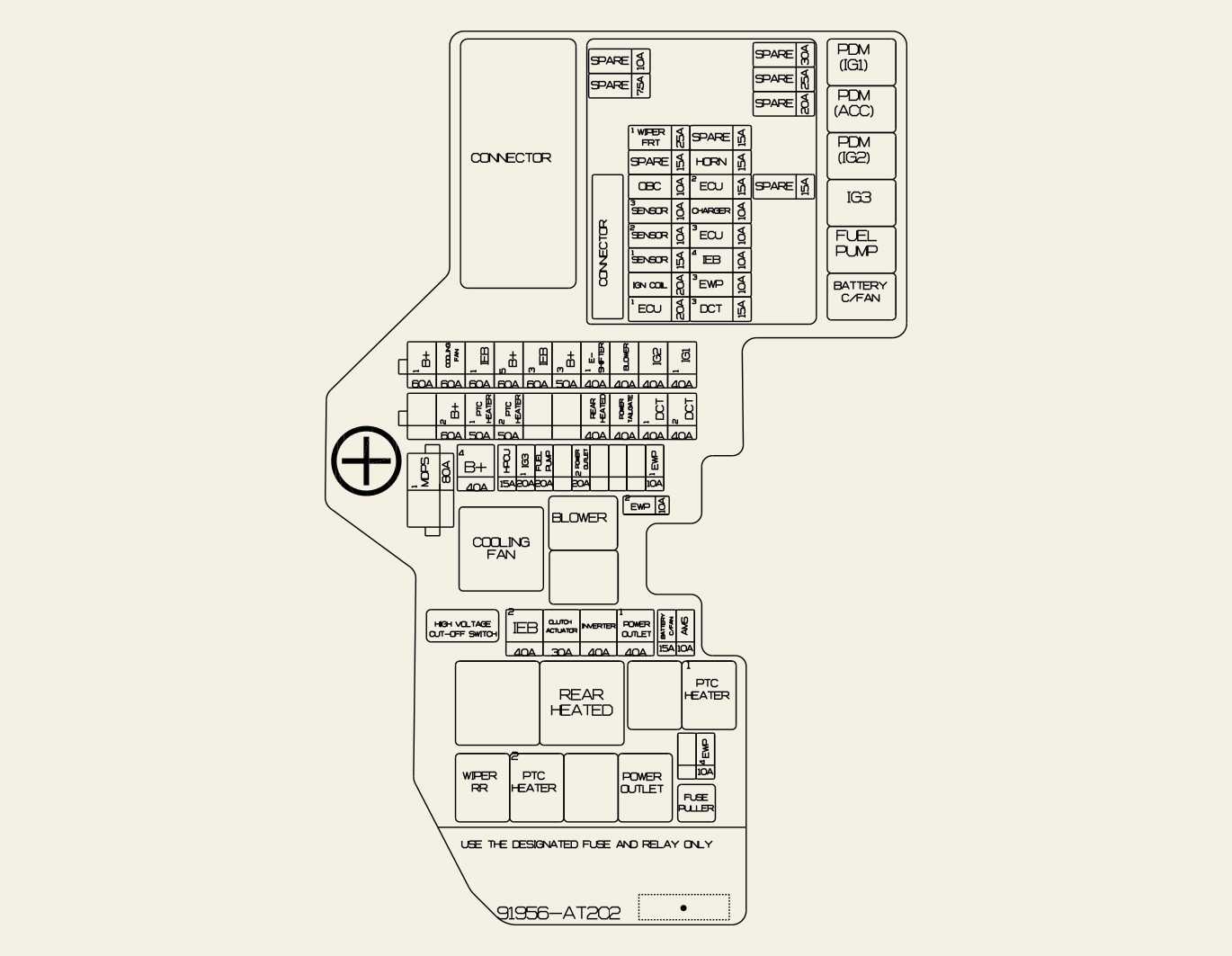

Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
MDPS 1 |
80A |
Motor Driven Power Steering Unit |
|
MULTI FUSE-2 |
B+1 |
60A |
ICU JUNCTION BLOCK (IPS) |
|
COOLING FAN |
60A |
Cooling Fan Controller |
|
|
IEB1 |
60A |
IEB (Integrated Electronic Brake Module) |
|
|
B+5 |
60A |
Engine Room PCB (Printed Circuit Board) Junction Block |
|
|
IEB3 |
60A |
IEB (Integrated Electric Brake Module) |
|
|
B+3 |
50A |
ICU JUNCTION BLOCK (FUSE - E-SHIFTER3, P/WDW LH, P/WDW RH, T/GATE OPEN, AMP (Amplifier), POWER SEAT Driver, POWER SEAT Passenger, SEAT HEATER Front, SEAT HEATER Rear), EWP2 |
|
|
E-SHIFTER1 |
40A |
SCU (Shift by wire Control Unit) |
|
|
BLOWER |
40A |
Blower Relay |
|
|
IG2 |
40A |
ICU JUNCTION BLOCK (FUSE - WASHER, A/C, MODULE6, MODULE7, WIPER Rear) |
|
|
IG1 1 |
40A |
ICU JUNCTION BLOCK (FUSE -MODULE2, USB CHARGER, A/BAG1, IBU2, MDPS2, CLUSTER, MODULE3, A/BAG Indicator, MODULE4, MODULE5, E-SHIFTER2, Forward Collision-Avoidance Assist, ING1 2) |
|
|
MULTI FUSE-3 |
B+2 |
60A |
ICU JUNCTION BLOCK (IPS) |
|
PTC HEATER1 |
50A |
PTC (Positive Temperature Coefficient) HEATER #1 RELAY |
|
|
PTC HEATER2 |
50A |
PTC (Positive Temperature Coefficient) HEATER #2 RELAY |
|
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
POWER TAILGATE |
40A |
Power tailgate Unit |
|
|
DCT1 |
40A |
DUAL CLUTCH TRANSMISSION |
|
|
DCT2 |
40A |
DUAL CLUTCH TRANSMISSION |
|
|
FUSE |
B+4 |
40A |
ICU JUNCTION BLOCK (FUSE - MULTIMEDIA, E-CALL, A/BAG2, BRAKE SWITCH, MODULE1, FUEL LID, IBU1, SUNROOF, BATTERY MANAGEMENT, DOOR LOCK |
|
FUSE |
HPCU |
15A |
HYBRID POWER CONTROL UNIT |
|
FUSE |
IG3 1 |
20A |
IGNITION3 RELAY |
|
FUSE |
FUEL PUMP |
20A |
Fuel Pump Relay |
|
FUSE |
POWER OUTLET |
20A |
Front Power Outlet |
|
FUSE |
EWP1 |
10A |
Battery Electronic Water Pump |
|
FUSE |
EWP2 |
10A |
Battery Electronic Water Pump |
|
FUSE |
IEB2 |
40A |
IEB (Integrated Electric Brake Module) |
|
FUSE |
CLUTCH ACTUATOR |
30A |
ENGINE CLUTCH ACTUATOR (HPCU (Hybrid Power Control Unit)) |
|
FUSE |
INVERTER |
40A |
AC INVERTER |
|
FUSE |
POWER OUTLET1 |
40A |
Front Power Outlet |
|
FUSE |
BATTERY C/FAN |
15A |
Battery Cooling Fan (HEV (Hybrid Electric Vehicle)) |
|
FUSE |
AMS |
10A |
BATTERY SENSOR(PHEV (Plug-in Hybrid Electric Vehicle)) |
|
FUSE |
EWP4 |
10A |
Battery Electronic Water Pump (PHEV (Plug-in Hybrid Electric Vehicle)) |
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
WIPER FRT1 |
25A |
FRONT WIPER MOTOR |
|
OBC |
10A |
ON BOARD CHARGER UNIT(PHEV (Plug-in Hybrid Electric Vehicle)) |
|
SENSOR3 |
10A |
FUEL PUMP RELAY |
|
SENSOR2 |
10A |
OIL CONTROL VALVE, , PURGE CONTROL SOLENOID VALVE, VARIABLE OIL PUMP VALVE CONTROL, COOLING FAN MOTOR RELAY,FUEL TANK ISOLATION VALVE(PHEV (Plug-in Hybrid Electric Vehicle)) |
|
SENSOR1 |
15A |
Oxygen Sensor (UP/DOWN) |
|
IGN COIL |
20A |
Ignition coil #1/#2/#3/#4 |
|
ECU1 |
20A |
ECM (ENGINE CONTROL MODULE) |
|
ECU2 |
15A |
ECM (ENGINE CONTROL MODULE) |
|
CHARGER |
10A |
CHARGER LOCK/UNLOCK RELAY(PHEV) |
|
ECU3 |
10A |
ECM (ENGINE CONTROL MODULE) |
|
IEB4 |
10A |
IEB (Integrated Electric Brake Module) |
|
EWP3 |
10A |
Battery Electronic Water Pump |
|
DCT3 |
15A |
DUAL CLUTCH TRANSMISSION |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
PDM (IG1) |
MICRO |
|
PDM (ACC) |
MICRO |
|
PDM (IG2) |
MICRO |
|
IG3 |
MICRO |
|
FUEL PUMP |
MICRO |
|
BATTERY C/FAN |
MICRO |
|
BLOWER |
MICRO |
|
PTC HEATER1 |
MICRO |
|
PTC HEATER2 |
MICRO |
|
POWER OUTLET |
MICRO |
|
WIPER RR |
MICRO |
|
REAR HEATED |
MINI |
|
COOLING FAN |
MINI |
