엔진룸 퓨즈/릴레이

잠금쇠를 누른 후 커버를 분리하십시오.

This image shows the location and details of the fuse box in the 2026 Kia Tasman engine compartment. The location of the fuse box on the right side of the engine compartment with the hood open is indicated by a red line. The enlarged image shows the fuse and relay layout with the cover removed. This explains the function for identifying the location and internal structure of the fuse box.
N_TK25G018_1

전조등이나 다른 전기 장치가 작동하지 않지만 실내 퓨즈 또는 엔진룸 퓨즈는 양호할 경우 메인 퓨즈를 점검하고 단선되었으면 교체하십시오.

메인 퓨즈(멀티 퓨즈)

메인 퓨즈(멀티 퓨즈)가 너트로 고정되어 있을 경우 임의 분해 또는 조립하지 마십시오. 불완전 체결 및 잘못된 조립 토크는 화재의 원인이 될 수 있으므로 자사 직영 서비스센터 및 서비스협력사에 정비를 의뢰하십시오.

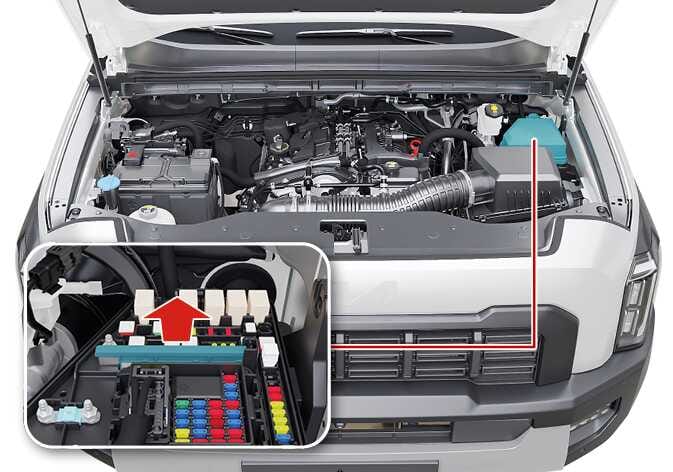

This is an image of the fuse box and fuse clips for the 2026 Kia Tasman engine compartment. The red line indicates the location of the fuse box on the right side of the engine compartment, and the fuse clips are highlighted in turquoise in the enlarged detail. Instructions are provided to remove the fuse clips by pulling them in the direction of the bold red arrow pointing upward.
N_TK25G020_1
경고

엔진룸 퓨즈 박스 커버를 닫을 시 락킹음을 확인해 커버 닫힘을 확인하십시오. 엔진룸 퓨즈 박스 커버가 정상 체결되지 않으면 수분 유입으로 인한 전자 장치의 비정상 작동이 발생할 수 있습니다.

배터리 퓨즈

배터리 퓨즈가 너트로 고정되어 있을 경우는 임의로 분해하거나 조립하지 마십시오. 불완전 체결 및 잘못된 조립 토크는 화재의 원인이 될 수 있으므로 자사 직영 서비스센터 및 서비스협력사에 정비를 의뢰하십시오.

This image shows the location of the 2026 Kia Tasman engine compartment battery fuse. It shows the location of the battery, highlighted in turquoise, inside the engine compartment with the hood open. The enlarged image, connected by a red solid line, details the fuse and terminal connections located on top of the battery. This explains the function for locating the exact battery fuses in the engine compartment.
N_TK25G012_1
