Engine compartment

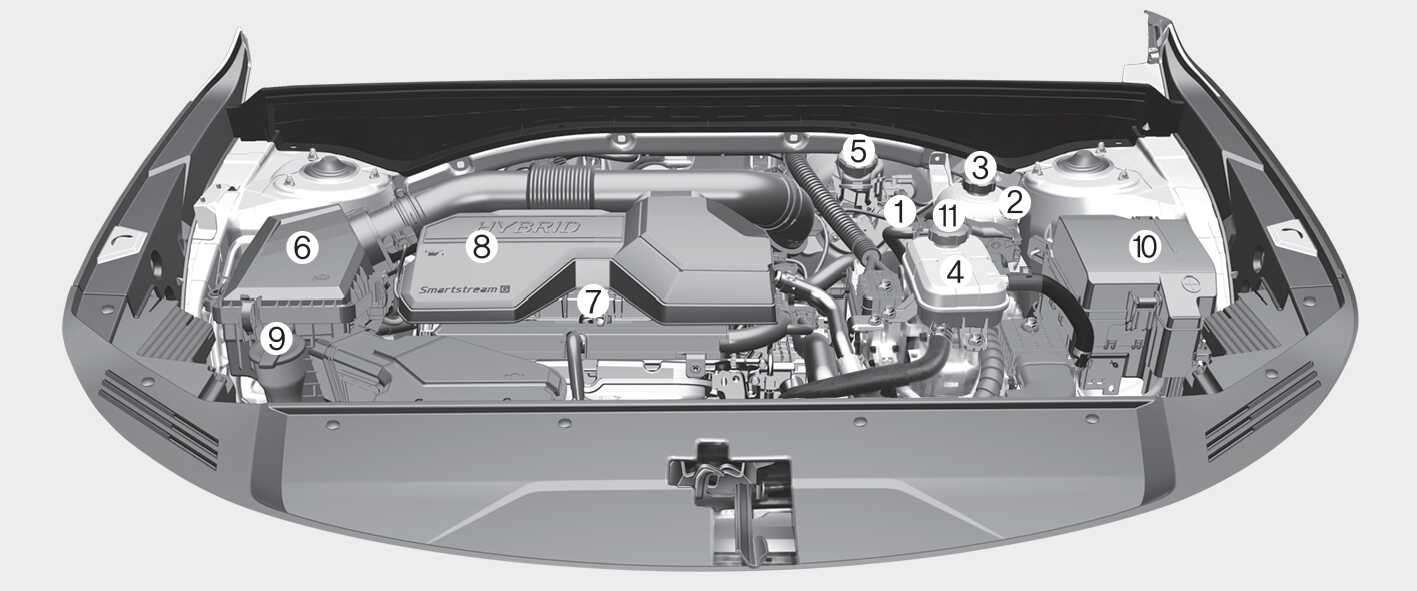

Figure 1. Smartstream G1.6 T-GDi HEV
OMQ4H070021

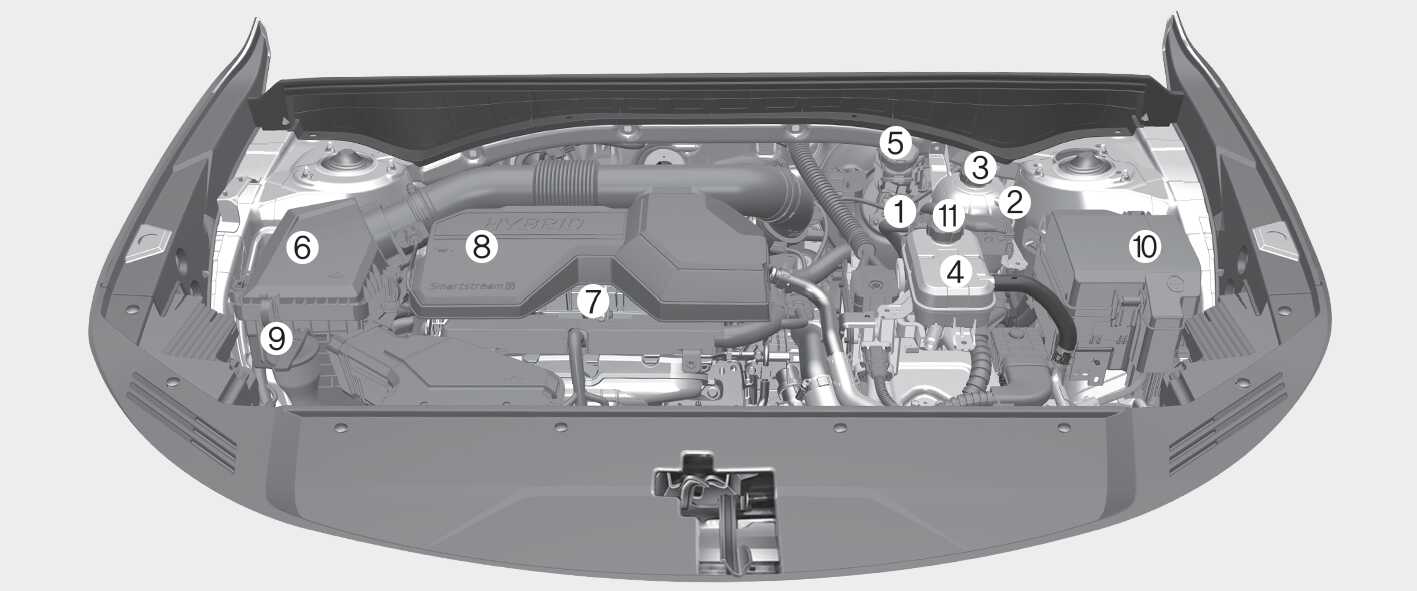

Figure 2. Smartstream G1.6 T-GDi PHEV
OMQ4PH070021L

The actual engine room in the vehicle may differ from the illustration.

  1. Electric Control Unit (ECU) Engine compartment

  2. Engine coolant reservoir Coolant

  3. Engine coolant reservoir cap Coolant

  4. Inverter coolant reservoir Checking the inverter coolant level (HEV)

  5. Brake fluid reservoir Brake fluid

  6. Air cleaner Climate control air filter

  7. Engine oil dipstick Changing the engine oil and filter

  8. Engine oil filler cap Changing the engine oil and filter

  9. Windshield washer fluid reservoir Washer fluid

  10. Fuse box Fuses

  11. Inverter coolant reservoir cap Coolant
