Engine compartment

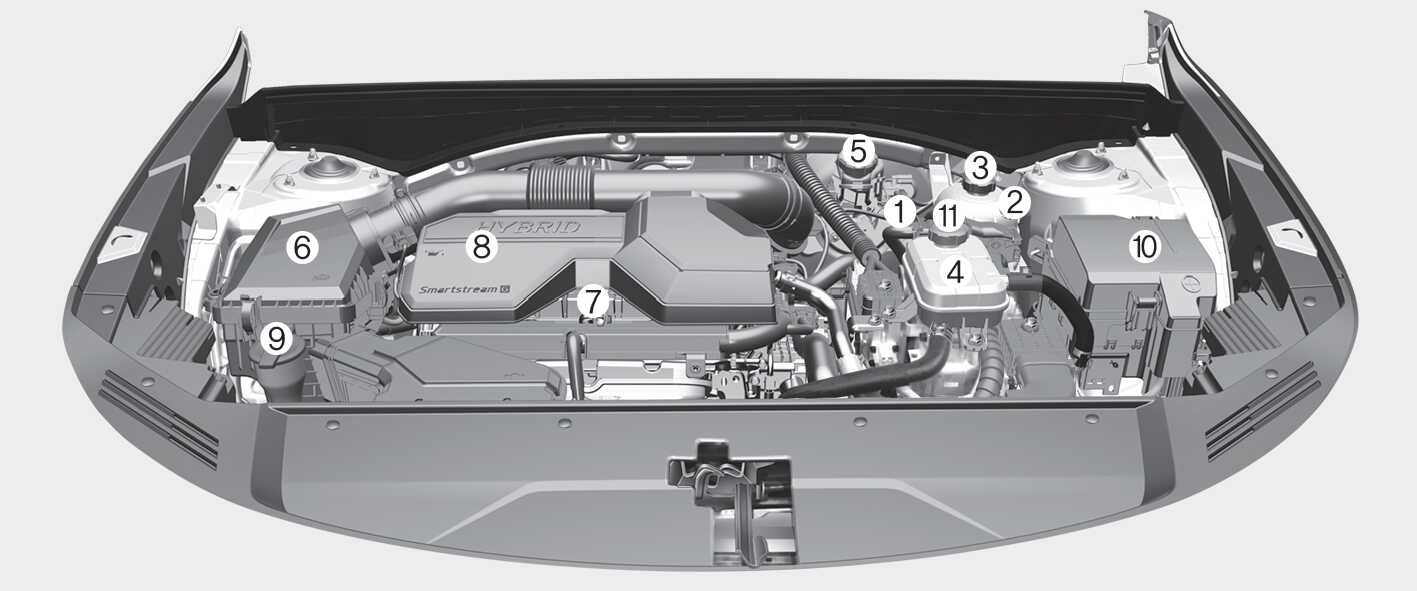

Figure 1. Smartstream G1.6 T-GDi HEV
OMQ4H0700210
Figure 2. Smartstream G1.6 T-GDi PHEV
OMQ4PH070021L0

The actual engine room in the vehicle may differ from the illustration.

  1. Electronic Control Unit (ECU)

  2. Engine coolant reservoir

  3. Engine coolant reservoir cap

  4. Inverter coolant reservoir

  5. Brake fluid reservoir

  6. Air cleaner

  7. Engine oil dipstick

  8. Engine oil filler cap

  9. Windshield washer fluid reservoir

  10. Fuse box

  11. Inverter coolant reservoir cap
