Instrument cluster

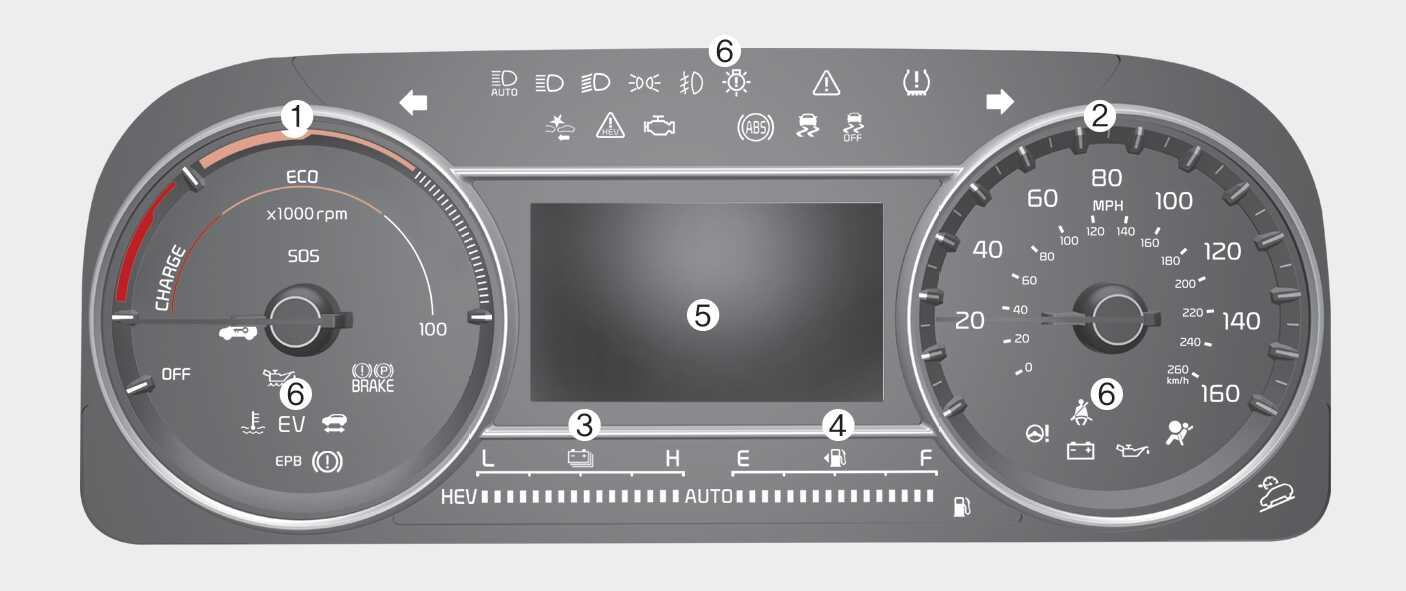

Figure 1. Conventional cluster (Type A)
OMQ4AH040106
Figure 2. Full LCD cluster (Type B)
OMQ4AH041100

The actual cluster in the vehicle may differ from the illustration.

  1. Power gauge

  2. Speedometer

  3. Hybrid battery SOC gauge

  4. Fuel gauge

  5. LCD display (including Trip computer)

  6. Warning and indicator lights
