Forward Collision-Avoidance Assist (FCA) (Sensor fusion): (if equipped)

Basic function

OMQ4H052603

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and an audible warning, and if necessary, apply emergency braking.

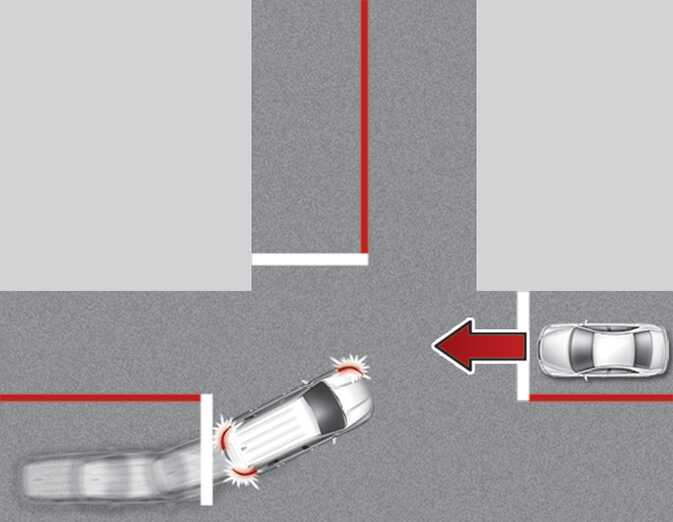

Junction Turning function

OMQ4H052646

Junction Turning function will help avoid a collision with an oncoming vehicle in an adjacent lane when turning left at a crossroad with the turn signal on by applying emergency braking.

Detecting sensor

Figure 1. Front view camera
OMQ4H0510091

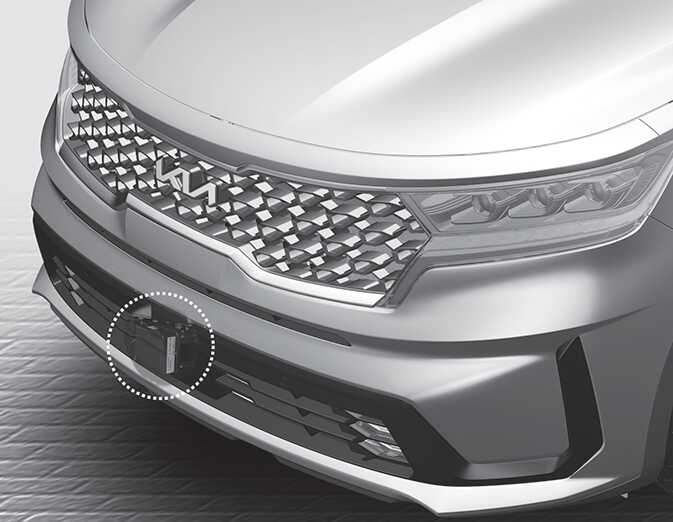

Figure 2. Front radar
OMQ4051077

Refer to the picture above for the detailed location of the detecting sensors.

CAUTION

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor or sensor assembly, or apply any impact on it.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • If the detecting sensors have been replaced or repaired, have the vehicle be inspected by an authorized Kia dealer.

  • Pay extreme caution to keep the front view camera dry.

  • Never place any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may prevent the function from functioning properly.

  • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.

  • Always keep the front radar and cover clean and free of dirt and debris. Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • If unnecessary force has been applied to the radar or around the radar, Forward Collision-Avoidance Assist may not properly operate even though a warning message does not appear on the cluster. Have the vehicle be inspected by an authorized Kia dealer.

  • The genuine Kia front radar sensor covers are parts with quality and performance ensured. If arbitrarily applying paint on or changing the cover, Forward Collision-Avoidance Assist may not function properly. Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.
