Automatic climate control system

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

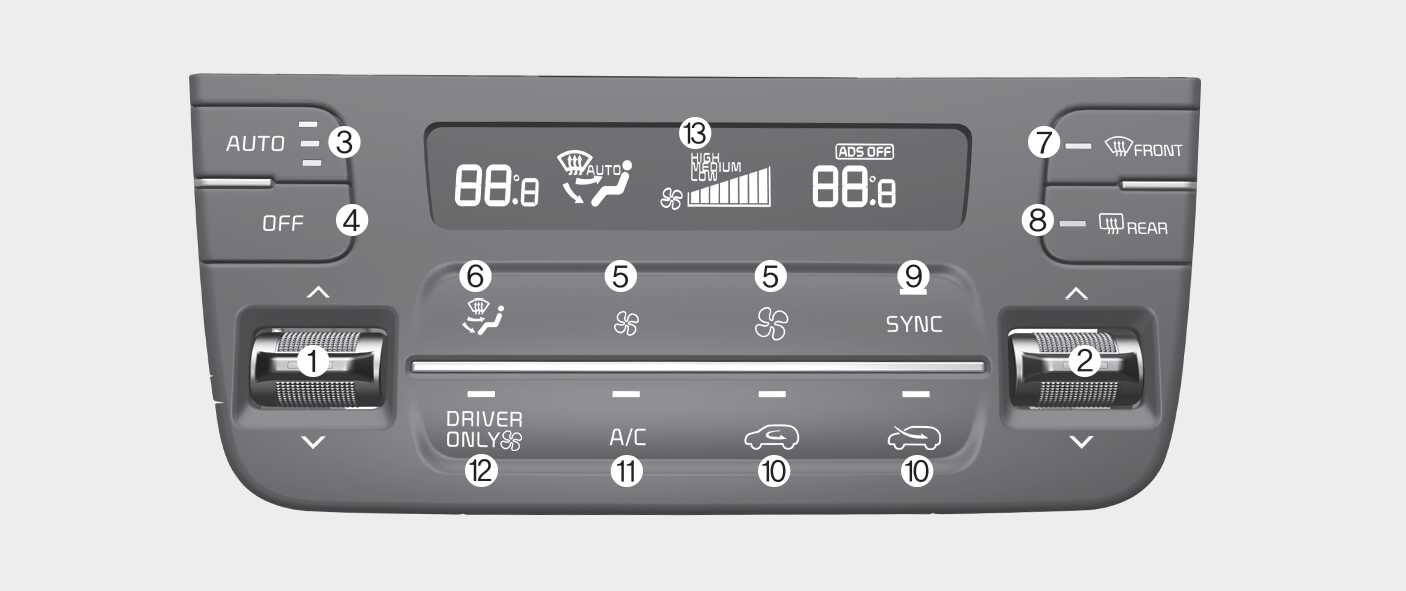

Figure 1. Type A
OMQ4H040301L
Figure 2. Type B
OMQ4H040300L
Figure 3. 3rd row seat
OMQ4H040303L

  1. Driver's temperature control button

  2. Passenger's temperature control button

  3. AUTO (automatic control) button

  4. OFF button

  5. Fan speed control button

  6. Mode selection button

  7. Front windshield defroster button

  8. Rear window defroster button

  9. SYNC button

  10. Air intake control button

  11. Air conditioning (A/C) button

  12. Driver's side only HVAC button

  13. Climate control display

  14. 3rd row air conditioning ON/OFF button (if equipped)

  15. 3rd row air conditioning fan speed control knob (if equipped)

NOTE

Operating the blower when the ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
