Heating and air conditioning automatically

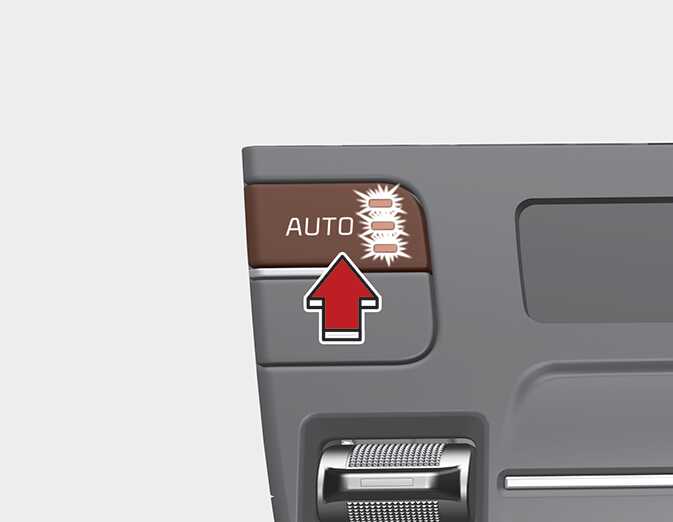

  1. Press the AUTO button.

    The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

    OMQ4040350L

    Level

    Indicator

    LCD Display

    Air flow

    High

    1~8

    Medium

    1~7

    Low

    1~5
  2. Press the temperature control button to the desired temperature.
    OMQ4040351L
NOTE

  • To turn the automatic operation off, select any button or switch of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.)

    • Fan speed control knob

    The selected function will be controlled manually while other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 72 °F (22 °C).

NOTE

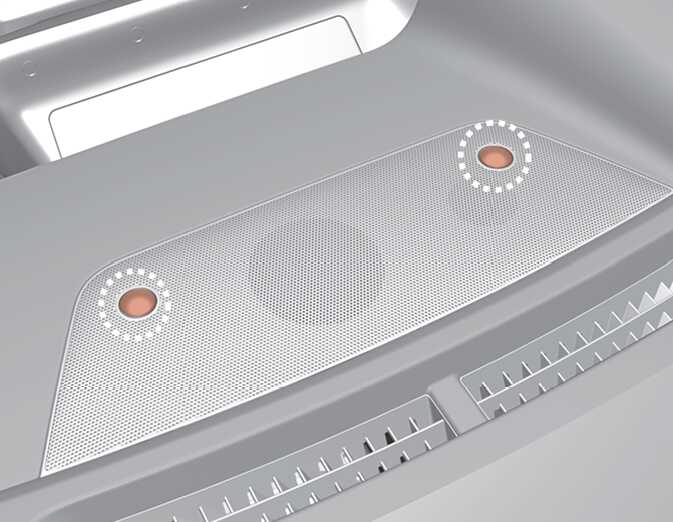

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

OMQ4040068
