Fuse/relay panel description

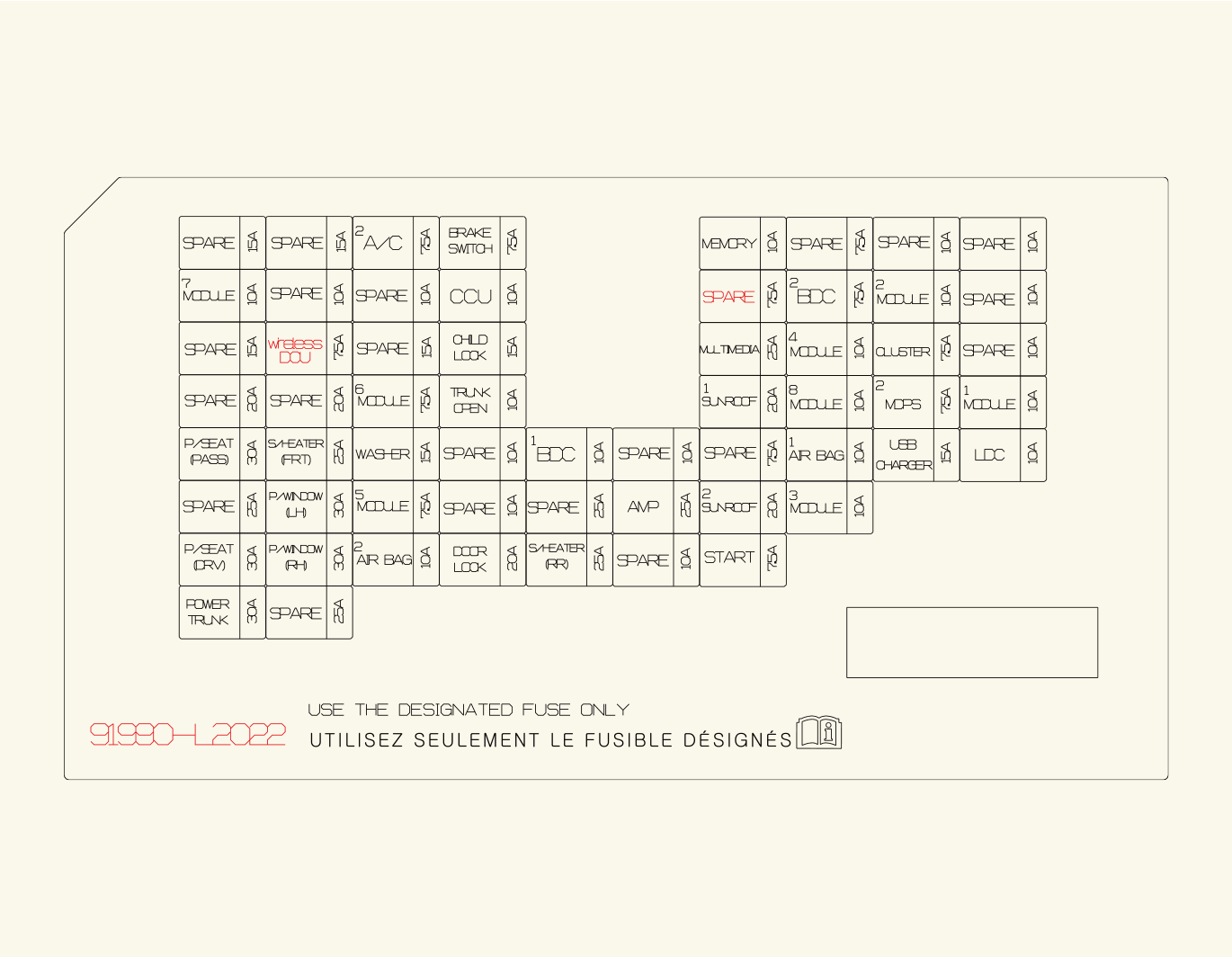

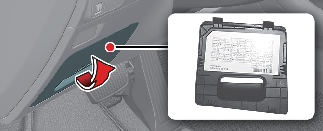

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
S/HEATER (FRT) |
25 A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
TRUNK |
10 A |
Trunk Lid Relay |
|
DOOR LOCK |
20 A |
Door Lock Relay, Door Unlock Relay |
|
MODULE1 |
7.5 A |
BDC (Body Domain Contoller), CCU (Central Communication Unit), DCU (Data Connectivity Unit), CCNC (Connected Car Navigation Cockpit), AMP (Amplifier), ADAS Parking ECU |
|
CHILD LOCK |
15 A |
Rear Child Lock Relay, Rear Child Unlock Relay |
|
MODULE3 |
10 A |
Rear Corner Radar, C/PAD Switch, DCU (Data Connectivity Unit), LKAS, Stop Lamp Switch, Electronic Parking Brake Switch, SCC Radar, VESS (Virtual Engine Sound System) Unit |
|
S/HEATER (RR) |
25 A |
Rear Seat Warmer Control Module |
|
P/SEAT (PASS) |
30 A |
Passenger Seat Manual Switch, Passenger Seat Relax Unit |
|
MODULE6 |
10 A |
P LBM (Parking-Lithium Battery Module), Front Heated Glass Relay |
|
SAFETY P/WINDOW (RH) |
30 A |
Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window switch Left Handle side |
|
P/SEAT (DRV) |
30 A |
Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module |
|
IBU1 |
15 A |
IBU (Integrated Body Control Unit), Ignition Switch |
|
AMP |
25 A |
AMP (Amplifier) |
|
SAFETY P/WINDOW (LH) |
30 A |
Driver Safety Power Window Module, Rear Power Window Switch Left Handle side |
|
BRAKE SWITCH |
10 A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
SUNROOF2 |
20 A |
Sunroof Controller (Blind Motor) |
|
AIR BAG2 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
AIR BAG1 |
15 A |
SRS (Supplemental Restraint System) Control Module |
|
MEMORY |
10 A |
Driver IMS (Integrated memory system) Module, Driver/Passenger Power Outside Mirror, Rain Sensor, Head-Up Display, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch |
|
E-CALL |
10 A |
MTS (Mozen Telematics System) E-call Module |
|
MULTI MEDIA |
15 A |
Audio, Audio/Video & Navigation Head Unit |
|
SUNROOF1 |
20 A |
Sunroof Controller (Glass Motor) |
|
MODULE7 |
10 A |
ECM (Engine Control Module), Blower Relay, Hazard Switch, Multi Function Switch, Power Trunk Lid Unit, Driver Outside Handle Switch, Passenger Outside Handle Switch, Electronic Parking Brake Switch, Outside Mirror, Sport Mode Switch, UWB (Ultra Wide Band), Rain Sensor |
|
MODULE5 |
10 A |
BDC (Body Domain Contoller) |
|
MODULE8 |
10 A |
Overhead Console Lamp, Multi Function Switch, Sport Mode Switch, DAU |
|
MODULE2 |
10 A |
CCU (Central Communication Unit), Stop Lamp Switch, Console Switch |
|
MDPS*1 |
7.5 A |
Motor Driven Power Steering Unit |
|
A/C |
7.5 A |
Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
|
MODULE4 |
10 A |
Overhead Console Lamp (Lamp), Rear USB Charger, Rear Power Outlet, IBU (Integrated Body Control Unit), MTS (Mozen Telematics System) E-Call Module, Audio, Audio/Video & Navigation Head Unit, AMP (Amplifier), Surround View Monitor Unit, ADAS Parking ECU |
|
MODULE9 |
7.5 A |
CCNC (Connected Car Navigation Cockpit), WPC, DATC (Dual Automatic Temperature Control), ECM (Engine Control Module), FPM, Front Seat, ATM Shift Lever, AMP (Amplifier), LDC (Low DC-DC Converter), Head lamp |
|
CLUSTER |
10 A |
Instrument Cluster, Head-Up Display |
|
WASHER |
15 A |
Multifunction Switch |
|
START |
7.5 A |
B/Alarm Relay, Transmission Range Switch |
|
POWER OUTLET |
20 A |
Rear Power Outlet |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
USB CHARGER |
15A |
Rear Usb Charger, Front tray |
|
LDC |
10A |
Cluster, Head Up Display, MTC, Front tray, ADAS Park ECU, Rear Corner Radar |
|
POWER TRUNK |
30A |
Power Trunk Lid |
|
A/BAG IND |
7.5 A |
Instrument Cluster, Overhead Console Lamp (Lamp) |
* MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

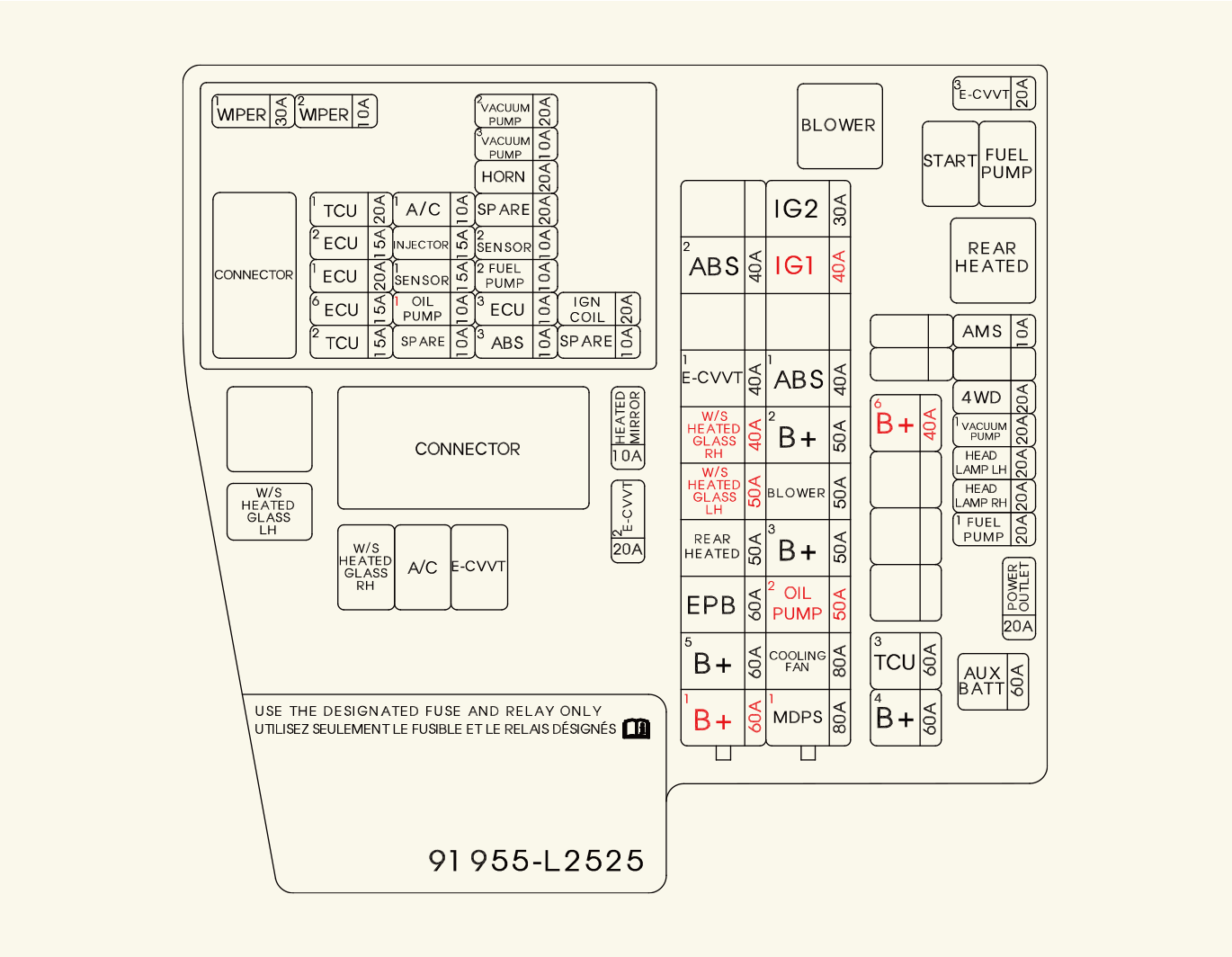

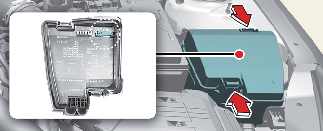

Engine compartment fuse panel
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
ABS2 |
30 A |
ESP (Electronic Stability Program) Control Module |
|
E-CVVT |
40 A |
E-CVVT Relay |
|
IG1 |
40 A |
PCB Block (ACC Relay, IG1 Relay) |
|
REAR DEFOGGER |
50 A |
Rear Defogger Relay |
|
PARKING BRAKE |
60 A |
ESP (Electronic Stability Program) Control Module |
|
B+5 |
60 A |
PCB Block (Engine Control Relay, Fuse - ECU2, TCU1, A/C1, B/A HORN, HORN, WIPER1) |
|
IG2 |
30 A |
Start Relay, PCB Block (IG2 Relay) |
|
ABS1 |
40 A |
ESP (Electronic Stability Program) Control Module |
|
B+2 |
50 A |
ICU Junction Block (Fuse - IBU1, AMP, IPS1, IPS2, IPS3, IPS4, IPS10) |
|
BLOWER |
50 A |
Blower Relay |
|
B+3 |
50 A |
ICU Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, IPS11) |
|
B+1 |
50 A |
ICU Junction Block (Fuse - MODULE1, CHILD LOCK, S/HEATER (RR), P/SEAT (PASS), SAFETY P/WINDOW (RH), P/SEAT (DRV), SAFETY P/WINDOW (LH)) |
|
COOLING FAN |
80 A |
Cooling Fan Motor |
|
MDPS1*1 |
80 A |
Motor Driven Power Steering Unit |
|
POWER OUTLET1 |
40 A |
PCB Block (Power Outlet Relay) |
|
W/S HTD GLASS RH |
40 A |
W/S Heated Glass Right Handle side Relay |
|
W/S HTD GLASS LH |
40 A |
W/S Heated Glass Left Handle side Relay |
|
B+4 |
60 A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - S/HEATER (FRT), TRUNK, DOOR LOCK, MODULE3, BRAKE SWITCH, SUNROOF2, AIR BAG2, SUNROOF1) |
|
AMS |
10 A |
Battery Sensor |
|
FUEL PUMP |
20 A |
Fuel Pump Relay |
|
A/C2 |
10 A |
Air Conditioner Control Module |
|
MIRROR HEATED |
10 A |
Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, Air Conditioner Switch |
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
POWER OUTLET1 |
40A |
PCB Block (Power Outlet Relay) |
|
W/S HEATED GLASS RH |
40A |
W/S Heated Glass Right Handle side Relay |
|
|
W/S HEATED GLASS LH |
40A |
W/S Heated Glass Left Handle side Relay |
|
|
TCU3 |
60A |
[Smartstream G 2.5 T-GDi] TCM (Transmission Control Module) |
|
|
B+4 |
60A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - MODULE3, AIR BAG2, SUNROOF1, SUNROOF2, |
|
|
S/HEATER (FRT), TRUNK, BRAKE SWITCH, DOOR LOCK) |
|||
|
ECU5 |
10A |
[Smartstream G 1.6 T-GDi] ECM (Engine Control Module) |
|
|
AMS |
10A |
Battery Sensor |
|
|
VACUUM PUMP1 |
20A |
[Smartstream G 2.5 T-GDi] Vacuum Relay |
|
|
4WD |
20A |
[Smartstream G 1.6 T-GDi] 4WD (4-Wheel Drive) ECU (Engine Control Unit) |
|
|
FUEL PUMP1 |
20A |
Engine Room Junction Block (Fuel Pump Relay) |
|
|
VACUUM PUMP2 |
10A |
[Smartstream G 2.5 T-GDi] ESC (Electronic Stability Control) Module |
|
|
E-CVVT3 |
20A |
[Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
|
|
HEATED MIRROR |
10A |
Air Conditioner Switch |
|
|
E-CVVT4 |
20A |
[Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
|
* MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
|
Relay Name |
Type |
|---|---|
|
Blower Relay |
MINI |
|
Start Relay |
MICRO |
|
Fuel Pump Re Relay |
MICRO |
|
Rear Heated Relay |
MINI |
|
W/S Heated Glass Left Handle side Relay |
MICRO |
|
W/S Heated Glass Right Handle side Relay |
MICRO |
|
E-CVVT Relay |
MICRO |
|
Air Conditioner Relay |
MICRO |

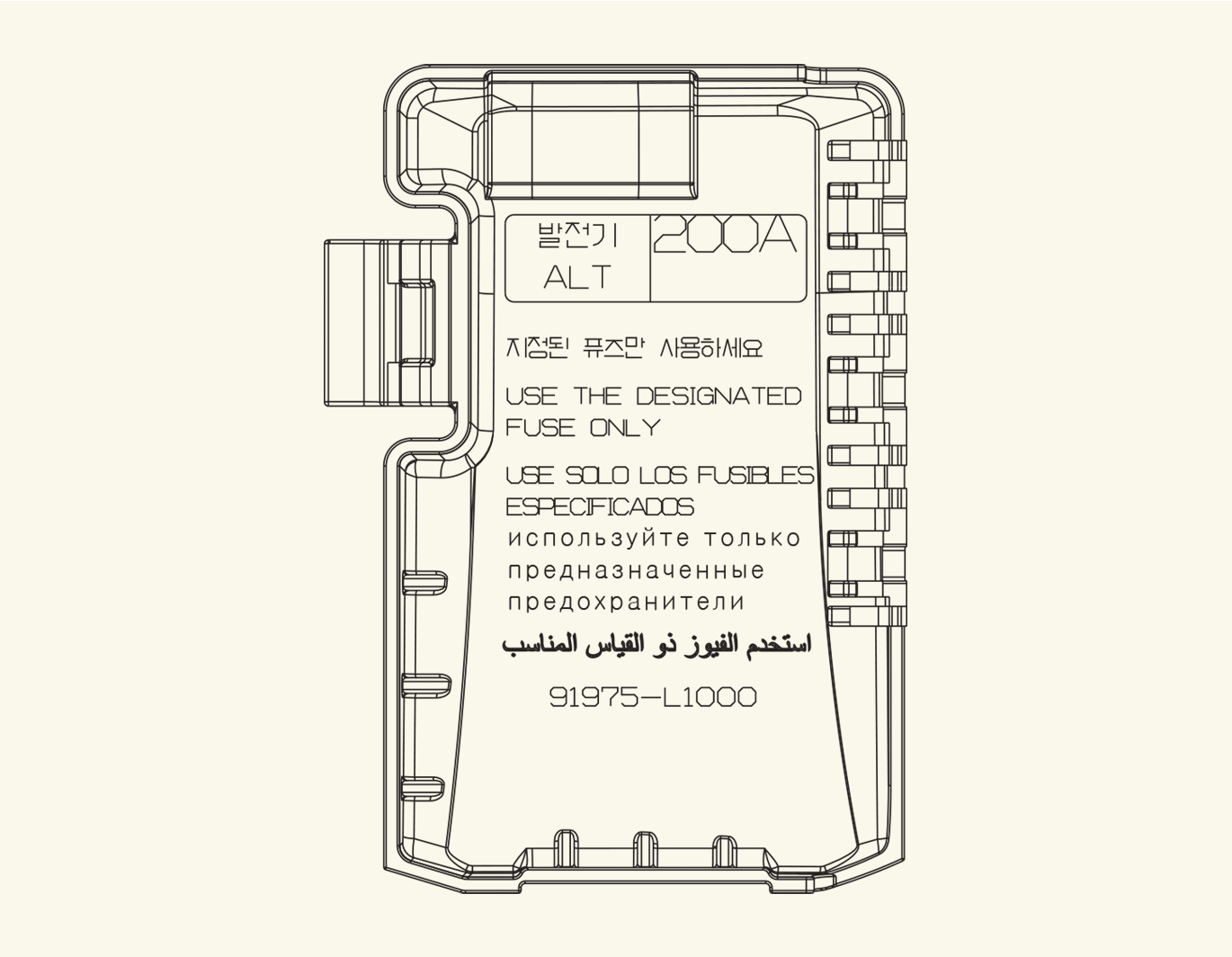

Battery terminal cover
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
