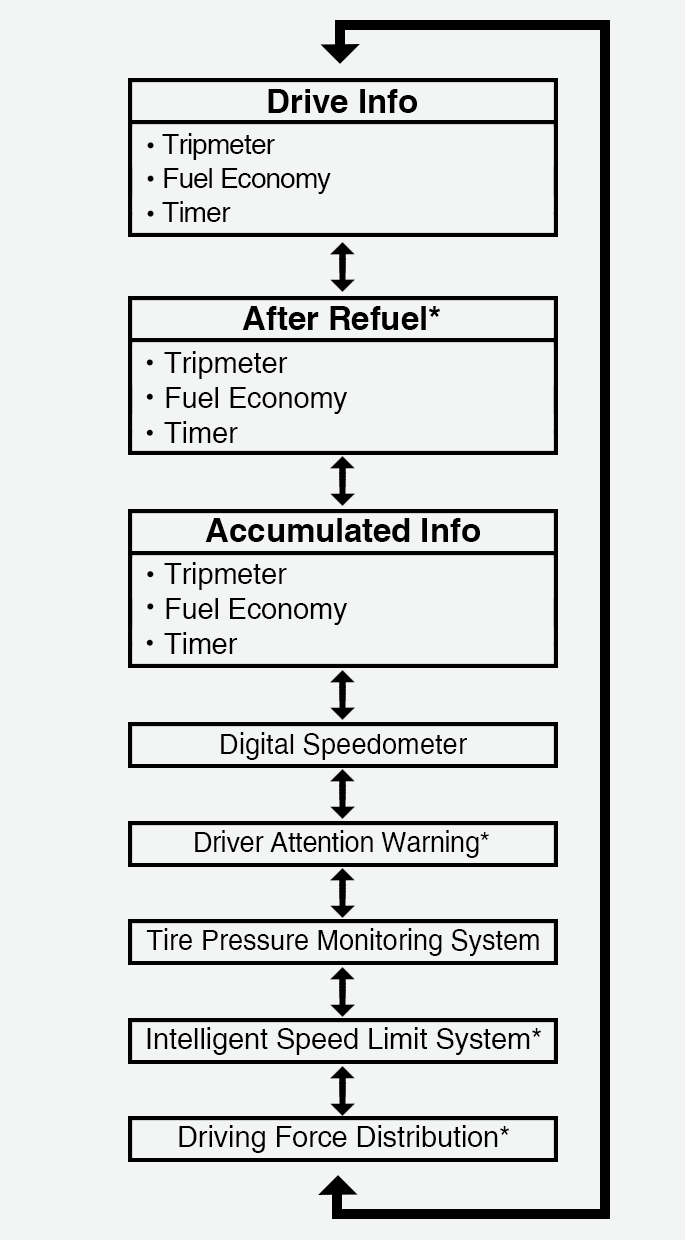

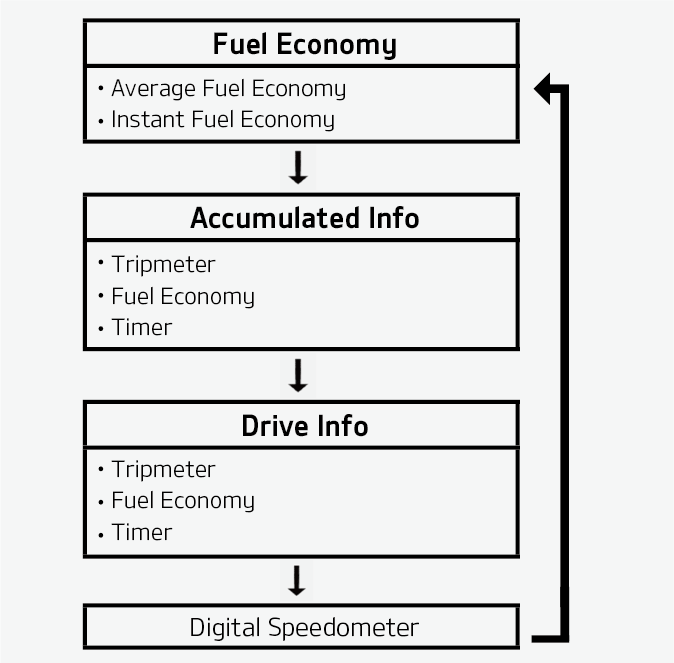

Trip Modes

Type A

Type B

*: if equipped

To change the trip mode, scroll the toggle the switch ( / ) on the steering wheel.

Fuel economy

This information is always displayed at the bottom centre of the Full LCD cluster.

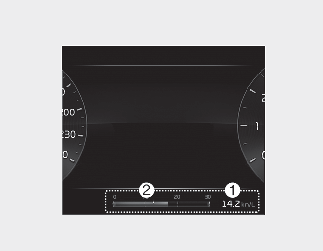

Average Fuel Economy (1)

• The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

  • Fuel economy range: 0 ~ 99.9 km/L, L/100 km or mpg

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 metres (0.03 miles) since the ignition switch or ENGINE START/STOP button is turned to ON.

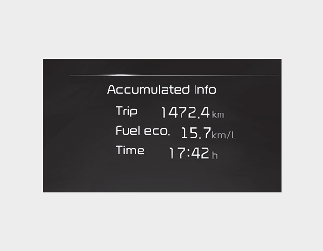

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency and the total driving time.

• Accumulated information is calculated after the vehicle has run for more than 300 metres.

• If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive Info display

This display shows the trip distance, the average fuel efficiency, and the total driving time information once per one ignition cycle.

• Fuel efficiency is calculated after the vehicle has run for more than 300 metres.

• The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.

• If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

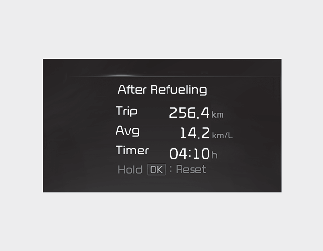

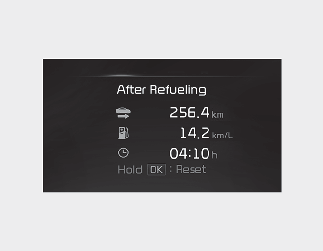

Information since refuelling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the totaldriving time) since refuelling.

Type A

Type B

• Fuel efficiency is calculated after the vehicle has run for more than approximately 300 m (0.19 miles).

• The Driving Information will be reset 4 hours after ignition has been turned off. So, when the vehicle ignition is turned on within 4 hours, the information will not be reset.

• When driving after refueling, the information will be automatically reset.

• If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

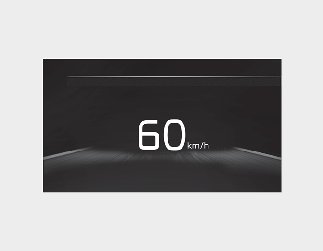

Digital speedometer

This digital speedometer display shows the speed of the vehicle.
