Remote Smart Parking Assist operation status

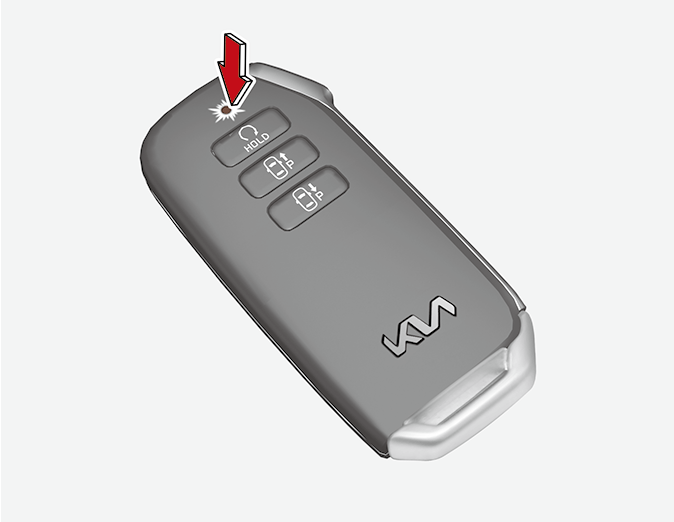

Smart key LED/Hazard warning light
The operation status of Remote Smart Parking Assist is indicated by the smart key LED and the hazard warning light.
|
Operation Status |
Smart Key LED |
|
|---|---|---|
|
Remote Moving Forward/Backward in operation |
 |
Green LED Continuously blinks |
|
Remote Moving Forward/Backward paused |
Red LED Continuously blinks |
|
|
Remote Moving Forward/Backward operation off |
Red LED illuminates for 4 seconds and then turns off |
|
|
Remote Moving Forward/Backward operation complete |
Green LED illuminates for 4 seconds and then turns off |
|
* Operation status by the hazard warning light may not be applicable based on the regulation of your country.
* If the smart key is not within the operating range from the vehicle (approximately 4 m (13 ft.)), the smart key LED will not illuminate or blink. Use the smart key within the operating range.
