* The system’s actual appearance and layout may differ depending on the vehicle model and specification.

1. RADIO button

   • Press to display the radio mode selection window.

   • When the mode selection window displays, turn the [TUNE] knob to select the desired mode and then press the knob.

   • When the Mode popup is not selected in [MENU/CLOCK] ► Mode popup, press the [RADIO] button on the control panel to change the mode. Each time you press the [RADIO] button on the control panel, the mode switches to radio FM ► AM in order

2. MEDIA button

   • Play content from a media storage device.

3. FAV button

   • While listening to the radio, press to move to next page of the preset list.

4. POWER button/VOL knob

   • Press to turn the system on or off.

   • Turn to the left or right to adjust the system sound volume.

5. SEEK/TRACK button

   • Change the station/track/file.

   • While listening to the radio, press and hold to search for a station.

   • While playing media, press and hold to rewind or fast forward.

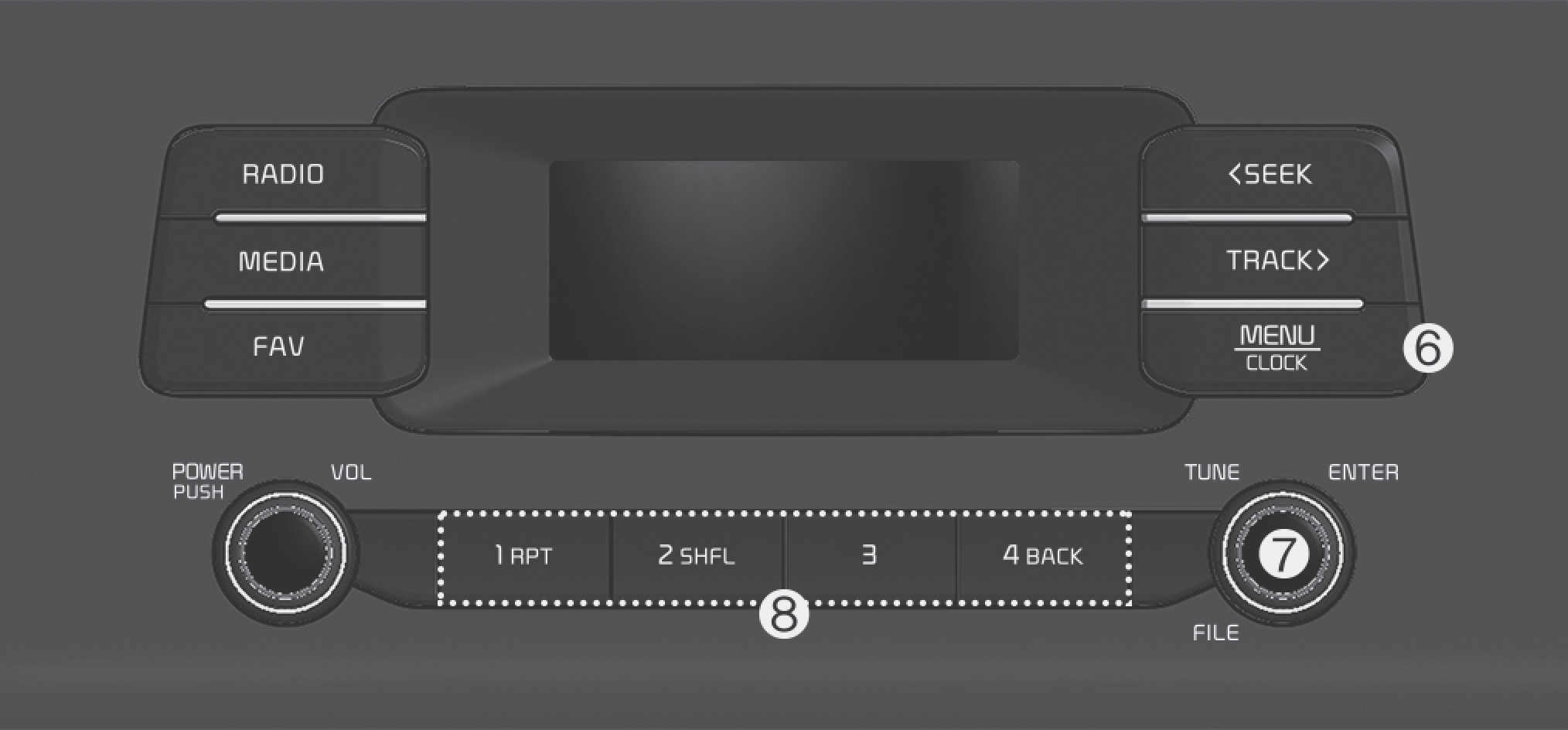

* The system’s actual appearance and layout may differ depending on the vehicle model and specification.

1. MENU button/CLOCK button

   • Press to access the menu screen for the current mode.

   • Press and hold to access the time setup screen.

2. TUNE knob/FILE knob/ENTER button

   • While listening to the radio, turn to adjust the frequency.

   • While playing media, turn to search for a track/file.

   • While searching by turning the knob, press to select the current track/file.

3. Number buttons (1 RPT~4 BACK)

   • While listening to the radio, press to listen to a saved radio station.

   • While listening to the radio, press and hold to save the current radio station to the preset.

   • In the USB mode, press the [1 RPT] button to change the repeat play mode. Press the [2 SHFL] button to change the shuffle play mode.

   • Press the [4 BACK] button to return to the previous screen (except for the radio preset list).

   Type B



   (With Bluetooth® Wireless Technology)

   * The system’s actual appearance and layout may differ depending on the vehicle model and specification.

4. AUDIO button

   • Press to display the radio/media mode selection window.

   • When the mode selection window displays, turn the [TUNE] knob to select the desired mode and then press the knob.

   • When the Mode popup is not selected in [MENU/CLOCK] ► Mode popup, press the [AUDIO] button on the control panel to change the mode. Each time you press the [AUDIO] button on the control panel, the mode switches to radio ► media in order.

5. PHONE button

   • Press to start connecting a mobile phone via Bluetooth.

   • After a Bluetooth phone connection is made, press to access the Bluetooth phone menu.

6. FAV button

   • While listening to the radio, press to move to next page of the preset list.

7. POWER button/VOL knob

   • Press to turn the system on or off.

   • Turn to the left or right to adjust the system sound volume.

8. SEEK/TRACK button

   • Change the station/track/file.

   • While listening to the radio, press and hold to search for a station.

   • While playing media, press and hold to rewind or fast forward (except for Bluetooth audio mode).

   Type B



   (With Bluetooth® Wireless Technology)

   * The system’s actual appearance and layout may differ depending on the vehicle model and specification.

9. MENU button/CLOCK button

   • Press to access the menu screen for the current mode.

   • Press and hold to access the time setup screen.

10. TUNE knob/FILE knob/ENTER button

    • While listening to the radio, turn to adjust the frequency.

    • While playing media, turn to search for a track/file (except for Bluetooth audio mode).

    • While searching by turning the knob, press to select the current track/file (except for the Bluetooth audio mode).

11. Number buttons (1 RPT~4 BACK)

    • While listening to the radio, press to listen to a saved radio station.

    • While listening to the radio, press and hold to save the current radio station to the preset.

    • In the USB/Bluetooth audio modes, press the [1 RPT] button to change the repeat play mode. Press the [2 SHFL] button to change the shuffle play mode.

    • Press the [4 BACK] button to return to the previous screen (except for the radio preset list).
