Wireless Smart Phone Charging System (if equipped)

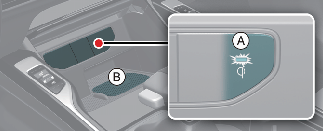

[A]: Indicator, [B]: Charging pad
Firmly close all doors, and make sure to press the ENGINE START/STOP button. To start wireless charging, place the smart phone equipped with wireless charging function on the wireless charging pad.
For best wireless charging results, place the smart phone on the center of the charging pad.
The wireless charging system is designed for one smartphone equipped with QI only. Please refer to the smartphone accessory cover or the smartphone manufacturer’s homepage to check whether your smart phone supports QI function.
If any metallic object, such as a coin, is located between the wireless charging system and the smart phone, the charging may be disrupted. The metallic object may heat up.
Wireless Smart Phone Charging
If the wireless charging does not work, gently move your smart phone around the pad until the charging indicator light turns yellow. Depending on the smart phone, the charging indicator light may not turn green even after the charging is complete.
If the wireless charging is not functioning properly, the orange light will blink and flash for ten seconds and then turn off. Remove the smart phone from the pad and replace it on the pad again, or double check the charging status.
If you leave the smart phone on the charging pad when the vehicle ignition is in OFF, the vehicle will alert you through warning messages and sound (applicable for vehicles with voice guidance function) after the 'Good bye' function on the instrument cluster ends.
For some manufacturers' smart phones, the system may not warn you even though the smart phone is left on the wireless charging unit. This is due to the characteristic of the smart phone and not a malfunction of the wireless charging system.
Distracted Driving
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injury or death. The driver's primary responsibility is in the safe and legal operation of a vehicle. Any use of handheld devices, other equipment, or vehicle systems that take the driver's eyes, attention, and focus away from the safe operation of a vehicle are not permissible by law. These should never be used during the operation of the vehicle.
Liquid in Wireless Charging System
To prevent liquid from damaging the wireless smart phone charging system, be sure not to spill liquid over the charging system.
Metal in Wireless Charging System
If any metallic object such as a coin is located between the wireless charging system and the smartphone, charging may be disrupted. The metallic object may heat up and potentially damage the charging system. If there is any metallic object between the smart phone and the charging pad, immediately remove the smart phone. Remove the metallic object after it has cooled.
-
When the interior temperature of the wireless charging system rises above a set temperature, the wireless charging will cease to function. After the interior temperature drops below the threshold, the wireless charging function will resume.
-
Wireless charging may not function properly when there is a heavy accessory cover on the smart phone.
-
Wireless charging will stop when using the wireless smart key search function to prevent radio wave disruption.
-
Wireless charging will stop when the smart key is moved out of the vehicle with the vehicle engine ON.
-
Wireless charging will stop when any of the doors are opened (applicable for vehicles equipped with smart keys).
-
Wireless charging will stop when the vehicle is turned OFF.
-
Wireless charging will stop when the smart phone is not in complete contact with the wireless charging pad.
-
Items equipped with magnetic components such as a credit card, telephone card, bankbook, transportation ticket, etc. may become damaged during wireless charging.
-
Place the smart phone on the center of the charge pad for best results. The smart phone may not charge when placed near the rim of the charging pad. When the smartphone is charged, it may heat up excessively.
-
For smartphones without built-in wireless charging system, an appropriate accessory must be used.
-
Certain smart phones may display messages on weak current. This is due to the characteristics of that smartphone, and is not a malfunction of the wireless charging system.
-
The indicator light of some manufacturers' smart phones may still be orange after the smart phone is fully charged. This is due to the characteristic of the smart phone and not a malfunction of the wireless charging system.
-
When any smart phone without a wireless charging function or a metallic object is placed on the charging pad, a noise may be heard. This small noise is due to the vehicle discerning compatibility of the object placed on the charging pad. It does not affect your vehicle or the smart phone in any way.
-
The wireless mobile phone charging system may not support certain mobile phones that, are not verified for the Qi specification (
).
-
When placing your smart phone on the charging pad, position the phone in the middle of the pad for maximum efficiency.
If your smart phone is off to the side, the charging speed may slow down and your smartphone may heat up.
-
When charging some smart phones with a self-protection feature, the wireless charging speed may decrease, and the charging may stop.
-
A smart phone that supports wireless charging can only be charged wirelessly.
-
The wireless charging pad has an internal cooling system which can create noise to keep your phone cool while it charges.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following conditions:
-
This device may not cause interference, and
-
This device must accept any interference, including interference that may cause undesired operation of the device.
