LCD display modes

Mode
	Trip Computer	Driving Assist	User Settings	Information	Master warning
Up/Down	Fuel Economy	Lane Keeping Assist Lane Following Assist	Driver Assistance	Digital Speedometer	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info		Lights
	Drive Info		Door
	Auto Stop	Driver Attention Warning	Convenience
	Energy flow	Intelligent Speed Limit Warning	Service interval
			Theme Selection
			Other features
			Language
			Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* For controlling the LCD modes, refer to More Details.

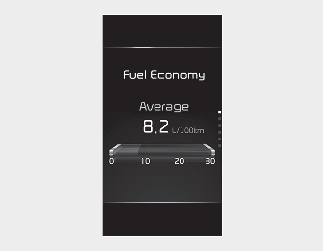

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

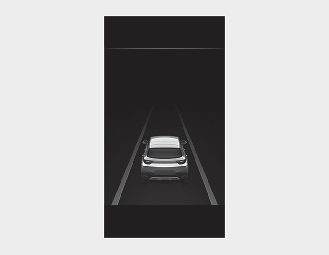

Driving Assist mode (if equipped)

This mode displays the state of:

- Smart Cruise Control (if equipped)

- Lane Keeping Assist (if equipped)

- Lane Following Assist (if equipped)
Driver Attention Warning (if equipped)
Intelligent Speed Limit Warning (if equipped)

* For more details, refer to each system information in "Driving your vehicle" on page 5-1.

Setting

To change the Driver Assistance settings, press the OK button on the steering wheel for more than 1 second when the Driving Assist mode is displayed.

WARNING

While driving, please do not change the setting mode. It may distract your attention and cause the accident.

Item	Explanation
SCC Reaction	Fast/Normal/Slow
Driving Assist	Speed Limit Warning
Warning Timing	Normal/Late
Driver Attention Warning	Leading Vehicle Departure Alert/Inattentive Driving Warning
Forward Safety	Active Assist/Warning Only/Off
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off
Blind-Spot Safety	Active Assist/Warning Only/Off
Parking Safety	Parking Distance Warning - Auto ON/Rear Cross-Traffic Safety

NOTICE

The information provided may differ depending on which functions are applicable to your vehicle.

Information

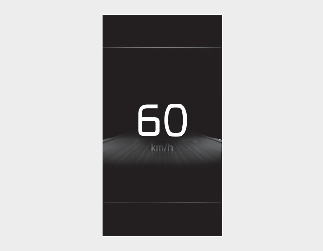

Digital speedometer

This digital speedometer display shows the speed of the vehicle.

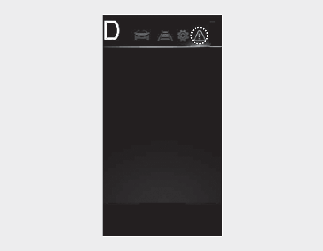

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision Warning malfunction (if equipped)
Blind-Spot Collision Warning radar blocked (if equipped)
Intelligent Speed Limit Warning malfunction (if equipped)
High Beam Assist malfunction (if equipped)
Smart Cruise Control malfunction (if equipped)
Smart Cruise Control radar blocked (if equipped)
LED headlamp malfunction (if equipped)
TPMS failure, low pressure, etc.

At this time, a Master Warning icon () will appear on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

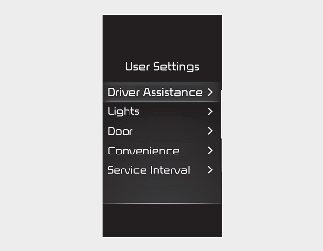

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Lights
Door
Convenience
Service Interval
Theme Selection
Other
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

Shift to P to edit settings/Engage parking brake to edit settings

This warning message appears if you try to adjust the User Settings while driving.

Automatic Transmission/Dual Clutch Transmission

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Manual Transmission

For your safety, change the User Settings after engaging the parking brake.

1. Driver Assistance (if equipped)

Items	Explanation
SCC Reaction	Fast/Normal/Slow To adjust the sensitivity of Smart Cruise Control. * For more details, refer to More Details.
Driving Assist	Speed Limit Warning To activate or deactivate Intelligent Speed Limit Warning. * For more details, refer to More Details.
Warning Timing	Normal/Late To select the Warning time.
Driver Attention Warning	Leading Vehicle Departure Alert/Inattentive Driving Warning To select the function. * For more details, refer to More Details.
Forward Safety	Active Assist/Warning Only/Off To select the functions. * For more details, refer to More Details.
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off To select the functions. * For more details, refer to More Details.
Blind-Spot Safety	Active Assist/Warning Only/Off To select the function. * For more details, refer to More Details / More Details.
Parking Safety	Parking Distance Warning - Auto ON To select the function. Rear Cross-Traffic Safety To select the function. * For more details, refer to More Details and More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

2. Lights

Items	Explanation
One touch turn indicator	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Head lamp delay	To activate or deactivate the headlight delay function.
HBA (High Beam Assist) (if equipped)	To activate or deactivate High Beam Assist.

Items

Explanation

One touch turn indicator

Off: The one touch turn signal function will be deactivated.
3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Head lamp delay

To activate or deactivate the headlight delay function.

HBA (High Beam Assist) (if equipped)

To activate or deactivate High Beam Assist.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

Items	Explanation
Auto lock	Enable on shift (if equipped with Automatic Transmission/Dual Clutch Transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (with the engine ON, it is activated.) Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph). Off : The auto door lock operation will be deactivated.
Auto unlock	On shift to P (if equipped with Automatic Transmission/Dual Clutch Transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (with the engine ON, it is activated.) Vehicle off/On key out : All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position or the ignition key is removed from the ignition switch. Off : The auto door unlock operation will be canceled.

Items

Explanation

Auto lock

Enable on shift (if equipped with Automatic Transmission/Dual Clutch Transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (with the engine ON, it is activated.)
Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
Off : The auto door lock operation will be deactivated.

Auto unlock

On shift to P (if equipped with Automatic Transmission/Dual Clutch Transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (with the engine ON, it is activated.)
Vehicle off/On key out : All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position or the ignition key is removed from the ignition switch.
Off : The auto door unlock operation will be canceled.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Convenience (if equipped)

Items	Explanation
Rear Occupant Alert	If this item checked, the Rear Occupant Alert will be activated.
Wiper/Lights display	If this item checked, the Wiper/Lights display will be activated.
Icy road warning	If this item is checked, the Icy road warning display will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Service interval

Items	Explanation
Enable service interval	If this item is checked, the Service Interval function will be activated.
Adjust interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

6. Theme Selection

Items	Explanation
Theme selection	Theme A/Theme B/Theme C To select the theme of instrument cluster LCD.

Items

Explanation

Theme selection

Theme A/Theme B/Theme C

To select the theme of instrument cluster LCD.

7. Other features

Items	Explanation
Fuel economy auto reset	Off: The average fuel economy will not reset. After vehicle On/After refuelling : The average fuel economy will reset automatically after vehicle on/refueling.
Speedometer unit	km/h, MPH To select the Speedometer unit.
Fuel economy unit	L/100km, km/L or US gallon, UK gallon To select the Fuel economy unit.
Temperature unit	°C/°F To select the Temperature unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Language

Items	Explanation
Language	To select language.

9. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
