Type A

Type B

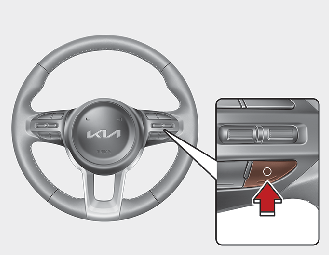

1. Press the Driving Assist button to turn the function on. The CRUISE indicator in the instrument cluster will appear.

2. Accelerate to the desired speed. Smart Cruise Control speed can be set as follows:

   • Push down the SET- switch and hold it. Your vehicle set speed is below 10 km/h (5 mph) and over 180 km/h (110 mph).

3. The cruise indicator light will appear. distance indicator on the cluster is appeared and the CRUISE indicator is illuminated continuously.

4. If there is no vehicle in front of you, the set speed will be maintained, but if there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead. If the vehicle ahead accelerates, your vehicle will travel at a steady cruising speed after accelerating to the set speed.

NOTICE

• If your driving speed is between 10~ 30 km/h (5~ 20 mph) when you press the Driving Assist button, Smart Cruise Control speed will be set to 30 km/h (20 mph).

• The Driving Assist button symbol may be different per vehicle such as (/).

Each time the Vehicle Distance button is pressed, the Vehicle Distance changes as follows:

NOTICE

• If you drive at 90 km/h (56 mph), the distance is maintained as follows:

  • Distance 4 - approximately 52.5 m (172 ft.)

  • Distance 3 - approximately 40 m (130 ft.)

  • Distance 2 - approximately 32.5 m (106 ft.)

  • Distance 1 - approximately 25 m (82 ft.)

• The distance is set to the last set distance when the engine is restarted, or when the function was temporarily canceled.

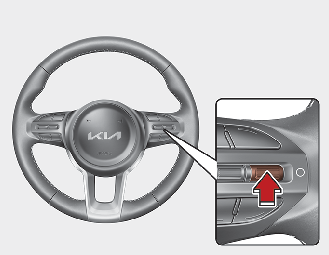

• Push up the RES+ switch, and release it immediately. The cruising speed will increase by 1 km/h (1 mph) each time the switch is operated in this manner.

• Push up the RES+ switch, and hold it while monitoring the set speed on the cluster. The cruising speed will increase by 10 km/h or 5 mph each time the switch is operated in this manner. Release the switch when the desired speed is shown, and the vehicle will accelerate to that speed. You can increase the set speed to 180 km/h (110 mph).

WARNING

Check the driving condition before using the RES+ switch. Driving speed may sharply increase when you push up and hold the RES+ switch.

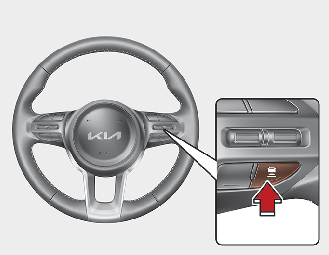

• Push down the SET- switch, and release it immediately. The cruising speed will decrease by 1 km/h (1 mph) each time the switch is operated in this manner.

• Push down the SET- switch, and hold it while monitoring the set speed on the cluster. The cruising speed will decrease by 10 km/h or 5 mph each time the switch is operated in this manner.

• Release the switch at the speed you want to maintain. You can decrease the set speed to 30 km/h (20 mph).

Type A

Type B

Press the (O) button or depress the brake pedal temporarily to cancel Smart Cruise Control.

If any method other than the switch was used to cancel cruising speed and the function is still activated, the cruising speed will automatically resume when you move the switch up. If you push up the RES+ switch, the speed will resume to the recently set speed. Vehicle speed must be above 10 km/h (5 mph) for the function to resume.

WARNING

Check the driving condition before move the switch. Driving speed may sharply increase or decrease when you move the switch.

Type A

Type B

Press the Driving Assist button to turn Smart Cruise Control off.

NOTICE

If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Smart Cruise Control. However Manual Speed Limit Assist will turn on.
