Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)

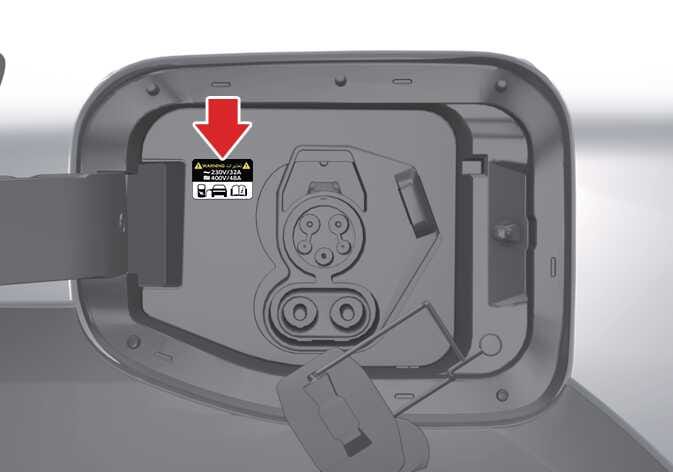

1. After opening the charging door, check the charging symbol at the bottom of the warning label.

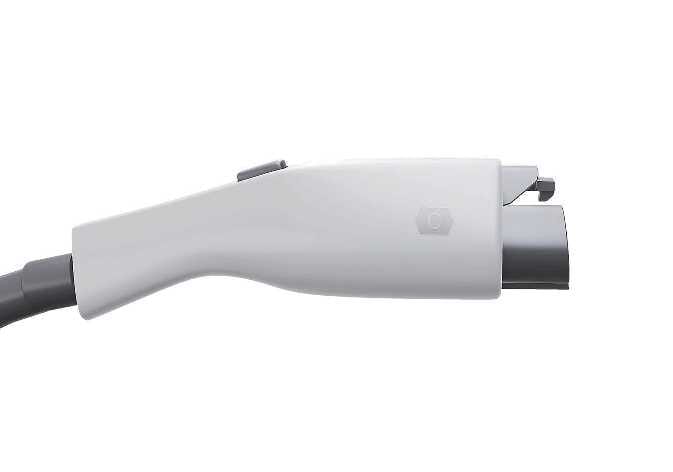

2. Check the charging connector symbol of the AC and Trickle charger cable.

3. After checking the alphabet letter of the charging symbol, proceed the charging step.

   Refer to How to check the symbol on the charging label.

4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

: Depending on your region, this cable may not be provided in your vehicle.

Precautions for DC charging (DC charging)

1. After opening the charging door, check the charging symbol at the bottom of the warning label.

2. Check the charging connector symbol at the high speed charging station.

3. After checking the alphabet letter of the charging symbol, proceed the charging step.

   Refer to How to check the symbol on the charging label.

4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

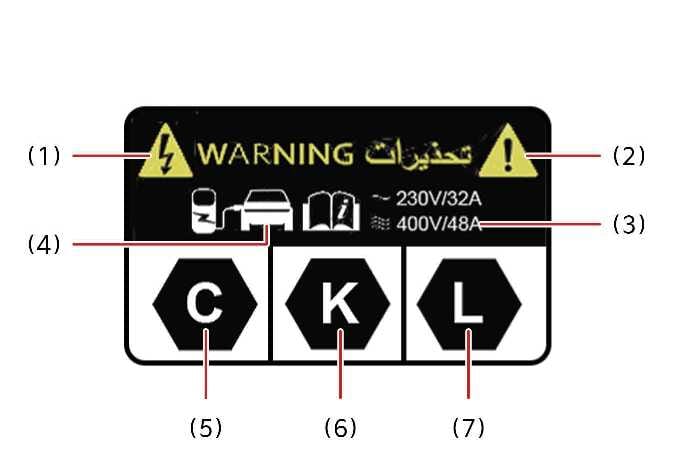

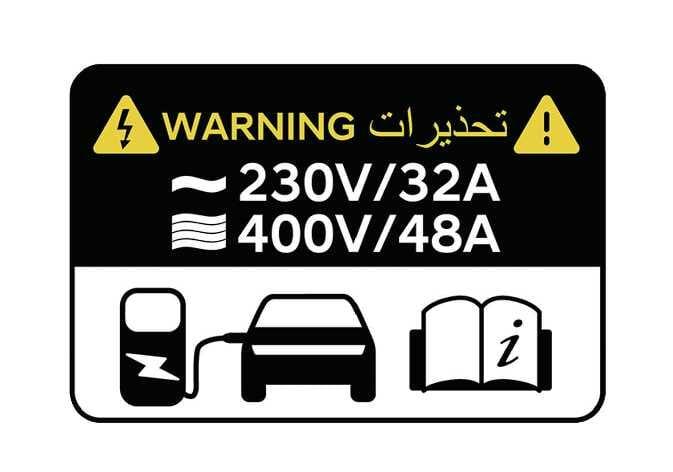

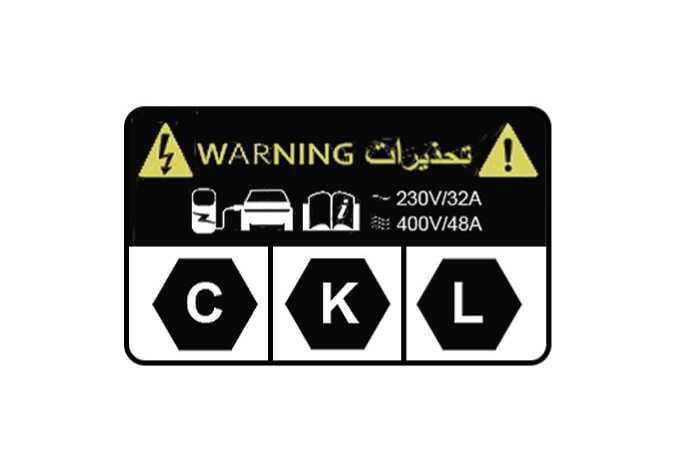

Electric charging label

N_QVe27_B03_012_E N_QVe27_B03_018_E

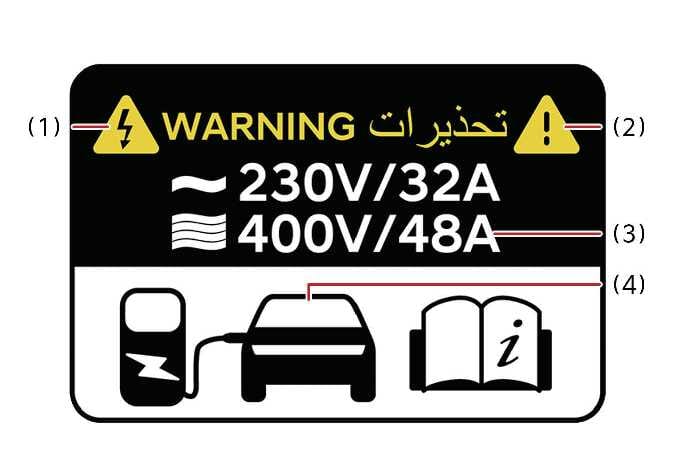

Warning for high voltage Symbol for charging door Charging voltage and current ( ): AC Single phase ( ): AC 3 phase For further details, refer to How to check the symbol on the charging label. (5)–(7): Symbols for charging type. For further details, refer to How to check the symbol on the charging label.

Electric charging label symbol table (For Europe)

AC and Trickle charger* charging

: Depending on your region, this cable may not be provided in your vehicle.

Supply type	Standard	Configuration	Type of Accessory	Voltage range	Identifier
AC	EN 62196-2	TYPE 2	Vehicle connector and vehicle inlet	≤480V RMS

DC charging

Supply type	Standard	Configuration	Type of Accessory	Voltage range	Identifier
DC	EN 62196-3	FF	Vehicle connector and vehicle inlet	50V to 500V
				200V to 920V
