Wipers and washers

The wipers and washers remove foreign substances from the windscreen and rear window to help maintain visibility.

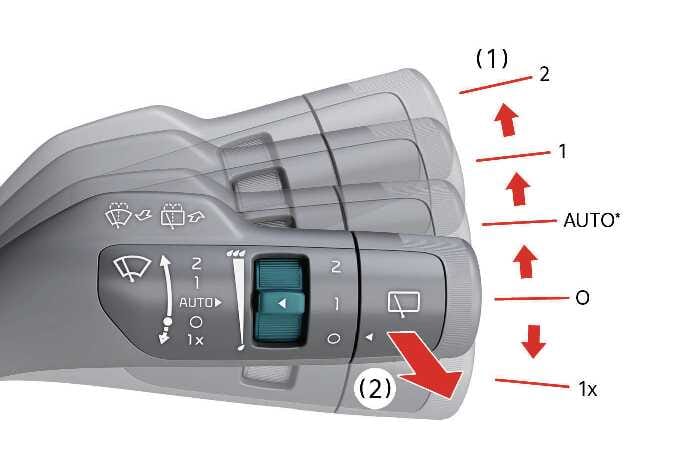

Figure 1. Type A
N_QVe27_B05_011_E

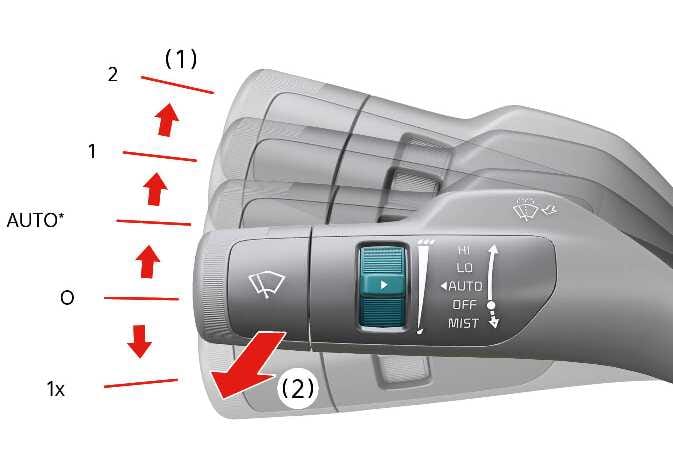

Figure 2. Type B
N_QVe27_D05_036_ER

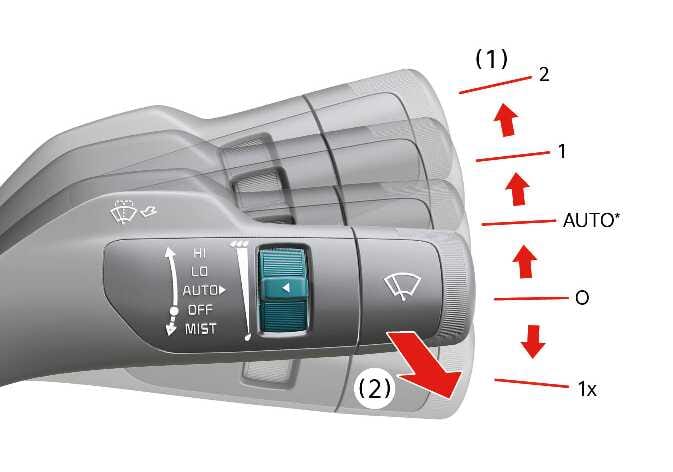

Figure 3. Type C
N_QVe27_D05_037_ER

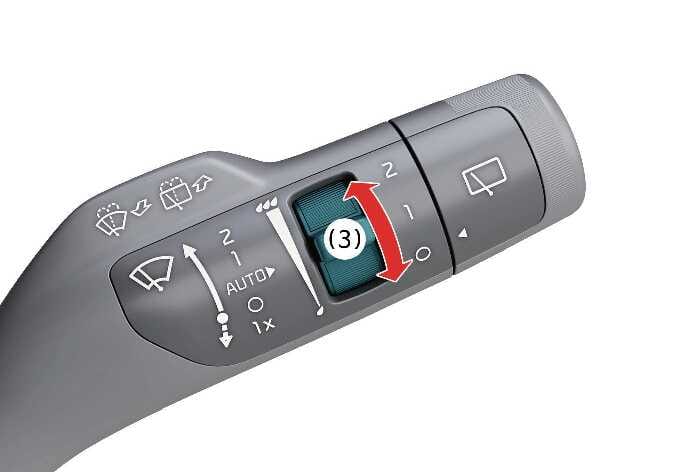

Figure 4. Type A
N_QVe27_B05_012_E

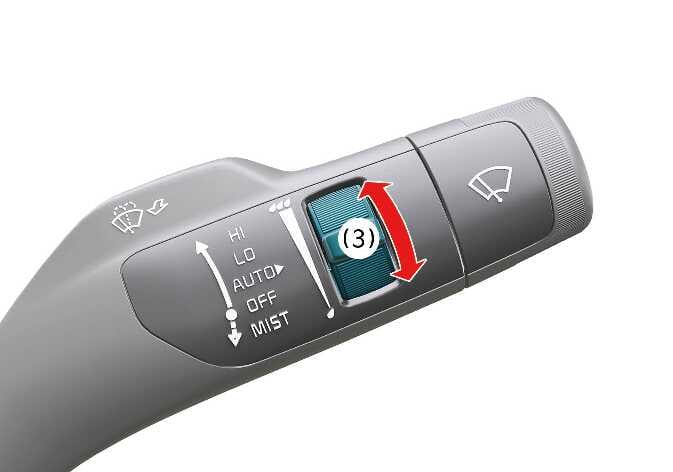

Figure 5. Type B
N_QVe27_D05_038_ER
Figure 6. Type C
N_QVe27_D05_038_ER

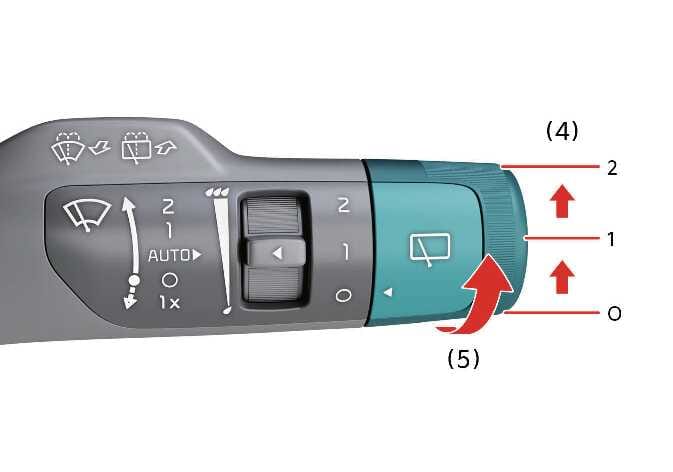

Figure 7. Type A
N_QVe27_B05_013_E

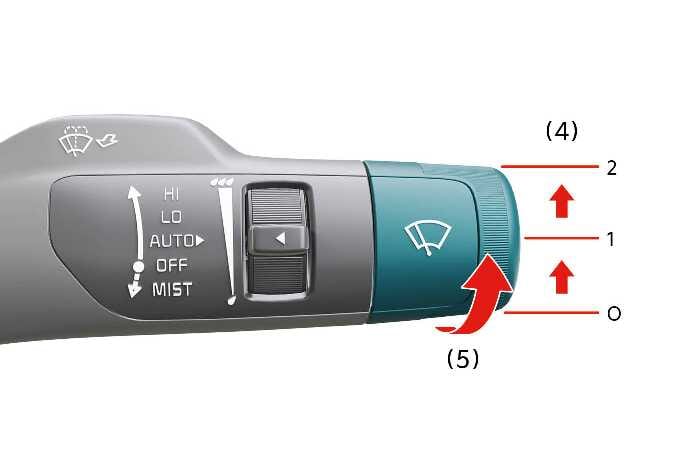

Figure 8. Type B
N_QVe27_D05_040_ER

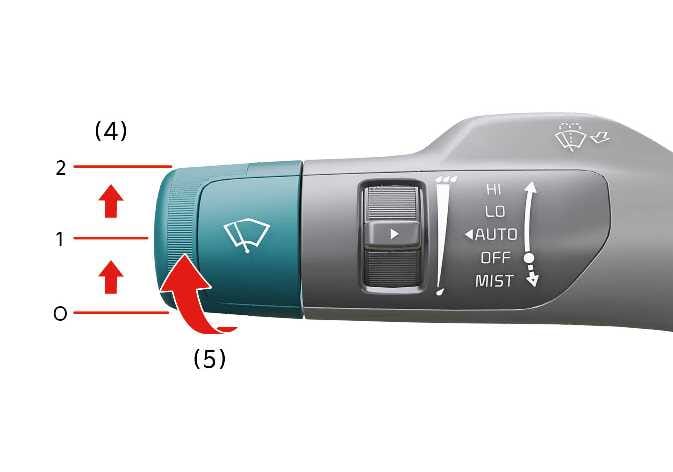

Figure 9. Type C
N_QVe27_D05_041_ER

  1. Wiper speed control

    • MIST/1x: Single wipe

    • OFF/0: Off

    • INT/---: Intermittent wipe

    • INT/AUTO *: Intermittent control/Automatically controlled wipe

    • LO/1: Low wiper speed

    • HI/2: High wiper speed

  2. Wash with brief wipes (pull lever toward you)

  3. Intermittent control and AUTO control wipe time adjustment*

  4. Rear wiper/washer control

    • HI/2: Continuous wipe

    • LO/1: Intermittent wipe

    • OFF/0: Off

  5. Rear wash with brief wipes (push lever away from you)

*: if equipped

Windscreen wipers

When the vehicle is in ON position, operate the windscreen wipers as follows:

  • MIST/1x: For a single wiping cycle, move the lever to this position and release it. If the lever is held in this position, wipers will operate continuously.

  • OFF/0: Wiper is not in operation.

  • INT/---: Wiper operates intermittently at the same wiping intervals. Use this mode in light rain or mist. To change the speed setting, turn the speed control knob.

  • LO/1: Normal wiper speed

  • HI/2: Fast wiper speed

WARNING

Do not use the washer in freezing temperatures before warming the windscreen with the defroster, as the washer solution could freeze on the windscreen and obscure your view.

NOTE

If there is a heavy accumulation of snow or ice on the windscreen, do not drive until you defrost the windscreen for about 10 minutes, or remove the snow and ice before using the windscreen wipers to ensure proper operation. If you do not remove the snow and ice before using the wiper and washer, you may damage the wiper and washer system.

NOTE

If a communication malfunction occurs in the wiper system and the wipers do not operate normally, set the wiper switch to the LO/1 position. The wipers will operate at a constant LO/1 speed. If this occurs, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partn er.

When the wiper switch is in the HI/2 position, the wiper speed may gradually decrease as rainfall lessens and friction increases. When rainfall increases again and friction decreases, the wiper speed will return to normal.

TIP

The infotainment system may change after software updates. For more information, refer to the user’s manual provided in the infotainment system and the quick reference guide.

TIP

If you operate the wipers whilst driving on snowy roads, the wipers may stop due to snow buildup on your windscreen. This is normal and not a failure, but a safety feature to prevent vehicular accidents and wiper damage from overloading the wiper motor. If the wipers stop, remove snow accumulated on the top or bottom of the windscreen before using the wipers.
