Rear windscreen wiper and washer operation

The rear windscreen wiper and washer switch is located at the end of the lever.

  • To operate the rear wiper and washer, turn the switch to the desired position.

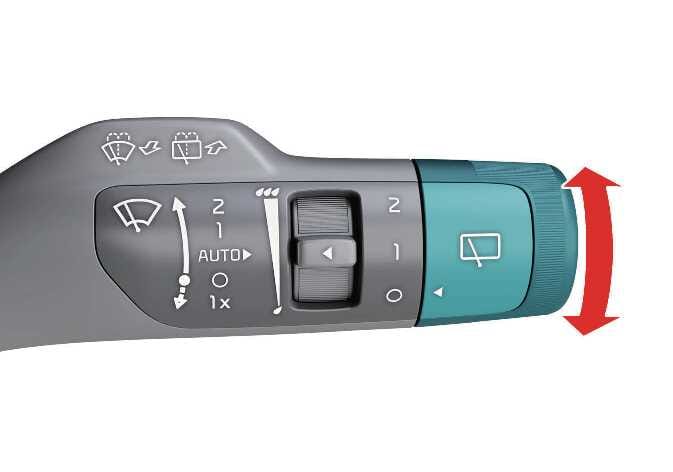

    Figure 1. Type A
    N_QVe27_B05_016_E

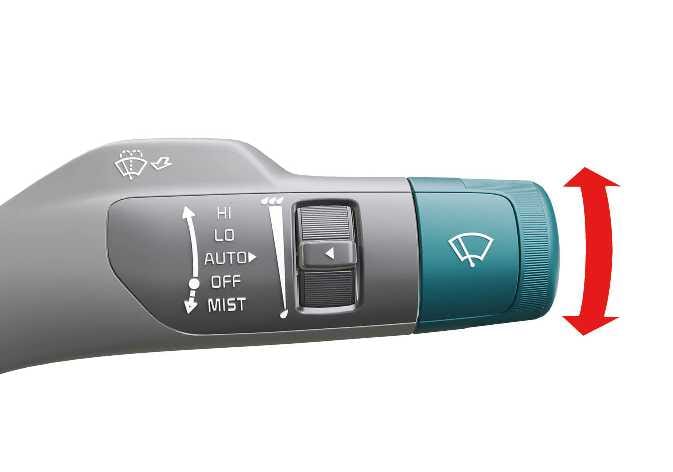

    Figure 2. Type B
    N_QVe27_D05_046_ER

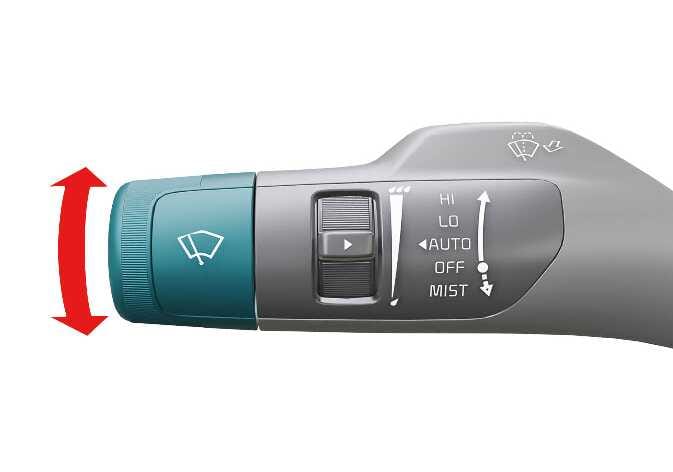

    Figure 3. Type C
    N_QVe27_D05_047_ER

    • HI/2: Normal wiper operation

    • LO/1: Intermittent wiper operation

    • OFF/0: Wiper is not in operation

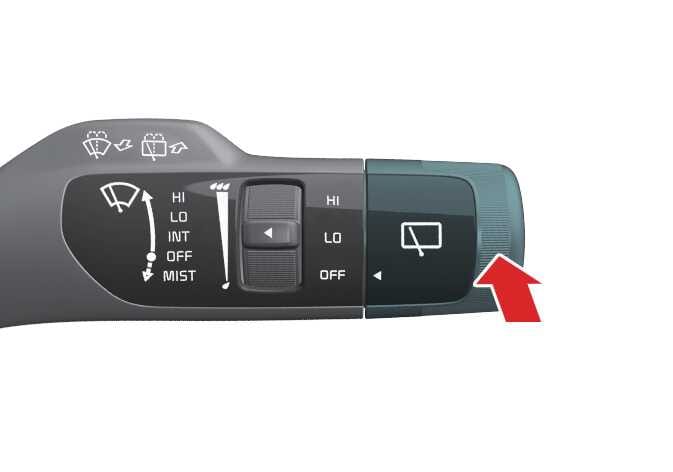

  • Push the lever away from you to spray rear washer fluid and to run the rear wipers several times.
    OAYI056012L

    The spray and wiper operation will continue until you release the lever.

    When you activate the front wiper and shift to R (Reverse), the rear wiper will activate once to provide better visibility.

    The rear wiper operates whilst the vehicle is in R (Reverse) with the front wiper on.

    Select Settings > Vehicle > Convenience > Auto Rear Wiper (in R) from the infotainment system.
