Removal/Reinstall

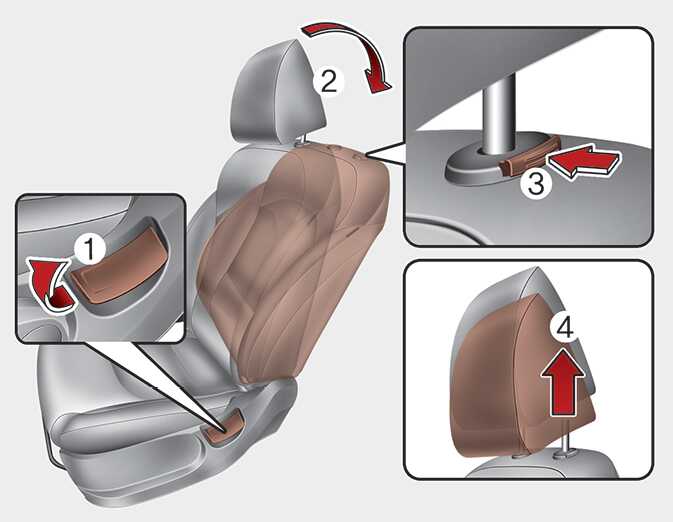

Figure 1. Type A
OBD031012

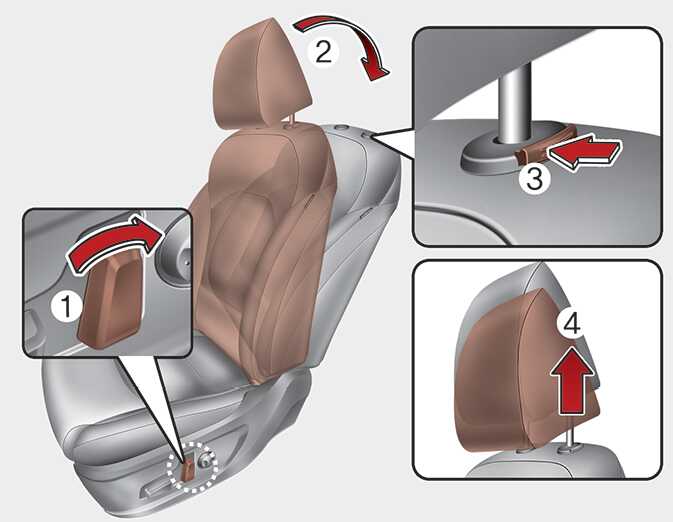

Figure 2. Type B
OBD031011

To remove the headrest:

  1. Recline the seatback (2) with the recline lever or switch (1).

  2. Raise headrest as far as it can go.

  3. Press the headrest release button (3) while pulling the headrest up (4).

    WARNING

    NEVER allow anyone to ride in a seat with the headrest removed.

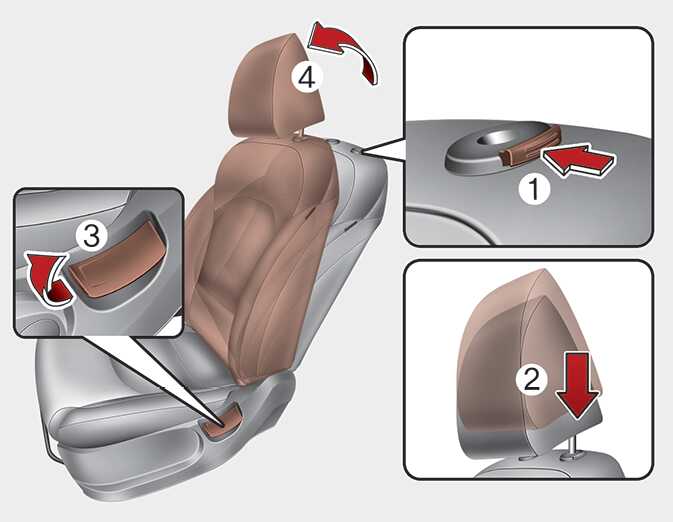

Figure 3. Type A
OBD031014

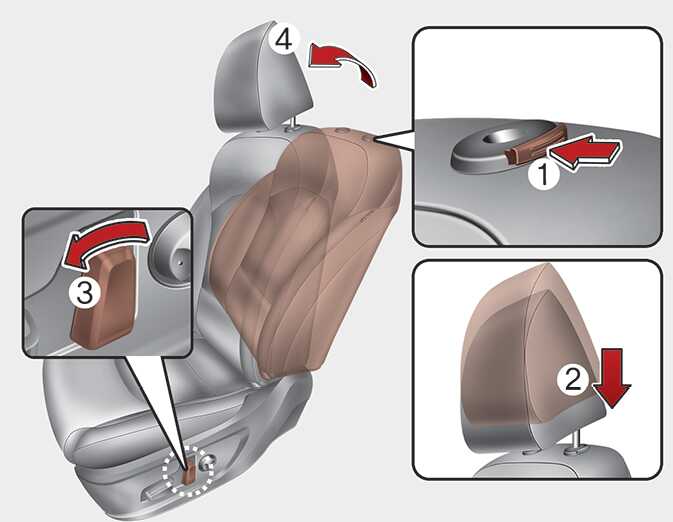

Figure 4. Type B
OBD031013

To reinstall the headrest:

  1. Put the headrest poles (2) into the holes while pressing the release button or switch (1).

  2. Recline the seatback(4) with the recline lever or switch (3).

  3. Adjust the headrest to the appropriate height.

    WARNING

    Always make sure the headrest locks into position after reinstalling and adjusting it properly.
