Trip information (trip computer) (For Type B cluster)
The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

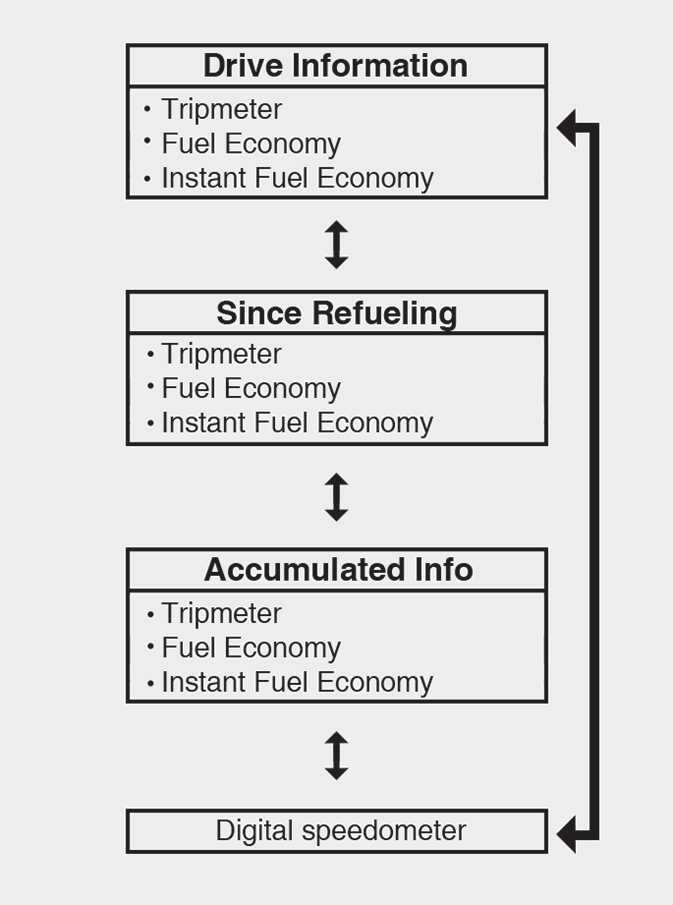

Trip Modes
To change the trip mode, scroll the toggle the switch (
/
) on the steering wheel.

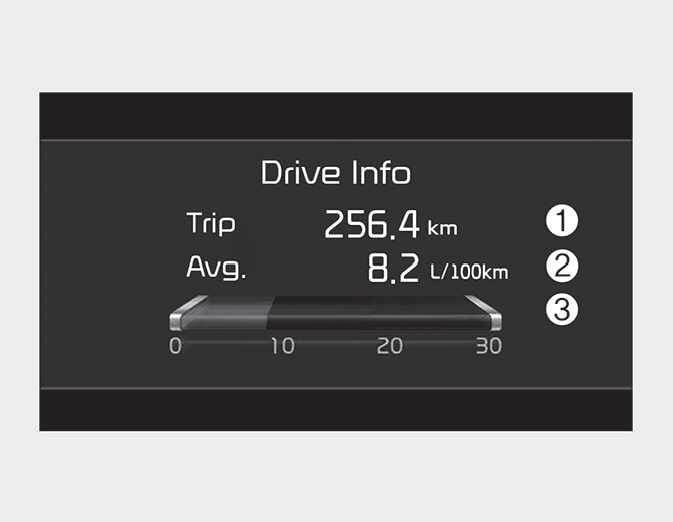

Drive Info display
This display shows the trip distance (1), the average fuel efficiency (2), and the instant fuel economy (3) information once per one ignition cycle.
-
Fuel efficiency is calculated after the vehicle has run for more than 300 meters (0.2 miles).
-
The Driving Information will be reset 4 hours after ignition has been turned off. So, when the vehicle ignition is turned on within 4 hours, the information will not be reset.
-
If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

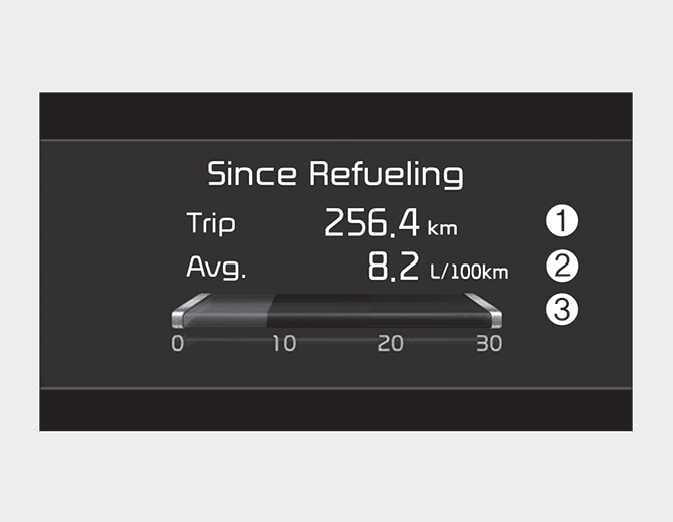

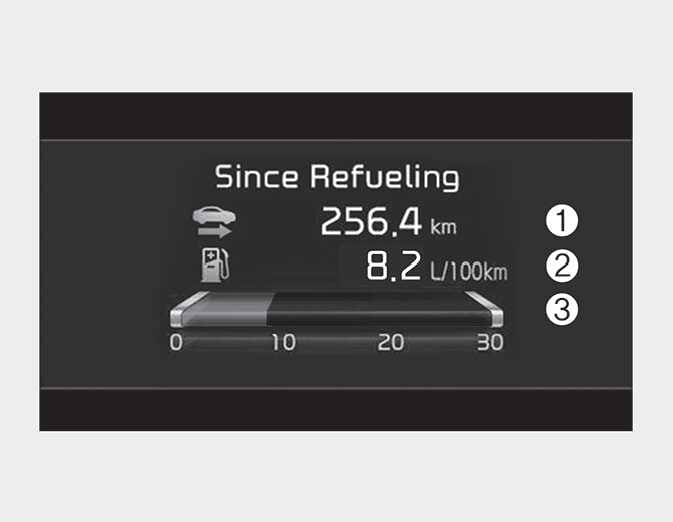

Since Refueling
This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the instant fuel economy (3) after refueling.
-
Fuel efficiency is calculated after the vehicle has run for more than 300 meters (0.2 miles).
-
After refueling more than 6 liters and driving over 1 km/h, the Since Refueling will reset to default automatically.
-
If you press "OK" button for more than 1 second after the Since Refueling is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

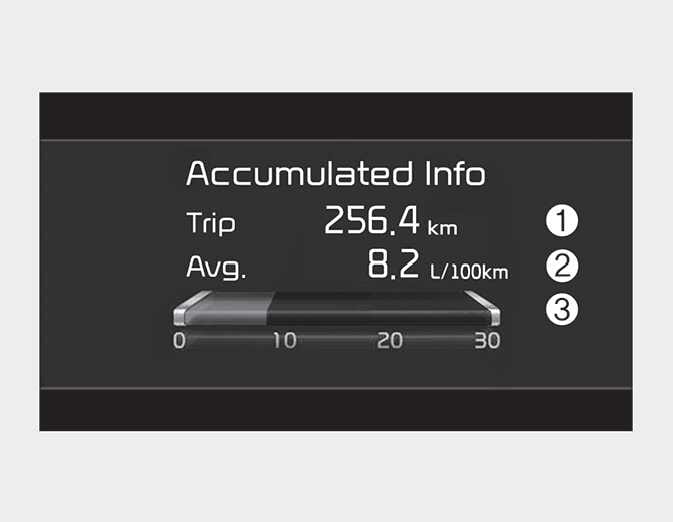

Accumulated driving information mode
This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the instant fuel economy (3).
-
Accumulated information is calculated after the vehicle has run for more than 300 meters (0.2 miles).
-
If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

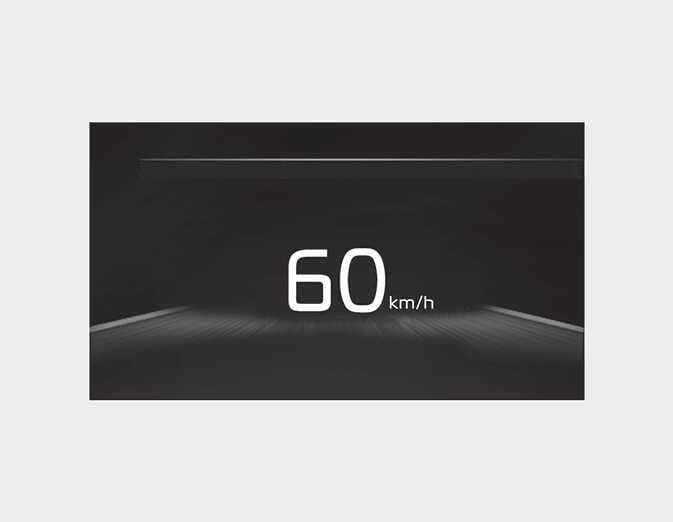

Digital speedometer
This digital speedometer display shows the speed of the vehicle.
