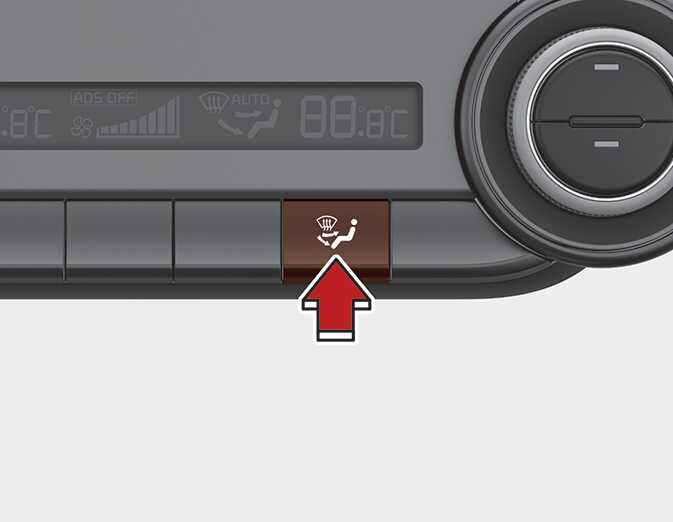

Mode selection
The mode selection button controls the direction of the air flow through the ventilation system.

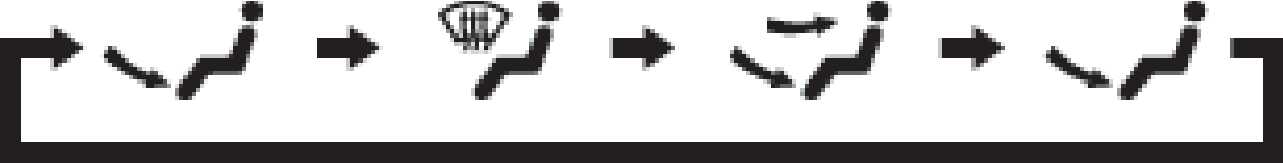

The air flow outlet ports are switched in the following sequence:
Face-Level (B, D, F)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D, E, F)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D, E, F)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters and side air vents.
Floor/Defrost-Level (A, C, D, E, F)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters and side air vents.

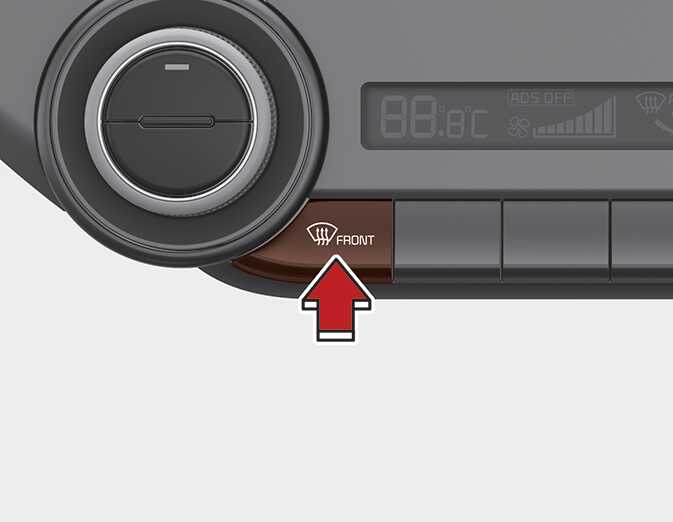

Defrost mode
When you select the defrost mode, the following system settings will be made automatically:
-
The air conditioning system will be turned on.
-
The outside (fresh) air position will be selected.
-
The fan speed will be set to the high speed.
To turn the defrost mode off, press the mode button or defrost button again or AUTO button.
