Engine compartment

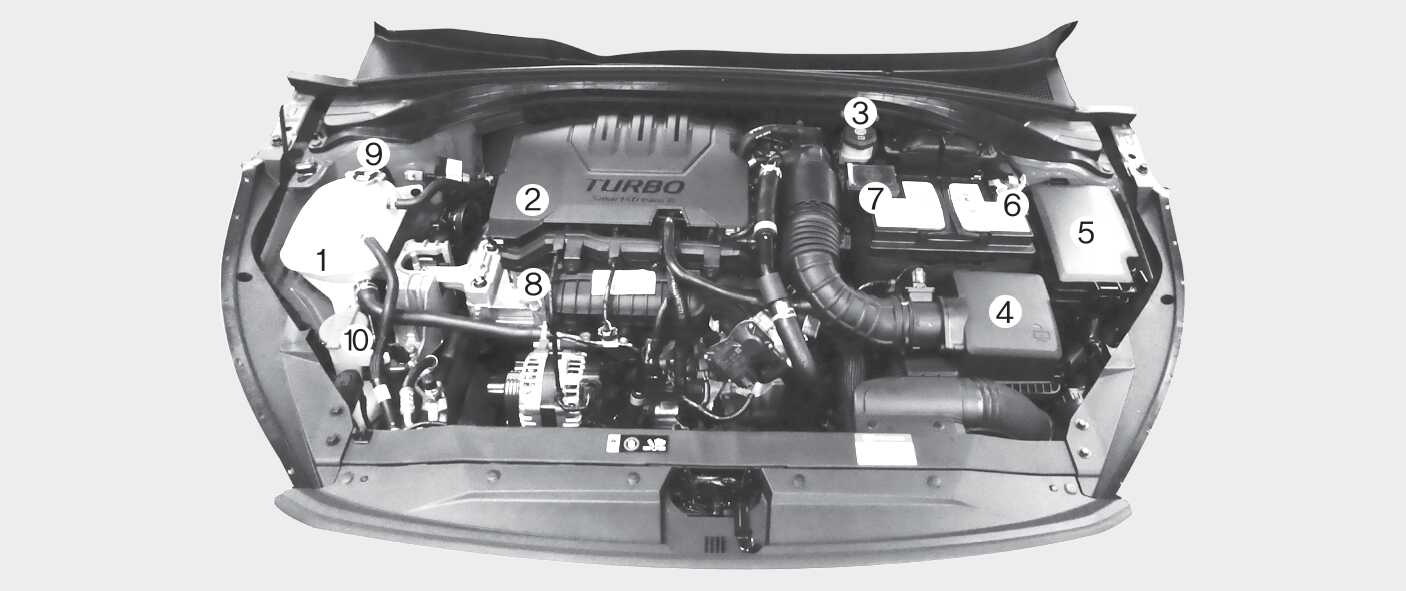

Figure 1. Smartstream G1.0 T-GDi
OCDMH070001

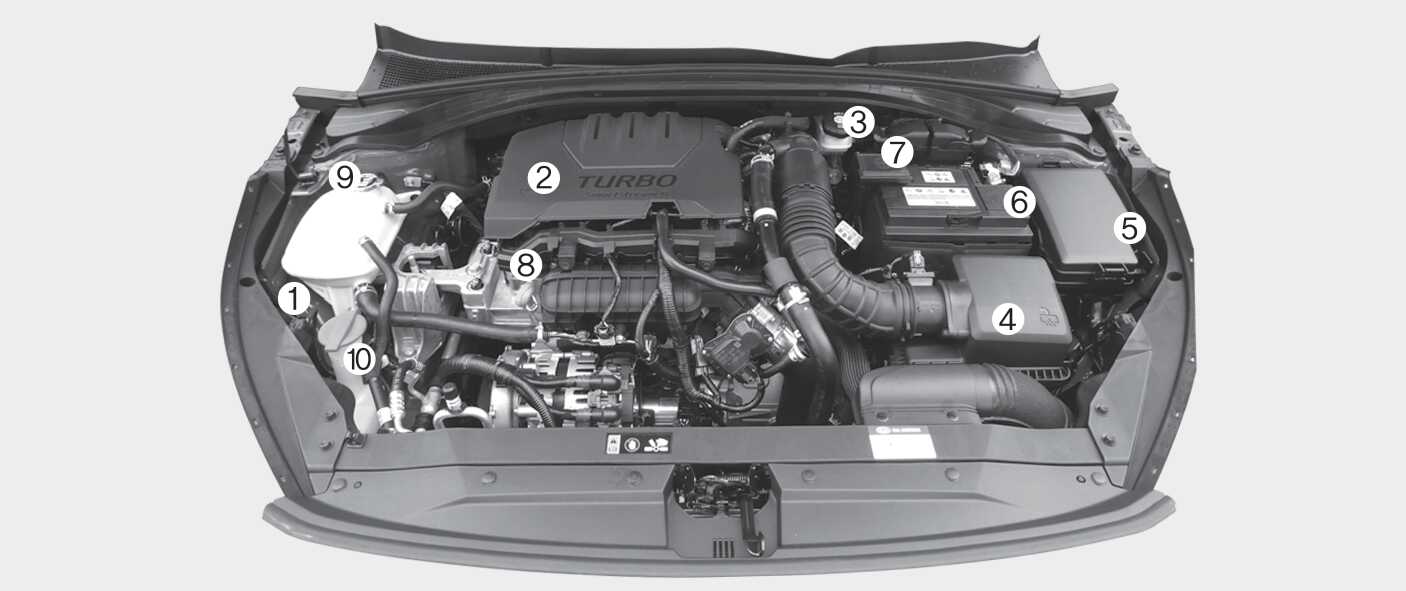

Figure 2. Smartstream G1.0 T-GDi MHEV
OCD070001

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid

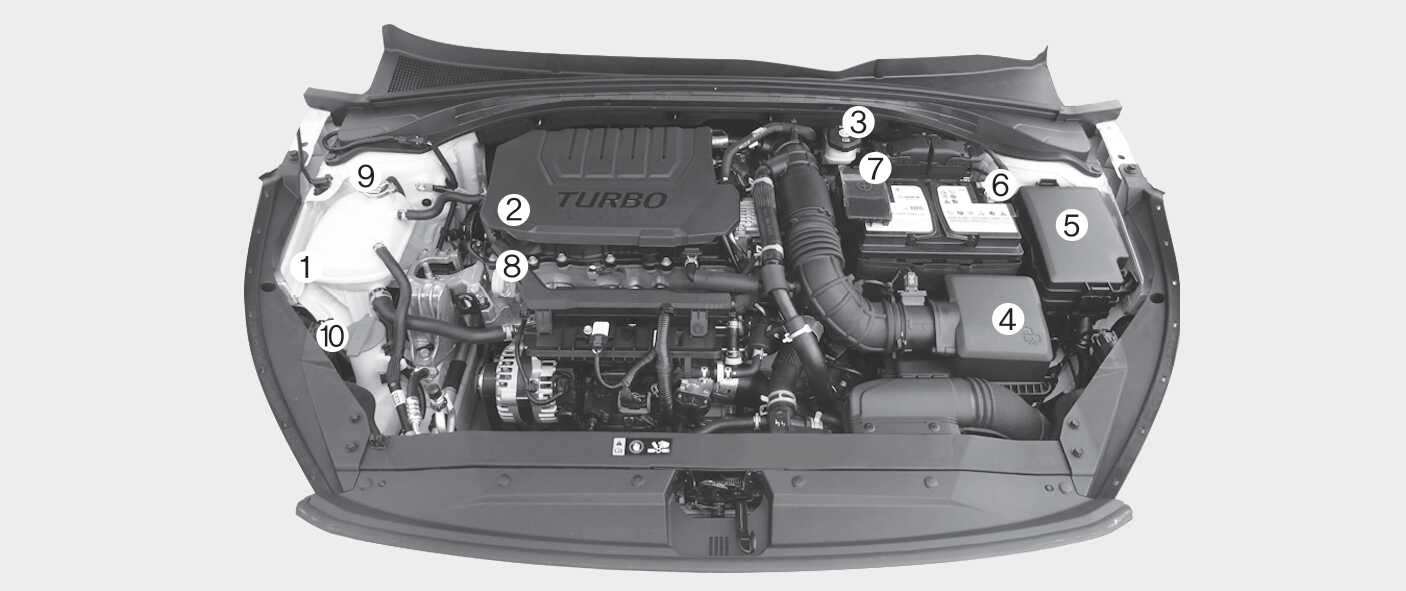

Figure 3. Smartstream G1.5 T-GDi
OCD071002L

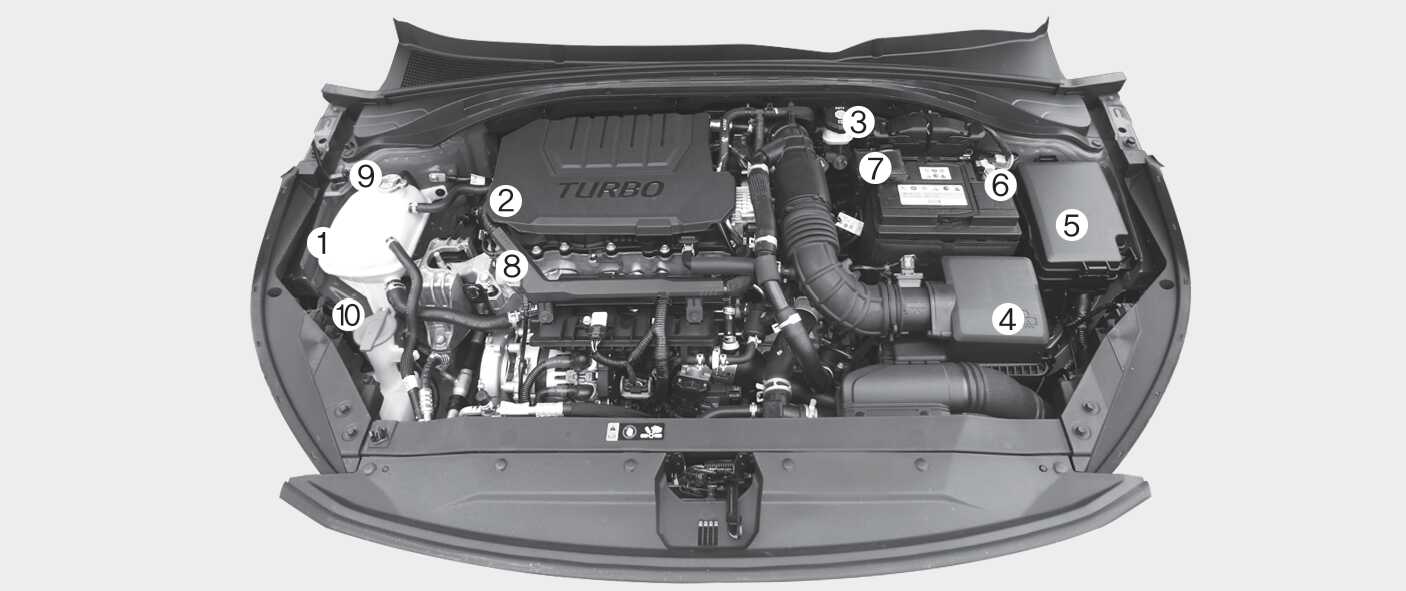

Figure 4. Smartstream G1.5 T-GDi MHEV
OCD071003L

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid

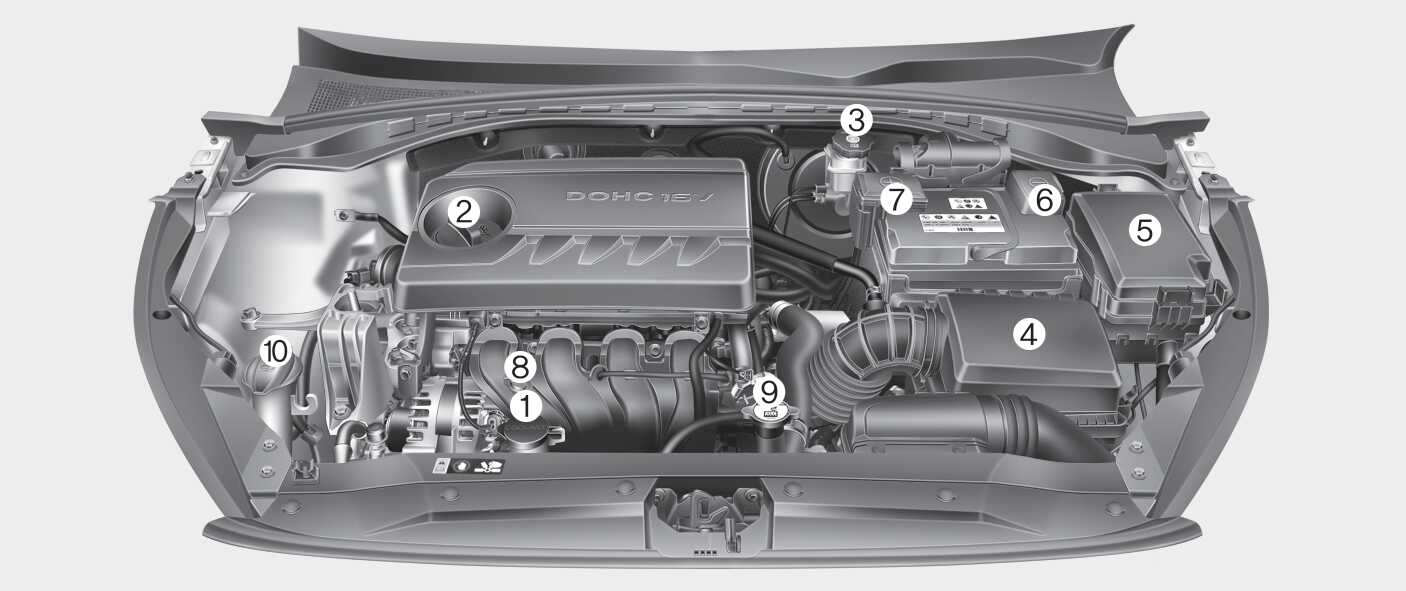

Figure 5. (Gasoline) 1.6 MPI
OCD078081

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid

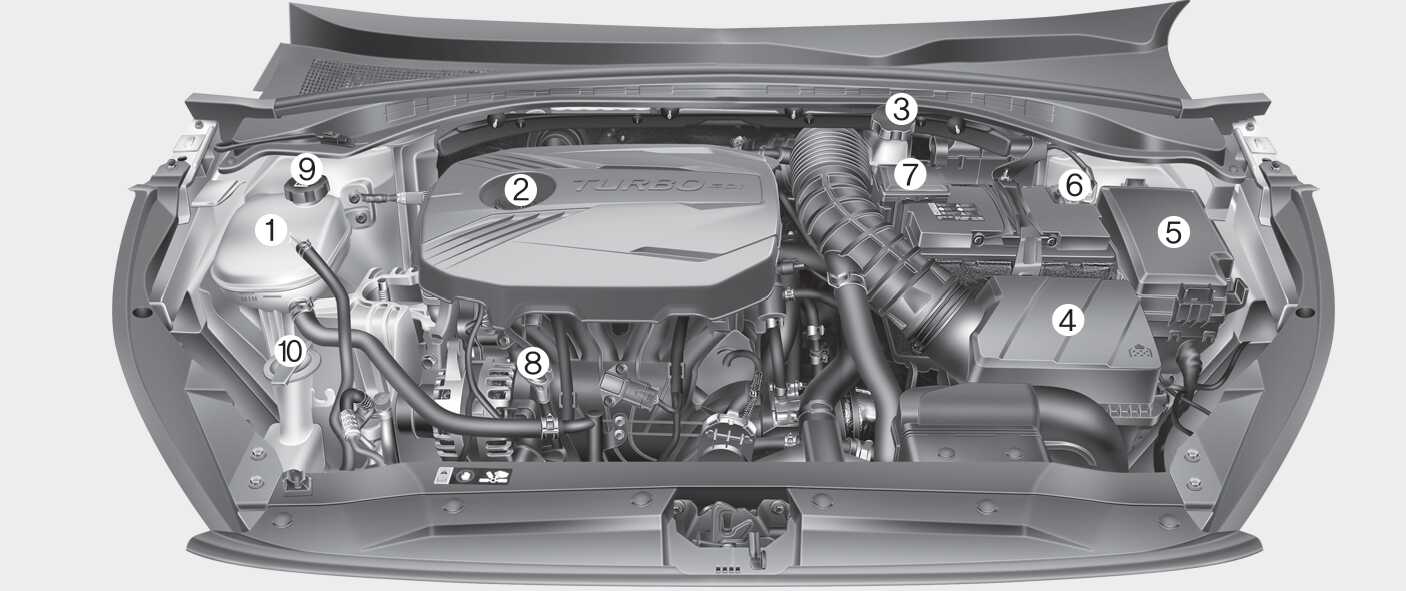

Figure 6. (Gasoline) 1.6 T-GDi
OCD078100

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid

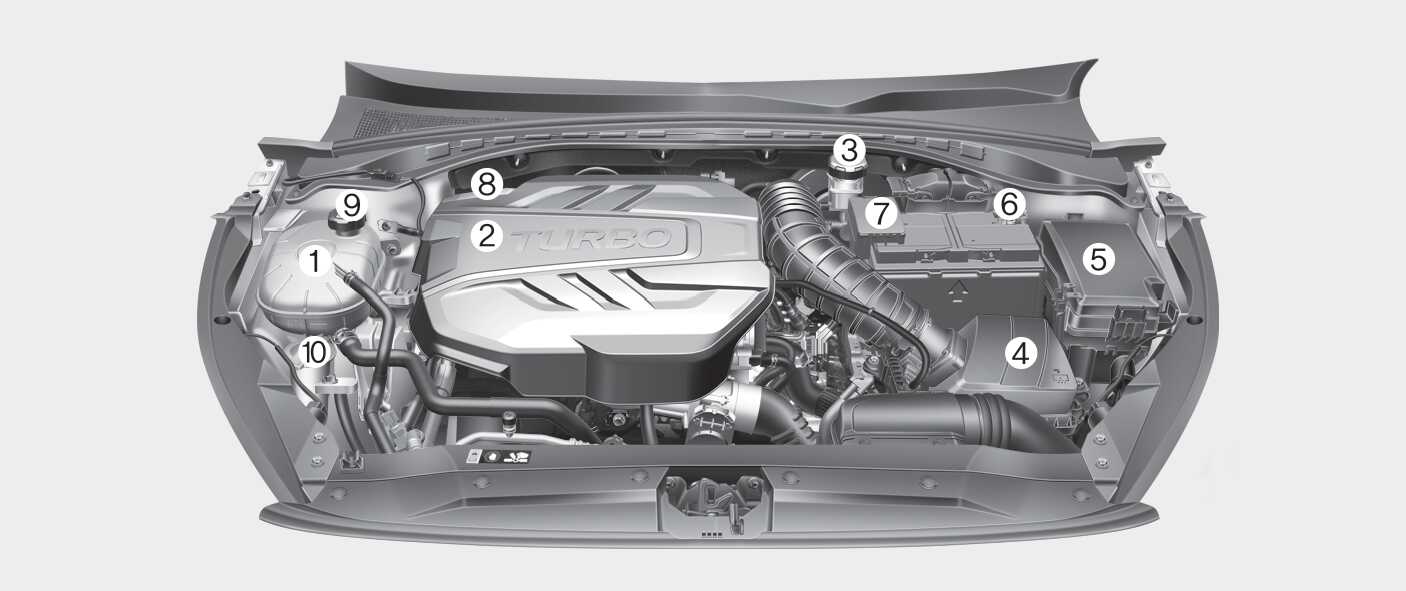

Figure 7. Smartstream D1.6 MHEV
OCD071152L

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil (diesel)

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (diesel)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid
