Manual climate control system: (if equipped)

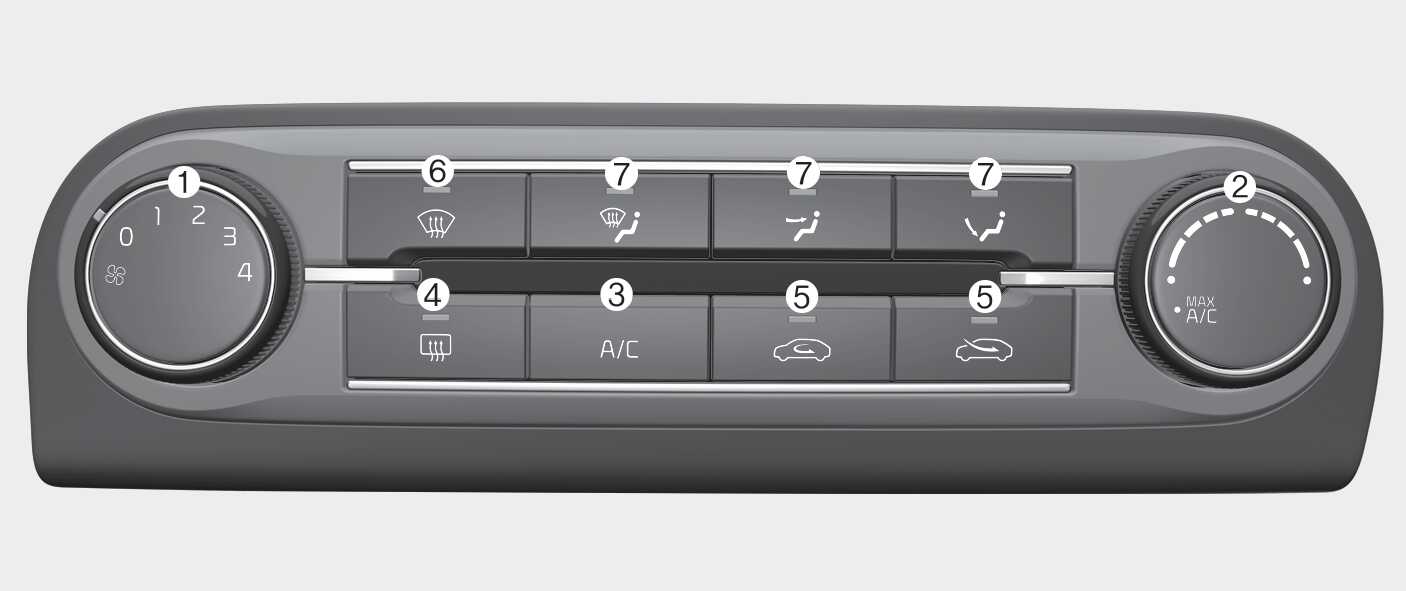

Figure 1. Type A
OCD041582L
Figure 2. Type B
OCD041583L

  1. Fan speed control knob

  2. Temperature control knob

  3. Air conditioning button: (if equipped)

  4. Rear window defroster button

  5. Air intake control button

  6. Front windshield defroster button

  7. Mode selection button

CAUTION

Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
