Engine compartment

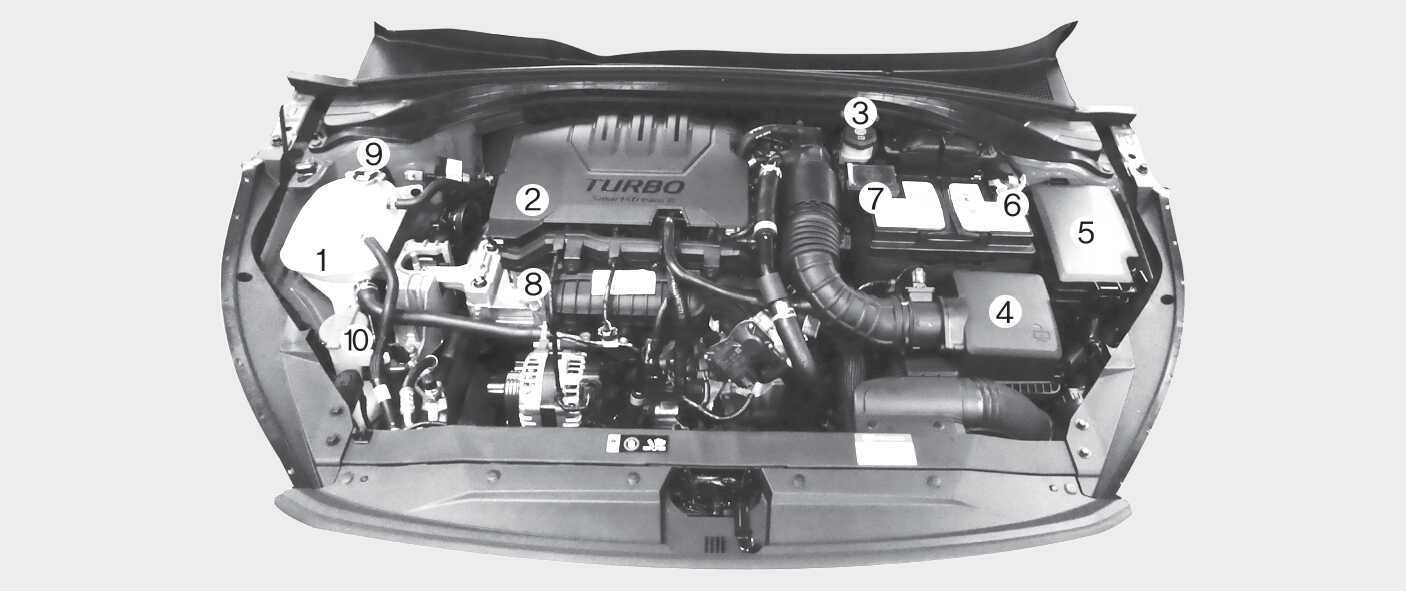

Figure 1. Smartstream G1.0 T-GDi
OCDMH0700010

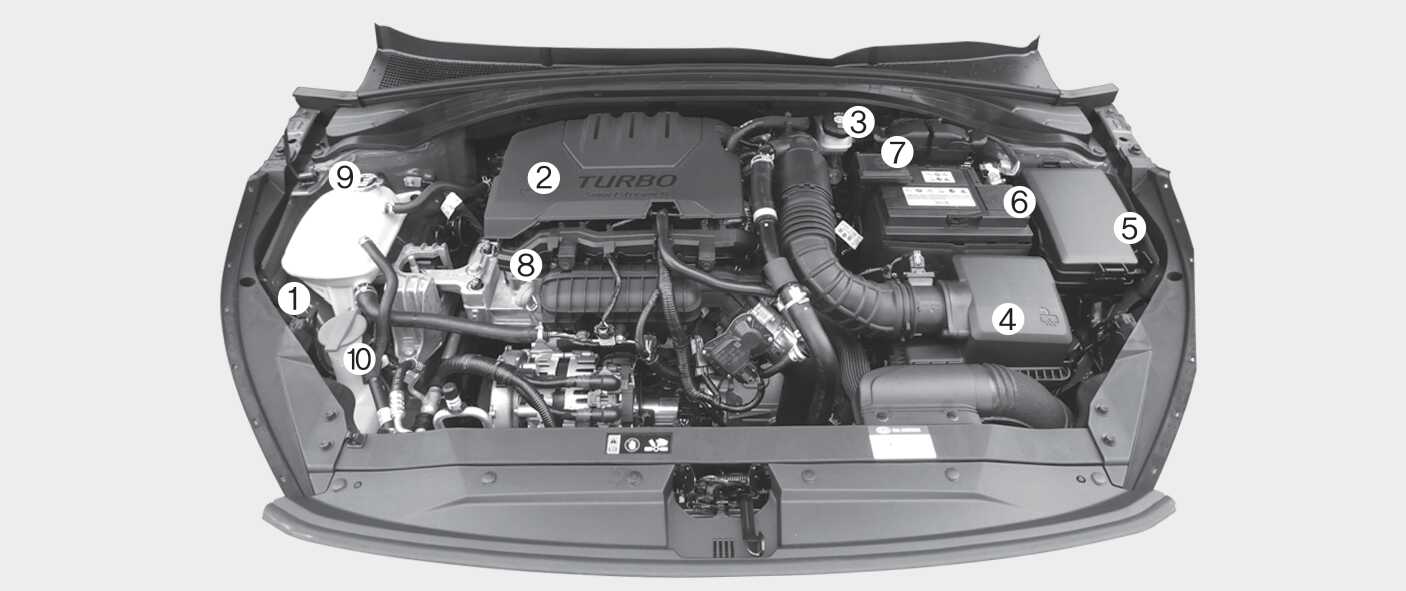

Figure 2. Smartstream G1.0 T-GDi MHEV
OCD0700010

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake/clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

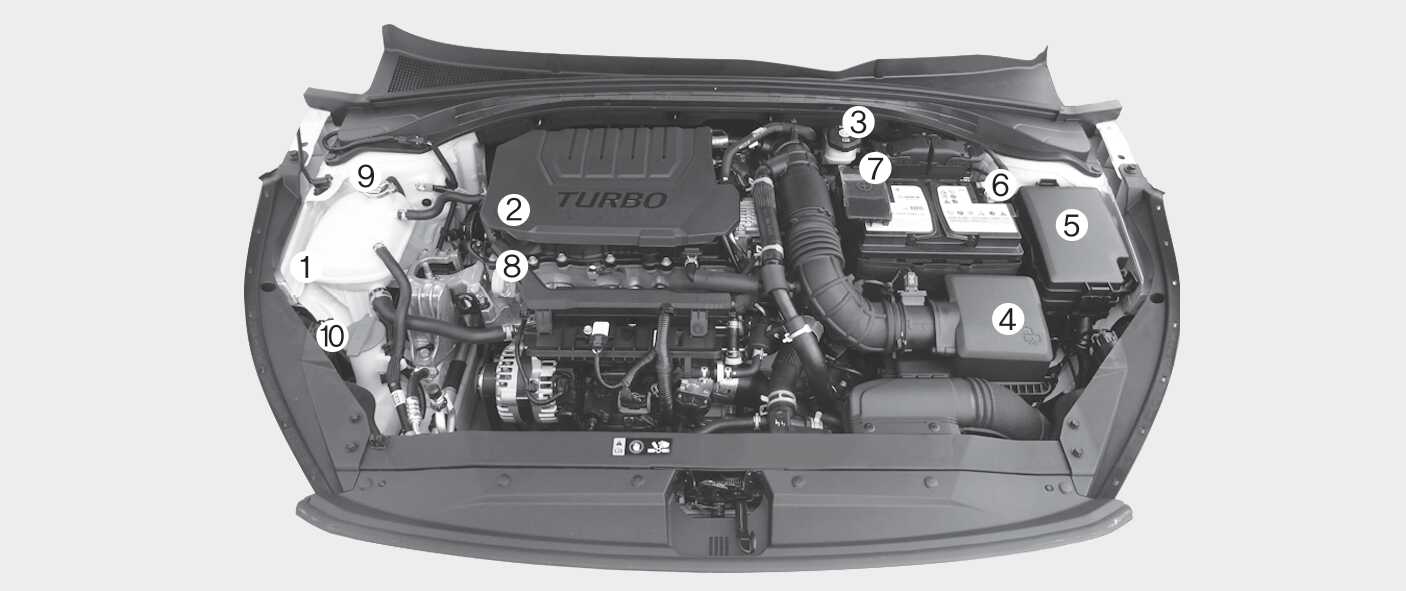

Figure 3. Smartstream G1.5 T-GDi
OCD071002L0

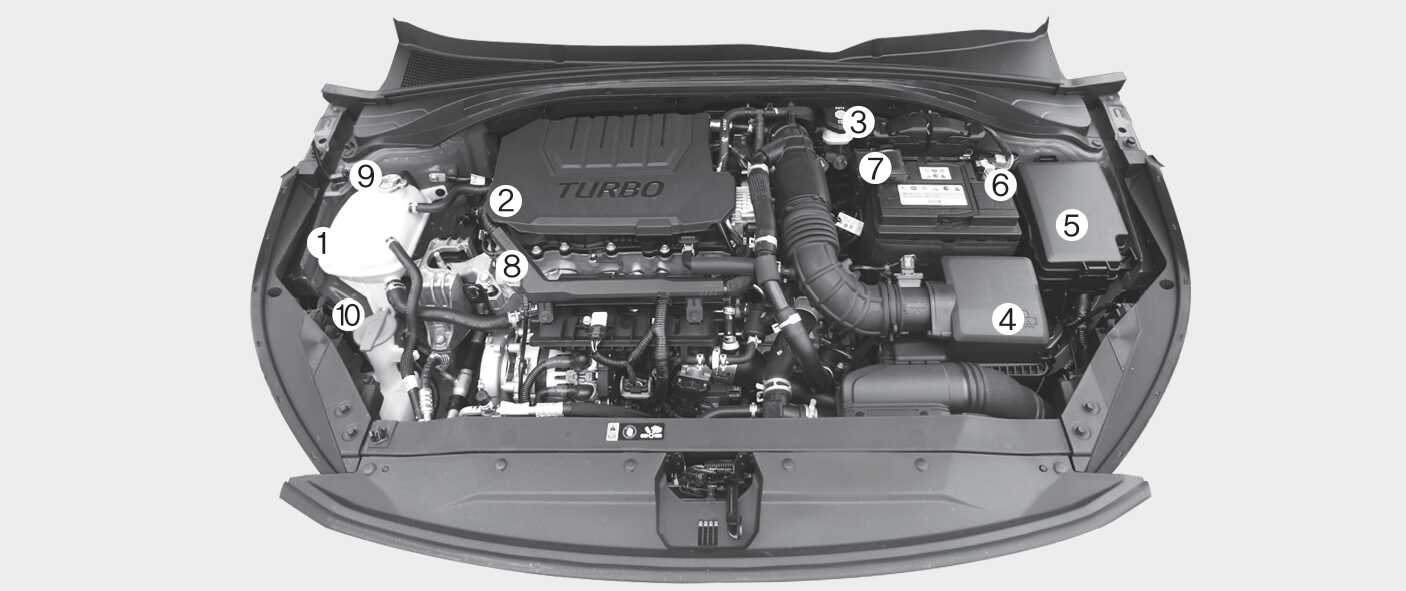

Figure 4. Smartstream G1.5 T-GDi MHEV
OCD071003L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake/clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

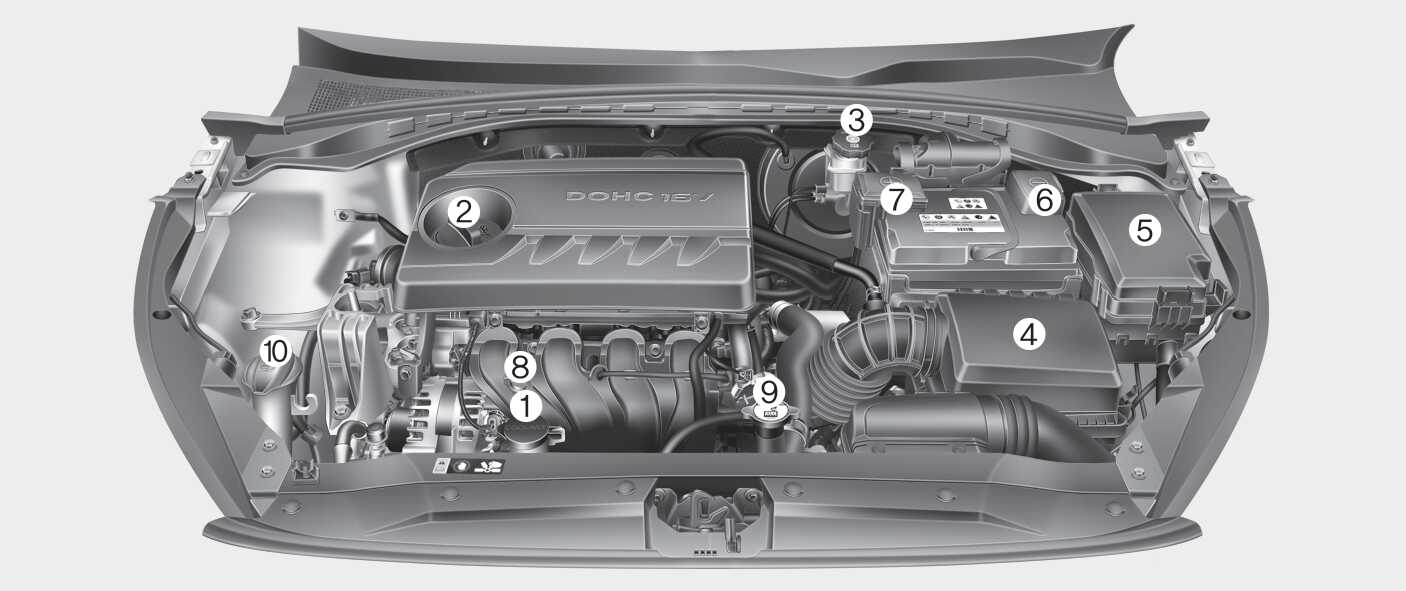

Figure 5. (Gasoline) 1.6 MPI
OCD0780810

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake/clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

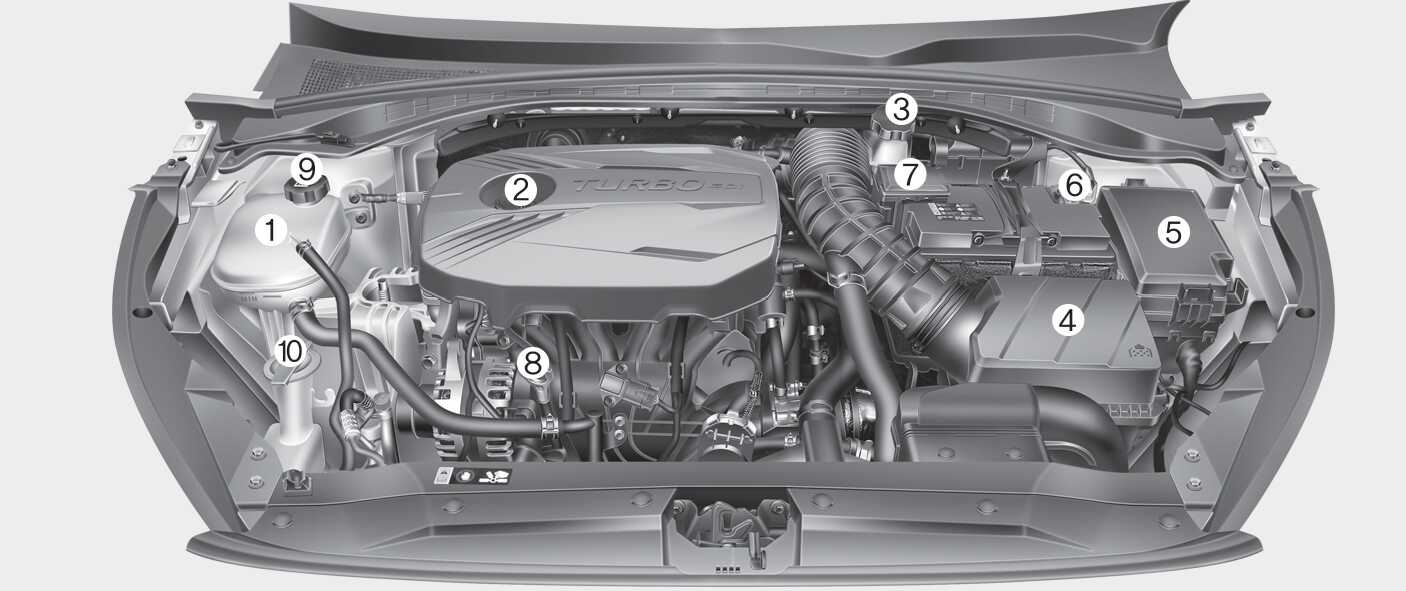

Figure 6. (Gasoline) 1.6 T-GDi
OCD0781000

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake/clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

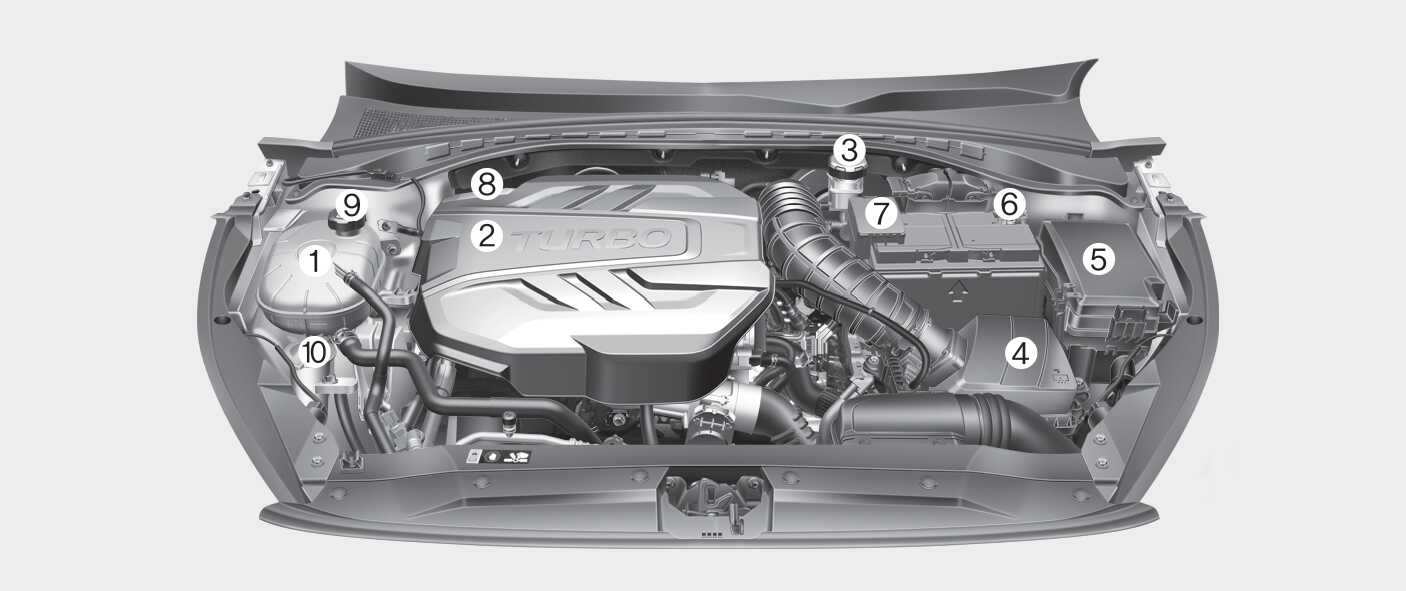

Figure 7. Smartstream D1.6 MHEV
OCD071152L0

The actual engine cover in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake/clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir
