Instrument cluster

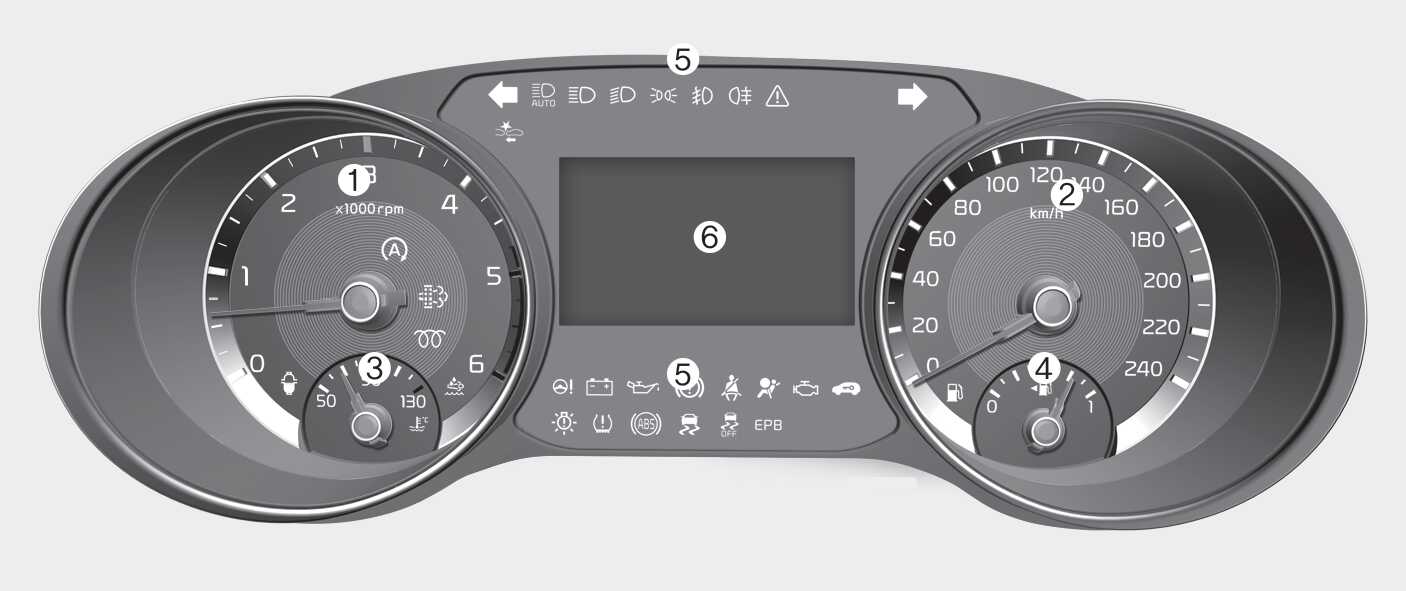

Figure 1. Type A
OCD041543L

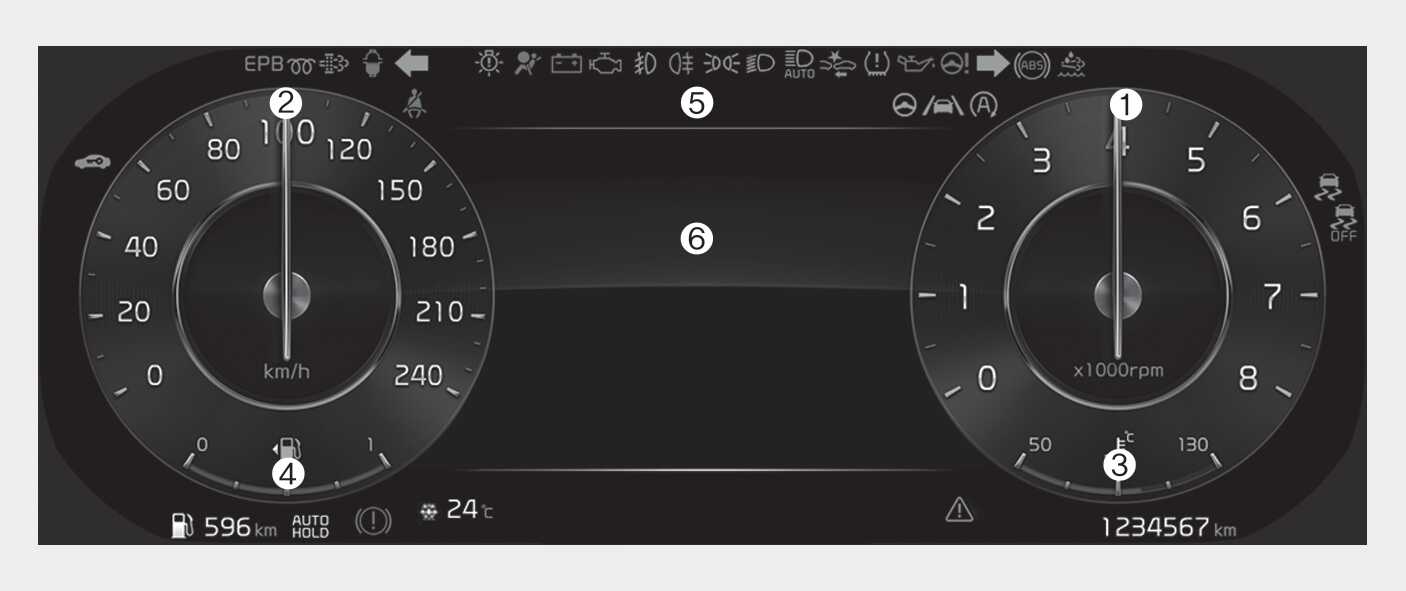

Figure 2. Type B
OCD041129L

The actual cluster in the vehicle may differ from the illustration.

For more details, refer to the Gauges.

  1. Tachometer

  2. Speedometer

  3. Engine coolant temperature gauge

  4. Fuel gauge

  5. Warning and indicator lights

  6. LCD display
