Suitability of each seating position for belted, i-Size & ISOFIX Child Restraint Systems (CRS) according to UN regulations (Information for use by vehicle users and CRS manufacturers)
|
CRS categories |
Seating positions |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|||
|
AirbagON |
AirbagOff |
||||||||||
|
Universal belted CRS |
All mass groups |
- |
- |
No |
Yes *1 (F, R) |
Yes (F, R) |
Yes (F, R) |
Yes (F, R) |
Yes *2 *3 (F, R) |
- |
Yes *2 *3 (F, R) |
|
i-size CRS |
ISOFIX CRF: F2, F2X, R1, R2 |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
No |
- |
No |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF: L1, L2 |
- |
- |
No |
No |
No |
No |
No |
No |
- |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF: R1 |
- |
- |
No |
No |
Yes (R) |
No |
Yes (R) |
Yes *2 (R) |
- |
Yes *2 (R) |
|
ISOFIX toddler CRS - small |
ISOFIX CRF: F2,F2X, R2,R2X |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
Yes *4 (F, R) |
- |
Yes *4 (F, R) |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF: F3,R3 |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
Yes (F) |
- |
Yes (F) |
|
Booster Seat – reduced Width |
ISO CRF: B2 |
- |
- |
No |
No |
Yes |
No |
Yes |
Yes |
- |
Yes |
|
Booster Seat – full Width |
ISO CRF: B3 |
- |
- |
No |
No |
Yes |
No |
Yes |
Yes |
- |
Yes |
*1. To install Universal CRS, 1 st row passenger seat back should be at its most upright position
*2. Never install CRS with a support leg on 3 rd row seat
*3. To install CRS, 2 nd row seat track should be at foremost position
*4. R2X is not allowed in 3 rd row
|

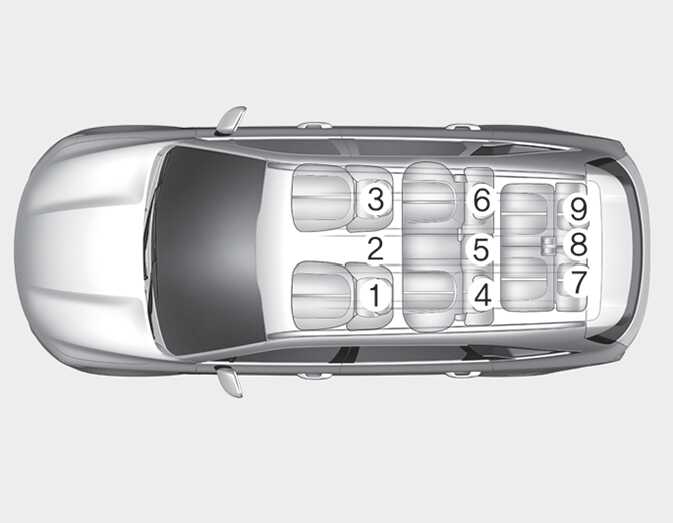

Seat Number |
Position in the vehicle |
Seating positions |
|---|---|---|
|
1 |
Front left |
 OMQ4030084L |
|
2 |
Front center |
|
|
3 |
Front right |
|
|
4 |
2 nd row left |
|
|
5 |
2 nd row center |
|
|
6 |
2 nd row right |
|
|
7 |
3 rd row left |
|
|
8 |
3 rd row center |
|
|
9 |
3 rd row right |
If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed
Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated
3 rd row seats are available if your vehicle is a 6-seater or 7-seater
When installing Child Restraint System on 2 nd row seats, move the seat to most rearward position
