LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Table 1. Type A
	Mode
	Trip Computer	Driving Assist	Turn by Turn (TBT)	User Settings	Information/Marster warning
Up/Down	Fuel Economy	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance	Head-Up Display*	Intelligent Speed Limit Assist*
	Accumulated Info	Driver Attention Warning*	Destination Info	Driver Assistance	Tire Pressure Monitoring System
	Drive Info			Door	Driving Force Distribution*
	Digital Speedometer			Lights	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
				Sound
				Convenience
				Service Interval
				Theme Selection
				Other
				Language
				Reset

Table 2. Type B
	Mode
	Trip Computer	Driving Assist	Turn by Turn (TBT)
Up/Down	Drive Info	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance
	After Refuel*		Destination Info
	Accumulated Info
	Digital Speedometer
	Driver Attention Warning*
	Tire Pressure Monitoring System
	Intelligent Speed Limit Assist*
	Driving Force Distribution*

The information provided may differ depending on which functions are applicable to your vehicle.

: if equipped

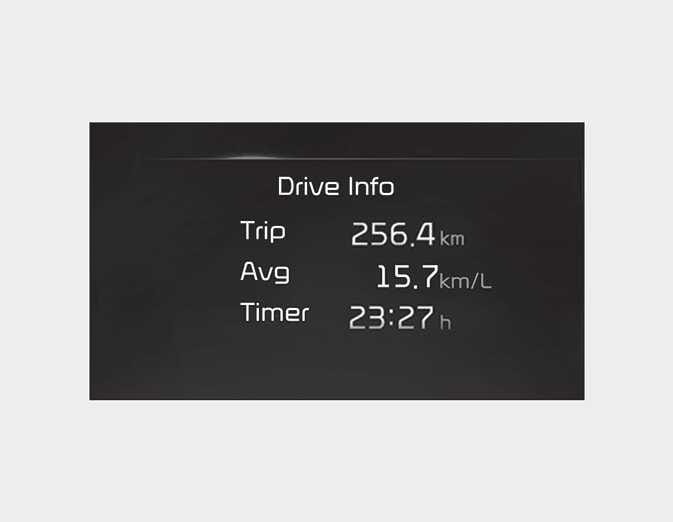

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

For more details, refer to Trip information (trip computer).

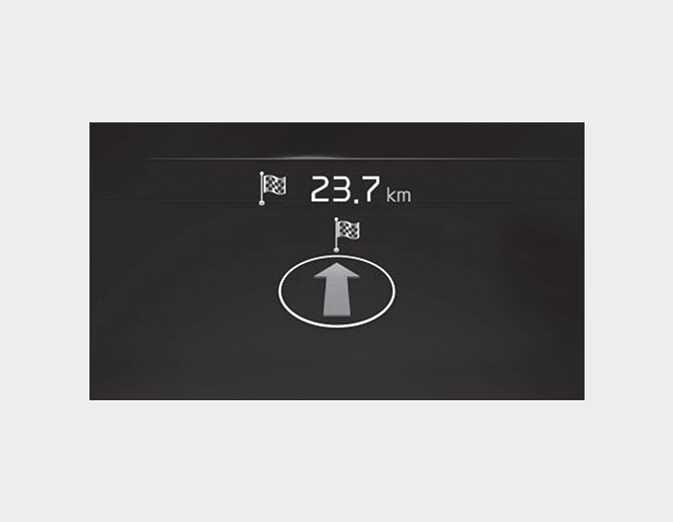

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

Lane Safety system: (if equipped)
Smart Cruise Control: (if equipped)
Driver Attention Warning: (if equipped)
Tire pressure

For more details, refer to each system information in Driving your vehicle.

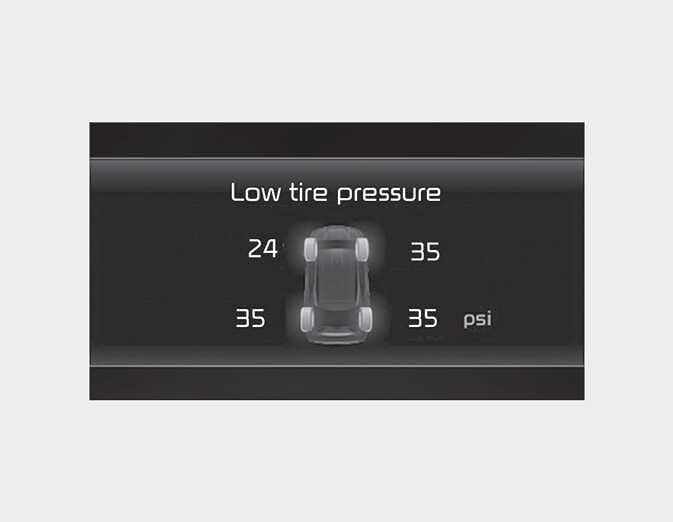

Tire pressure status

This mode displays information related to Tire Pressure.

For more details, refer to Tire Pressure Monitoring System (TPMS).

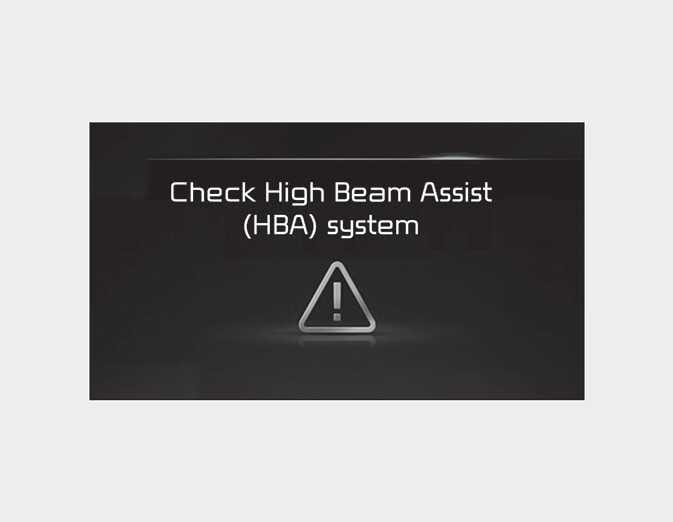

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction: (if equipped)
Lamp malfunction
High Beam Assist malfunction: (if equipped)

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

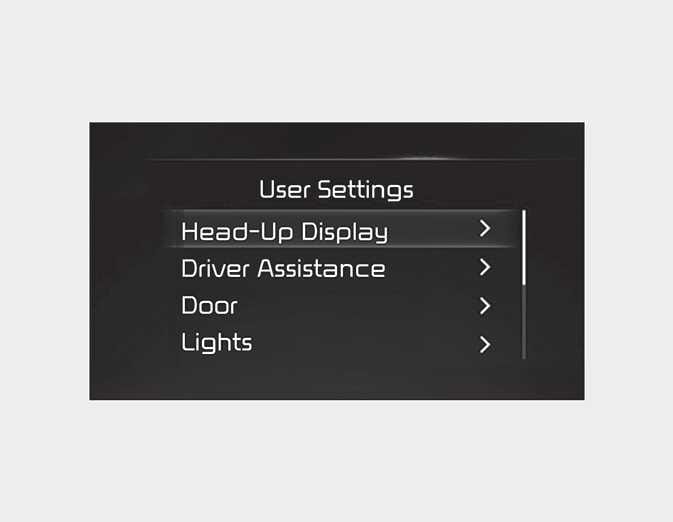

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Lights
Sound
Door
Convenience
Service Interval
Others
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)


Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Content Selection	If below items are checked, the items will be activated. Turn by Turn Traffic Info Driving Assist Info Lane Safety Info Blind-Spot Safety Info AV Info
Speedometer size	Small/Medium/Large
Speedometer color	White/Orange/Green

2. Driver Assistance (if equipped)


Items	Explanation
SCC Reaction	Fast/Normal/Slow To adjust the sensitivity of the Smart Cruise Control system. For more details, refer to “Smart Cruise Control with Stop & Go” in chapter 5.
Driving Assist	Leading vehicle departure alert/Lane Following Assist To select the functions.
Warning timing	Normal/Later To select the Warning time
Warning volume	High/Medium/Low/Off To select the Warning volume
Driver Attention Warning	Low Activity Warning To select the function. High sensitivity/Normal sensitivity/Off To adjust the sensitivity of the Driver Attention Warning. For more details, refer to the “DAW (Driver Attention Warning)” in chapter 6.
Forward safety	Active assist/Warning only/Off To select the functions.
Lane safety	Lane Keeping Assist / Lane Departure warning / Off To select the functions.
Blind-spot safety	Blind-Spot view SEA (Safe Exit Assist) Active assist/Warning only/Off To select the functions.
Parking safety	Rear Cross-Traffic Safety: You can turn on/off the Rear Cross-Traffic Collision Warning (RCCW) and Rear Cross-Traffic Collision-Avoidance Assist (RCCA) system. With the system on, if there is a vehicle approaching from the rear side when reversing, it helps you avoid collision through warning and control. For more details, refer to “Rear Cross-Traffic Collision Warning (RCCW) system and Rear Cross- Traffic Collision-Avoidance Assist (RCCA) system” in chapter 5.

The information provided may differ depending on which functions are applicable to your vehicle.

3. Door


Items	Explanation
Automatically Lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on shift (if equipped with Automatic transmission) : All doors will be automatically locked if the gear is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Automatically Unlock	Disable : The auto door unlock operation will be canceled. Vehicle Off : All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position. On Shift to P (if equipped with Automatic transmission) : All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)
Power tailgate: (if equipped)	If this item is checked, the power tailgate function will be activated. For more details, refer to “Power Tailgate” in this chapter.
Power tailgate speed: (if equipped)	Normal/Fast You can select the operating speed of the power tailgate.
Power tailgate opening height	To adjust the power tailgate height. For more details, refer to Power tailgate.
Smart Tailgate: (if equipped)	If this item is checked, the smart tailgate function will be activated. If the power tailgate function is not activated, you cannot activate this function. For more details, refer to “Smart Tailgate” in this chapter.

The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights


Items	Explanation
Illumination	To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. For more details, refer to Lighting.
Ambient light	Settings of the ambient light.
Ambient Brightness	Settings of the ambient brightness.
Ambient Light Color	To adjust colors of ambient light. (6 colors)
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound


Items	Explanation
Welcome Sound	If this item is checked, the welcome sound function will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

6. Convenience


Items	Explanation
Seat Easy Access	Off/Normal/Extended To select the seat movement
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On door unlock / On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Wiper/Lights display	If this item is checked, the wiper/lights display will be activated.
Auto rear wiper (in R)	If this item is checked, the auto rear wiper will be activated.
Icy road warning	If this item is checked, the icy road warning will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

7. Service interval


Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

8. Other


Items	Explanation
Fuel Economy Reset	Off: The average fuel economy will not reset. After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.
Speedometer Unit	km/h or mph To select the Speedometer unit.
Fuel Economy Unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to Trip information (trip computer).
Temperature Unit	°C/°F To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

The information provided may differ depending on which functions are applicable to your vehicle.

9. Language


Items	Explanation
Language	You can select the language in the User Settings mode.

10. Theme Selection


Items	Explanation
Theme Selection	You can select the theme in the User Setting mode.

11. Reset


Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
