Lighting control

The light switch has a headlight and a position lamp position.

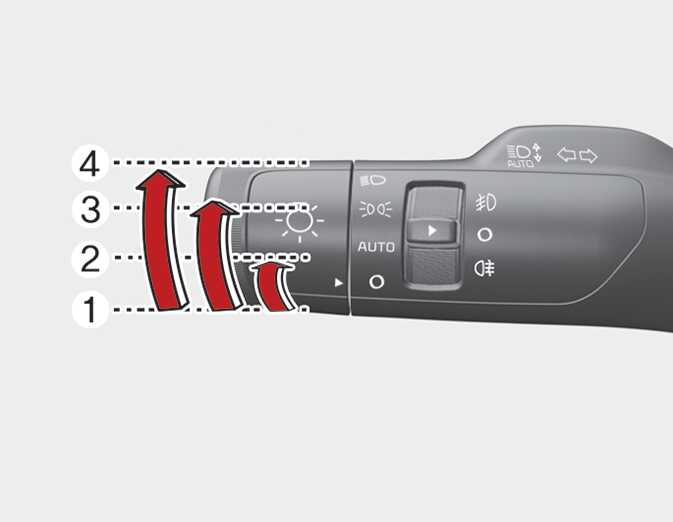

OMQ4040051L

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

  1. OFF position

  2. Auto light position

  3. Position & Tail lamp

  4. Headlight position

Position & Tail lamp

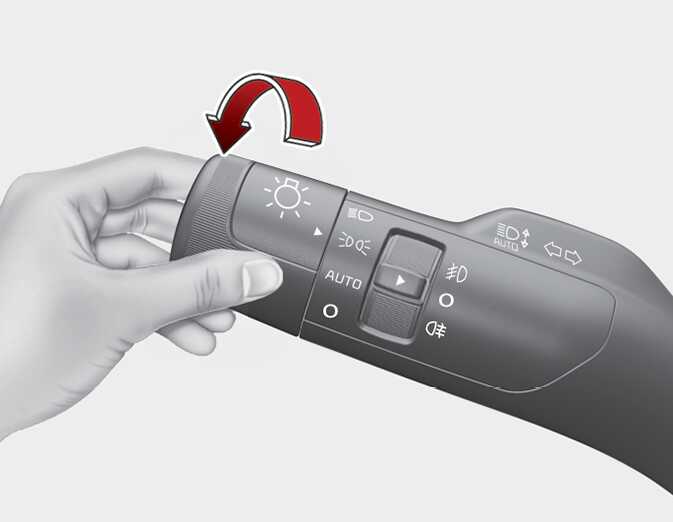

OMQ4040055L

When the light switch is in the position lamp position, the front position lamp, taillamp, and the license plate lamp will turn ON.

Head light (Low Beam)

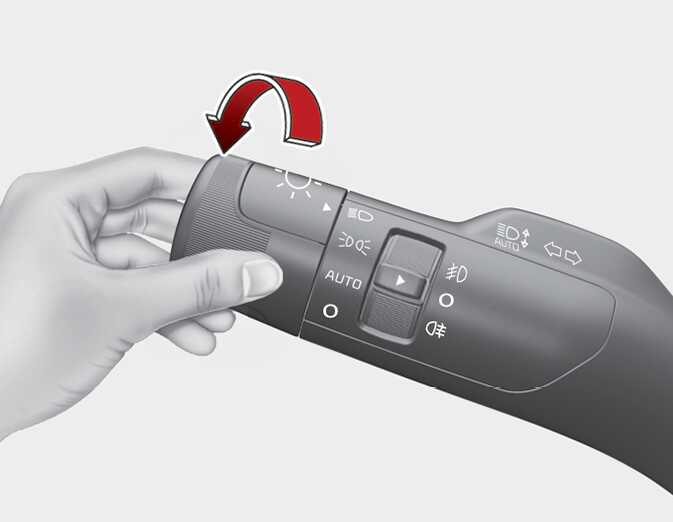

OMQ4040053L

When the light switch is in the head light position, head light (low beam), tail, license light will turn ON.

NOTE

The ignition switch or ENGINE START/STOP button must be in the ON position to turn on the headlights.

Auto light

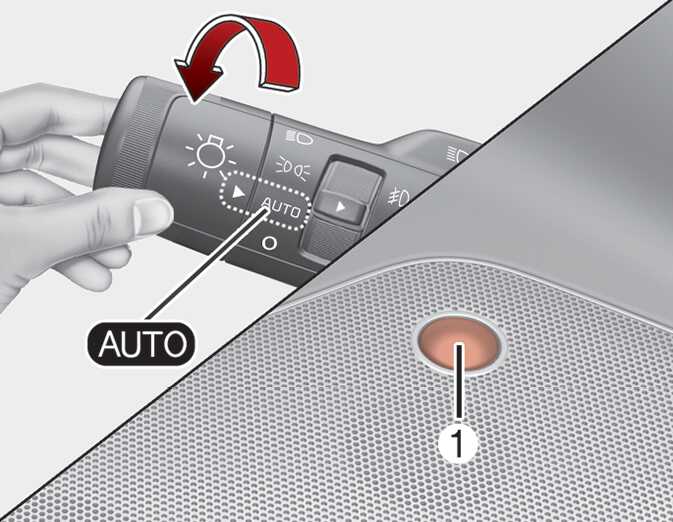

OMQ4040052L

When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside the vehicle.

CAUTION

  • Never place anything over the sensor (1) located on the instrument panel as this will ensure better auto-light system control.

  • Don't clean the sensor using a window cleaner, the cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
