Operating rear window wiper and washer switch

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever.

  • Turn the switch to the desired position to operate the rear wiper and washer.

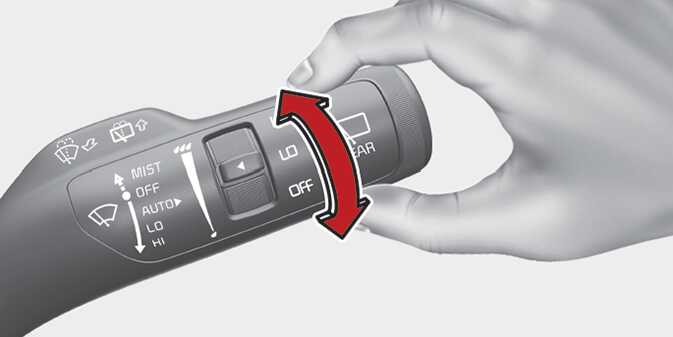

    Figure 1. Type A
    OMQ4040555L

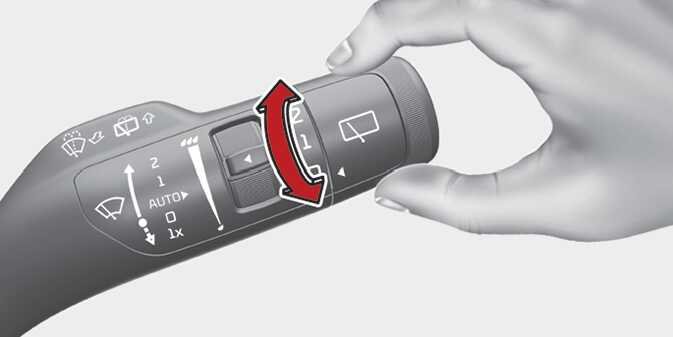

    Figure 2. Type B
    OMQ4040495L

    • HI / 2 - Normal wiper operation

    • LO / 1 - Intermittent wiper operation: (if equipped)

    • OFF / 0 - Wiper is not in operation

  • Push the lever away from you to spray rear washer fluid and to run the rear wipers several times.

    Figure 3. Type A
    OMQ4040556L

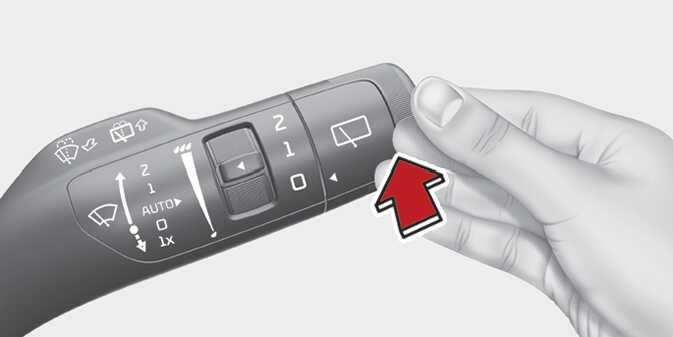

    Figure 4. Type B
    OMQ4040067L

The spray and wiper operation will continue until you release the lever.

When the front wiper is activated and the gear is switched to R (Reverse) position, the rear wiper will be activated once to provide better visibility.
