Light bulb position (Rear)

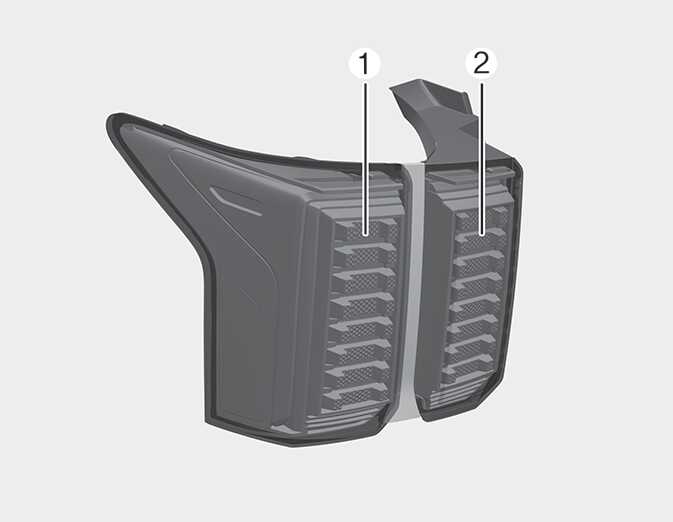

Figure 1. Rear combination lamp - Type A
OMQ4070057

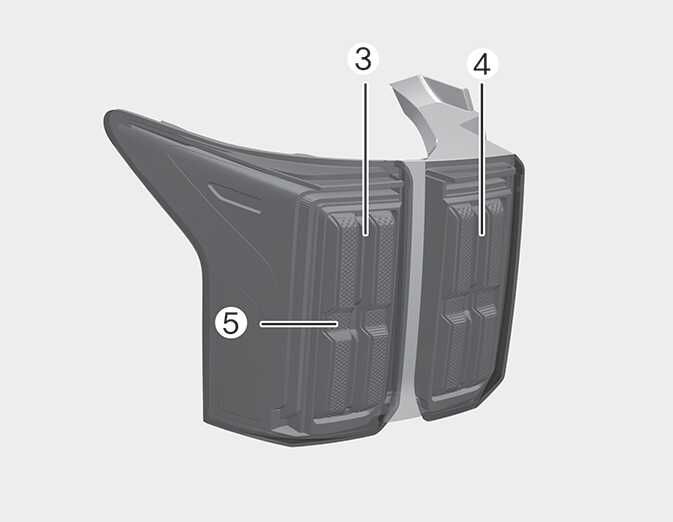

Figure 2. Rear combination lamp - Type B
OMQ4070056

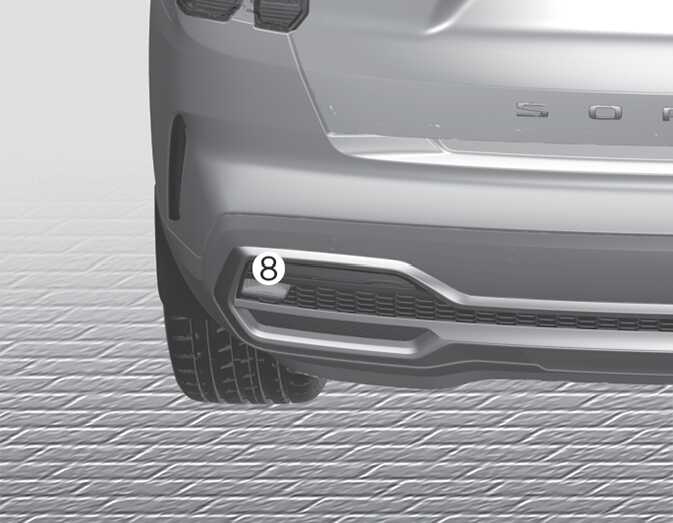

Figure 3. Rear fog lamp
OMQ4070084L

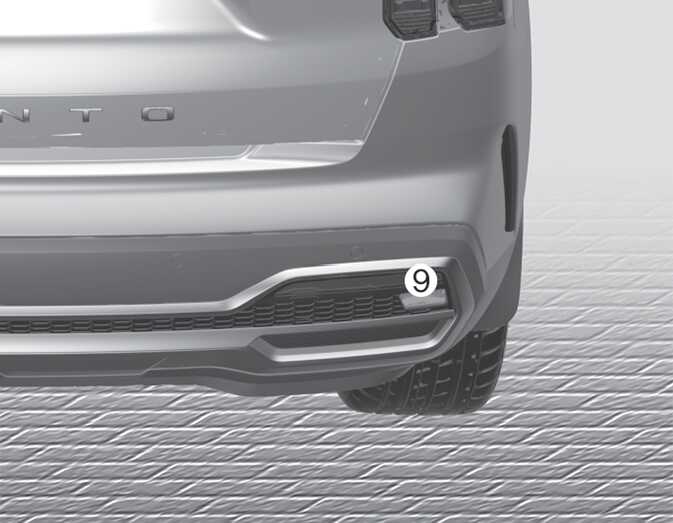

Figure 4. Reversing lamp
OMQ4070092L

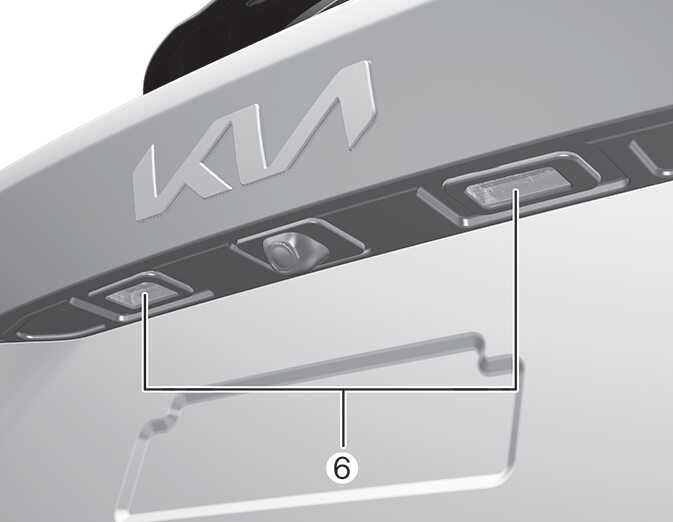

Figure 5. License plate lamp
OMQ4H071052

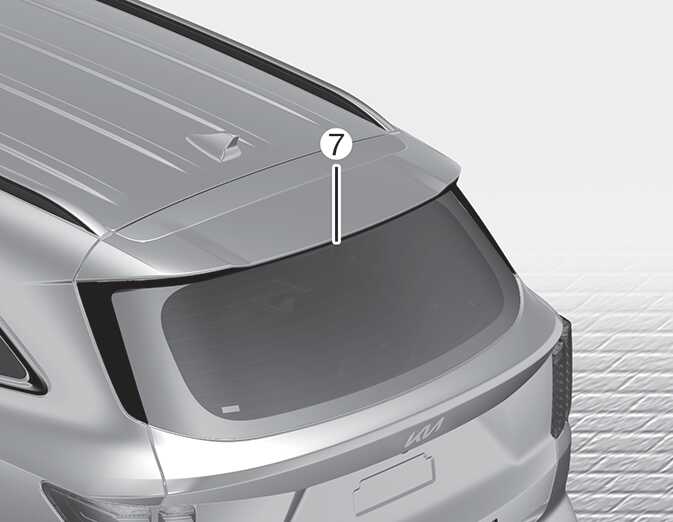

Figure 6. High mounted stop lamp
OMQ4H071058

  1. Stop and tail lamp (Bulb type)

  2. Rear turn signal lamp (Bulb type)

  3. Stop and tail lamp (LED type)

  4. Rear turn signal lamp (LED type)

  5. Tail lamp (LED type)

  6. License plate lamp (LED type)

  7. High mounted stop lamp (LED type)

  8. Rear fog lamp (LED type)

  9. Reversing lamp (Bulb type)
