Replacing the reversing lamp (Bulb type)

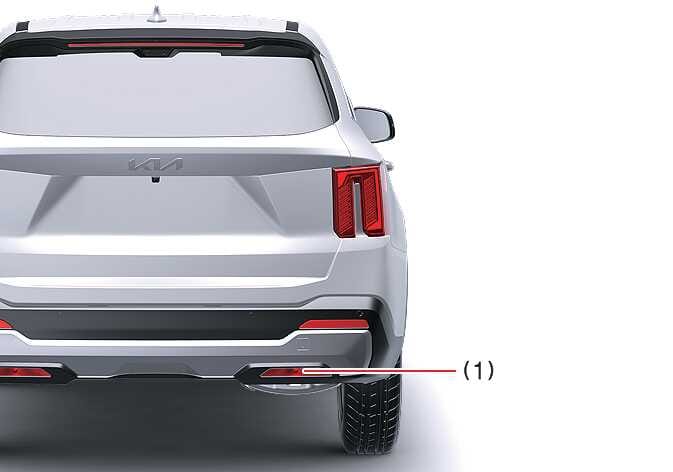

OMQ4A075018

  1. Reversing lamp (Bulb type)

To replace the reversing lamp (Bulb type), follow these steps:

  1. Press the ENGINE START/STOP button in the OFF position and disconnect the battery’s negative (-) terminal.
  2. Use a slotted (flat-tip) screwdriver to loosen the plastic tabs.
  3. Loosen the plastic retaining screws and open the underpanel cover.
  4. Disconnect the rear reversing lamp connector.
  5. To remove the socket from the assembly, turn the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
  6. To install the socket back into the assembly, align the tabs on the socket with the slots in the assembly, push the socket into the assembly, and turn the socket clockwise.
  7. Reconnect the rear reversing lamp connector.
  8. Tighten the plastic retaining screws.
  9. Close the underpanel cover and replace the plastic tabs.
