Replacing the room lamp (Bulb type)

OMQ4A075021
OMQ4A075022

To replace the room lamp (Bulb type), follow these steps:

  1. Press the ENGINE START/STOP button in the OFF position and disconnect the battery’s negative (-) terminal.

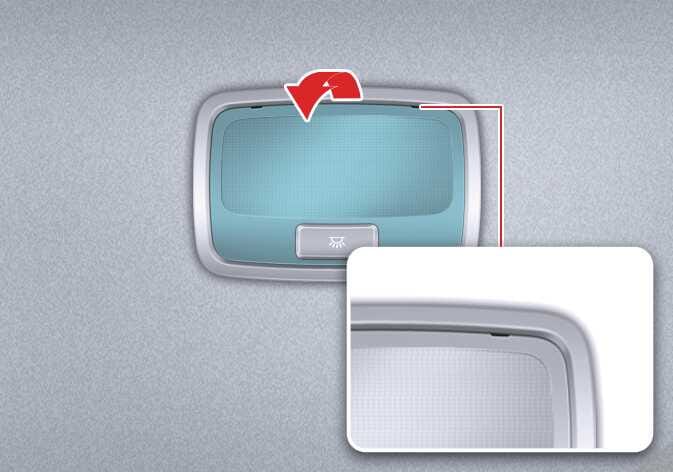

  2. Use a slotted (flat-tip) screwdriver to gently pry the lens cover from the lamp housing.

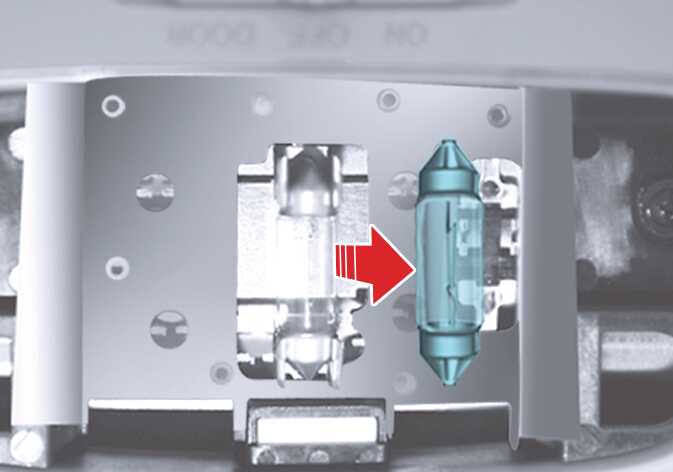

  3. Pull the bulb straight out of the socket to remove it.
  4. Install a new bulb in the socket.
  5. Align the tabs on the lens cover with the notches in the lamp housing, and lock the lens into the lamp housing.
NOTE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
