Replacing the glove box lamp (Bulb type)

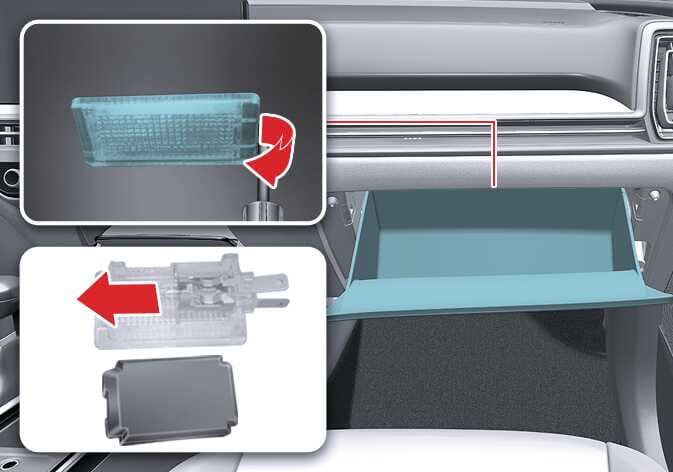

OMQ4A075055_2

To replace the glove box light (Bulb type), follow these steps:

  1. Press the ENGINE START/STOP button in the OFF position and disconnect the battery’s negative (-) terminal.
  2. Use a slotted (flat-tip) screwdriver to gently pry the lamp assembly from the vehicle interior.
  3. Remove the cover from the lamp assembly.
  4. Pull the bulb straight out of the socket to remove it.
  5. Install a new bulb in the socket.
  6. Replace the cover on the lamp assembly.
  7. Replace the lamp assembly on the vehicle interior.
NOTE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
